Industrial Operation Panel

Nodka Industrial Operation Panel is full IP65,
integrated with RAFI® BUTTON
and Rittal® CP40 Swing ARM, support Intel® Celeron™ J1900/Core™
i5 7200U.

NODKA Industrial Operation Panel,
support Rittal® CP40 Swing
ARM, has control box with industrial computer system and display. The
latest version of Operation Panel is a highly-integrated and stylish
design with user-defined function RAFI® BUTTON for selected
switches. Those key switches and an integrated E-stop button provide
exceptional user-friendly functional experience during operation. It can
be widely used in all kinds of machine tools, such as automobile manufacturing,
petrochemical, food, pharmaceutical machinery and other automatic
equipment, testing equipment and human-computer interaction equipment.

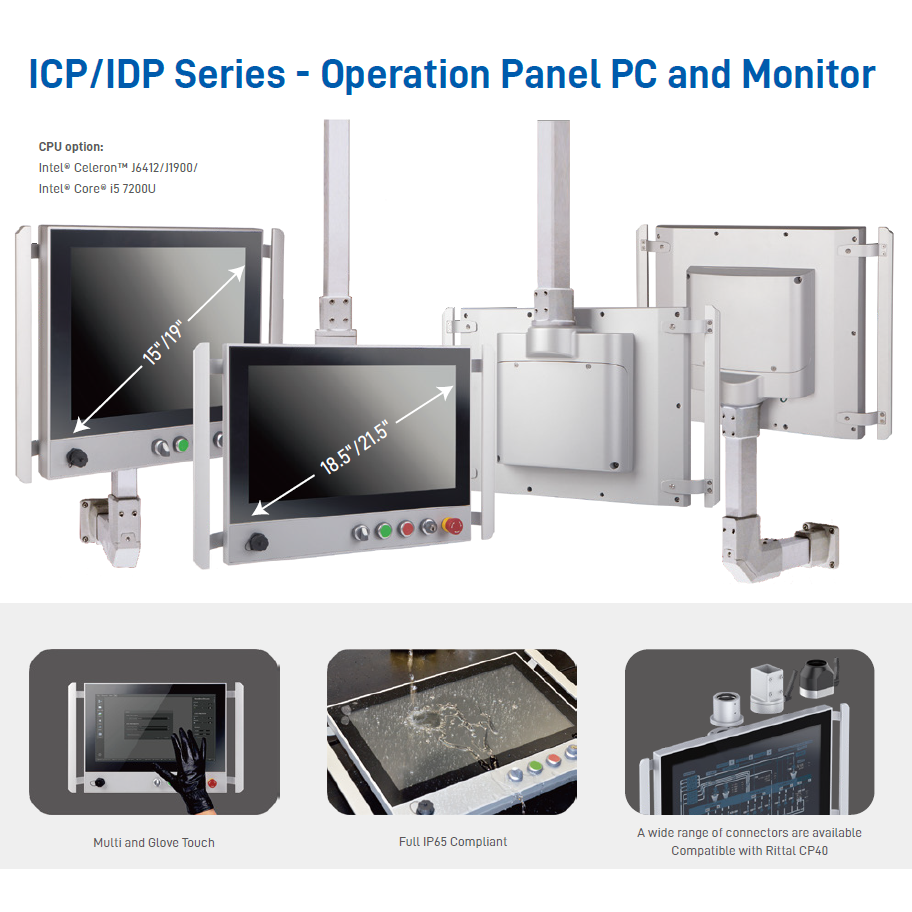

Industrial Operation Panels are available
either with a projected capacitive touch screen monitor (IDP59
series) or with additional PC system (ICP69 series).

 ICP69 series support NODKA COMLAC
INSIDE design. Interfaces has option 2 Intel gigabit RJ45
ports, 4 USB and 2 RS232/485 ports.

Size: 15", 18.5", 19", and 21.5"

Touchscreen type: Capacitive Touch Screen

CPU option:  Intel® Core™
i5-7200U, Intel® Celeron® Processor J1900

Features

Modular design, NEMA4 Aluminium Chassis, support NODKA COMLAC INSIDE design

Full IP65, Fanless design. Suitable for
industrial use.

User-defined RAFI® BUTTON.
Customized buttons are possible in small batch production

Support Rittal® CP40 Swing
ARM. Different mounting options are possible.

Wide Work Temperature range, operation
temperature from -20 up to +60°C

Flexible in custom-made Operation Panel
products

A wide range of connectors are available
compatible with Rittal CP40, optional RAFI and IDEC button (all custom-made)

Nodka's industrial Operation Panels are
custom-made with neutral from panel and multiple expansion slots to fit with
custom needs in industrial and IOT applications.

·
5+ Year Product Life Cycle

·
Original Design Manufacturer

·
Netherlands Technical Support
and services

·
Small order and delivery sample
within 8 working days
