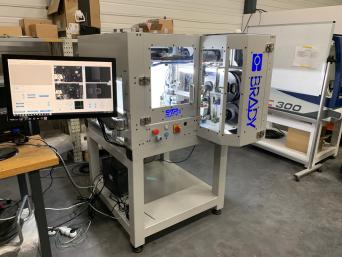

A8500 FlexCell PCB Label Printer Applicator
Automatically print & place a reliable traceability label anywhere on any multi- or single board standard PCB in 3
seconds.
•
Automatically print & place multiple unique labels on a standard PCB at a speed of 3 seconds per label.
• Place labels anywhere on a PCB with a consistency and accuracy of 0.1 mm. Easily position labels on an actual PCB
picture that can be stored for reuse.
• Print data from an ERP-system on demand, on reliable traceability labels that resist the entire PCB manufacturing process.
•
Easily connect in-line to any PCB manufacturing line with SMEMA-compliance
Description Label precision
print and apply system developed for high quality
product and component marking in PCB assembly and similar applications.
Application High volume applications such as PCB, component and product marking in automotive, electronics, manufacturing and other high quality industries.

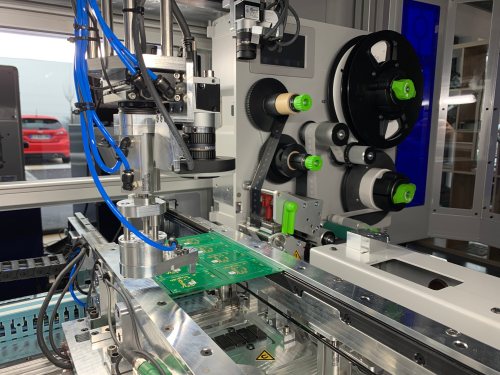

Features Conveyor with ESD belts / X/Y Etel high speed magnetic motors / Z pneumatic cylinder / identifies PCB’s from 100x100mm to 350x400mm label
vacuum management / 2 cameras for label pick-up
and PCB origin
definition
Label dimensions from
4x4mm to 50x25mm
Print technology Thermal Heat Transfer
