Toggle clamps - Straight-line action series

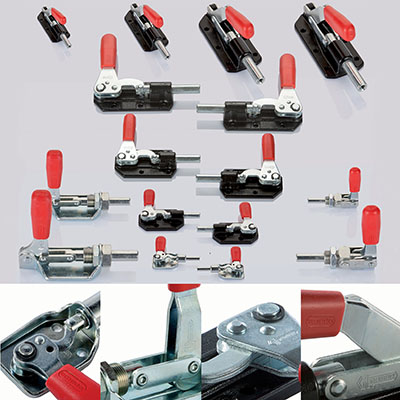

In this series, the circular movement of the control lever is transformed into a linear movement of the push rod. Excepted for models 120/AS and 300/AS, this series works and clamps either by pushing or pulling. The light version meets clamping requirements from 80 to 720 daN, while the heavy series from 120 to 4500 daN.

PERFORMANCE

For the light series: Push rod, guide sleeve and other parts in galvanized sheet steel. The main feature of the ASD/ASS models is the low force application point as well as the very reduced encumbrance in the vertical. Models 80-165-340/AS have the possibility of front mounting with an external thread that enables rotation of the control lever to the most favourable position for use. The bracket increases the range of applications.

FOR THE HEAVY-DUTY SERIES: Hot forged ASTM A105 steel base body with manganese phosphated finishing for all sizes. Riveted pins for sizes 70-160-360. Pins with bushings hardened for the other sizes. Push rod and control lever in galvanized steel.
