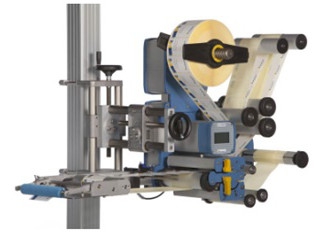

LABELERS, APPLICATION SYSTEMS Industrial labellers of the Extrem series (models 100, 200 & 300)
The "Extreme" series automatic labeling machines have been designed to apply labels 100, 200 and 300 mm wide (depending on the model) at very high speeds, while maintaining exceptional application precision. For example, the Extreme 100 can reach, under certain conditions, application speeds of 200 m/min for labels 100 mm wide. Equipped with innovative "multi-tasking electronics", the "Extreme" series labellers manage multiple functions simultaneously. The new “hybrid” motor allows optimal control of label dispensing and a near-zero tolerance range when stopping. The touch screen makes it possible to modify the settings of the machine, even if it is running Logistics Agri-food Manufacturing industries Chemistry – Pharmaceuticals – Cosmetics
DIMENSION: 696 x 384 x 707 mm (100) – 696 x 484x 752 mm (200) – 696 x 638 x 752 mm (300) WEIGHT: 30 Kg (100) – 34 Kg (200) – 43 Kg (300) TEMPERATURE OPERATING: 0 to 40° C PROTECTION INDEX: IP 55 POWER SUPPLY: 115/230 V – 50-60 Hz – 300 W ABSORPTION: 70 dB SUPPORT WIDTH: 20 to 100 mm (100) – 20 to 200 mm (200) -20 to 300 (300) PRINT WIDTH: 8 mm to 100 mm (100) – 8 mm to 200 mm (200) – 8 mm to 300 mm (300) PRINT LENGTH: 8 mm to 500 mm SPEED OF LAID : ? 200m/min (100) – ? 140m/min (200) – ? 60 m/min (300) LAYING ACCURACY: ± 0.2 mm (stopping accuracy) DIAMETER
