GESSMANN GMBH

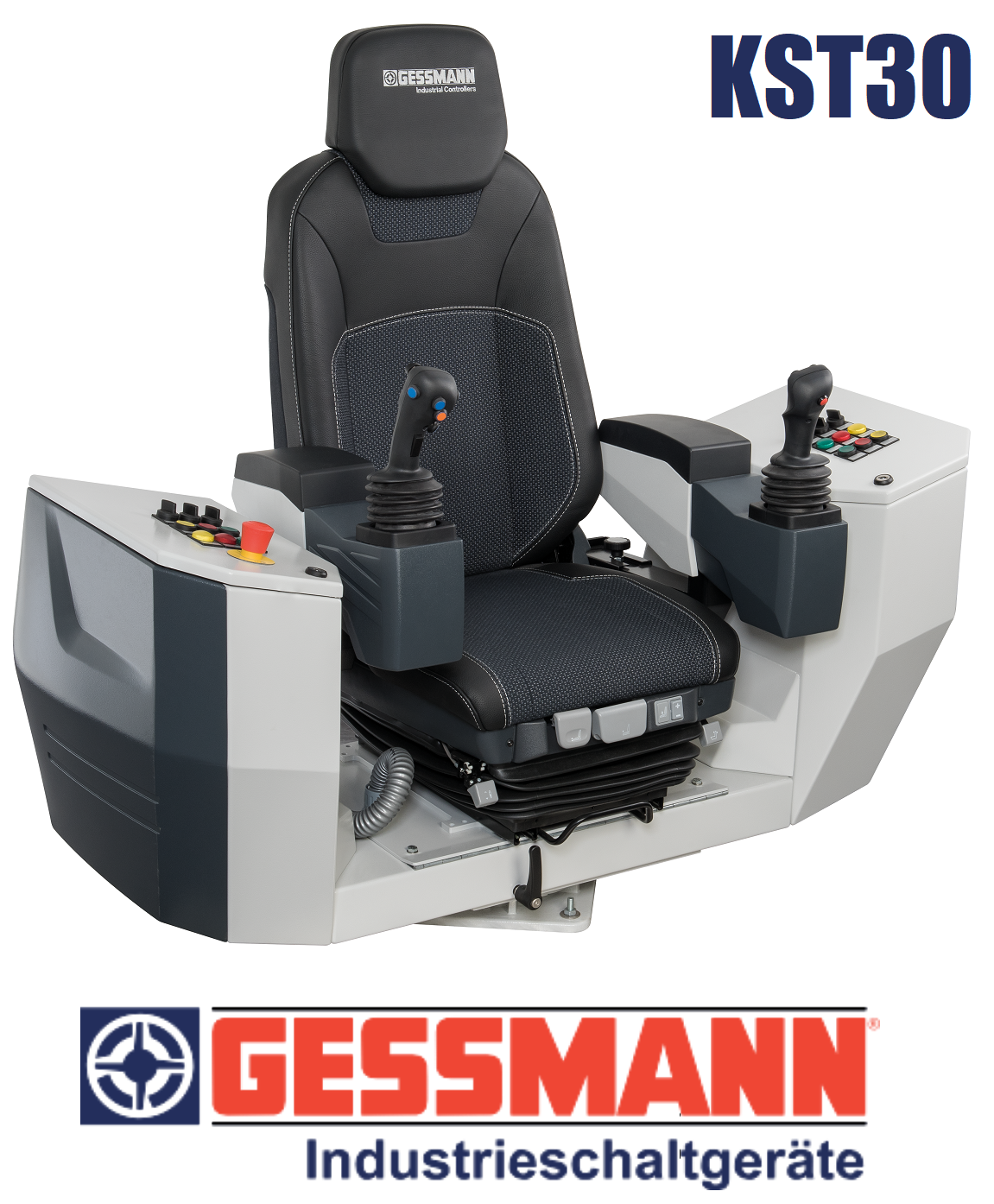

KST30 driving position
The pivoting KST30 driver's seat is designed in compliance with the most advanced ergonomic standards, which ensures a high level of comfort. The armrest consoles are attached to the seat and move with it. Thanks to the adjustment in length, height and inclination of this one, the KST30 adapts to the morphology of each one. As an option, we can add external consoles.
Armrest brackets:
The armrests covered with a plastic shell adapt in height to the different types of manipulators. Control elements can be installed here according to customer specifications.
Exterior consoles:
The exterior steel consoles are equipped with a cover on the top including a positioning system. Thanks to the two removable side walls, the terminal blocks are easily accessible. Control elements can be integrated according to the customer's needs. We also offer specific boxes fully adapted to your wishes...
Seat:
The comfortable KFS 11 seat is mechanically suspended with a hydraulic vibration absorber including operator weight adjustment. This seat is covered with a breathable fabric and comes with a headrest.
Lower base and plinth :
The cover of this lower steel base on which the seat is fixed tilts forwards. During installation or maintenance operations, the wiring, terminal blocks and cable glands are easily accessible. The rotation mechanism is play-free and locks with a notch every 3°.
Surface coating:
Undercoat and lacquer
Standard colour: RAL 7035 light gray in combination with RAL 7015 slate gray
