THERMOFLAN
SINGLE PASS PRINTER
The Single Pass printer is a simple to use and inexpensive solution to meet the printing needs of packaging: cardboard boxes, kraft bags, pizza boxes, polystyrene packaging, wooden boxes, etc.
It can print quickly at a speed of 20m2/min., making it possible to meet the needs of personalizing packaging in small series.
3 models:
- SINGLE PASS HP 1 - 1 HEAD / Maximum printing width 300 mm - Maximum support width 680 mm
- SINGLE PASS HP 2 - 2 HEADS / Maximum printing width 600 mm - Maximum support width 1200 mm
- SINGLE PASS HP 2 - 2 HEADS / Maximum printing width 600 mm - Maximum support width 1600 mm

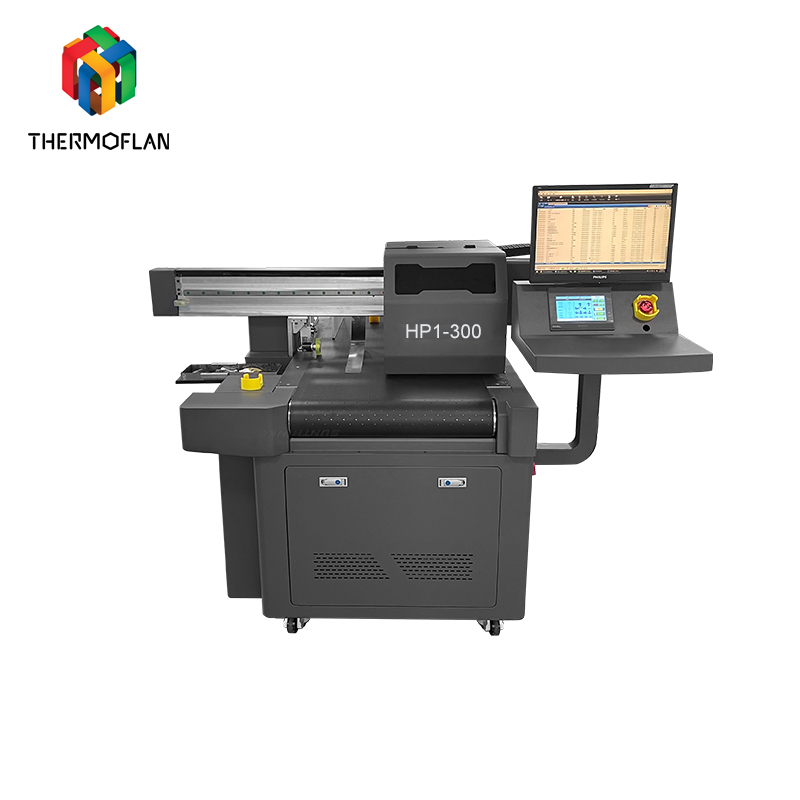

SINGLE PASS HP 1 - 1 HEAD / Maximum printing width 300 mm - Maximum support width 680 mm:
- Power 3.5 Kw
- Maximum thickness of the object 150 mm
- Maximum weight of the object 200 kg
- 1 HPFI1000 CMYK print head
- Control panel for main controls
- Low ink level indicators
- Servo motors for X and Y guidance
- Maximum speed 40 pieces / min base resolution
- Resolution 1200 x 300 dpi / 1200 x 600 dpi / 1200 x 1200 dpi
- RIP provided for printing and calculation of inks used
- Steel frame
- Size 1126 x 2150 x 1500 mm
- Printer weight 600 kg
- Temperature of the place of use 20-22°C
- 1 year parts and MO warranty (excluding print head, valve and pump)
Automatic feeder for kraft bags:
- Format 850 x 850 x 1200 kg
- Power 1.5 Kw
- Weight 100 kg
- Maximum speed 30 meters / minute
SINGLE PASS HP 2 - 2 HEADS / Maximum printing width 600 mm - Maximum support width 1200 mm:
- Power 4.5 Kw
- Maximum thickness of the object 80 mm
- Maximum weight of the object 200 kg
- 2 HPFI1000 CMYK print heads
- Control panel for main controls
- Low ink level indicators
- Servo motors for X and Y guidance
- Maximum speed 30 meters / min base resolution
- Resolution 1200 x 300 dpi / 1200 x 600 dpi / 1200 x 1200 dpi
- RIP provided for printing and calculation of inks used
- Steel frame 2650 x 2250 x 1650 mm
- Printer weight 980 kg
- Temperature of the place of use 20-22°C
- 1 year parts and MO warranty (excluding print head, valve and pump)
Automatic feeder for boxes (loading 40 cm pieces):
- Format 1900 x 1750 x 1700 kg
- Power 0.75 Kw
- Weight 600 kg
- Maximum speed 30 meters / minute
SINGLE PASS HP 2 - 2 HEADS / Maximum printing width 600 mm - Maximum support width 1600 mm:
- Power 4.5 Kw
- Maximum thickness of the object 80 mm
- Maximum weight of the object 200 kg
- 2 HPFI1000 CMYK print heads
- Control panel for main controls
- Low ink level indicators
- Servo motors for X and Y guidance
- Maximum speed 30 meters / min base resolution
- Resolution 1200 x 300 dpi / 1200 x 600 dpi / 1200 x 1200 dpi
- RIP provided for printing and calculation of inks used
- Steel frame 4120 x 2250 x 2200 mm
- Printer weight 1700 kg
- Temperature of the place of use 20-22°C
- 1 year parts and MO warranty (excluding print head, valve and pump)
Automatic feeder for boxes (loading 40 cm pieces:
- Format 1900 x 1750 x 1700 kg
- Power 0.75 Kw
- Weight 600 kg
- Maximum speed 30 meters / minute
