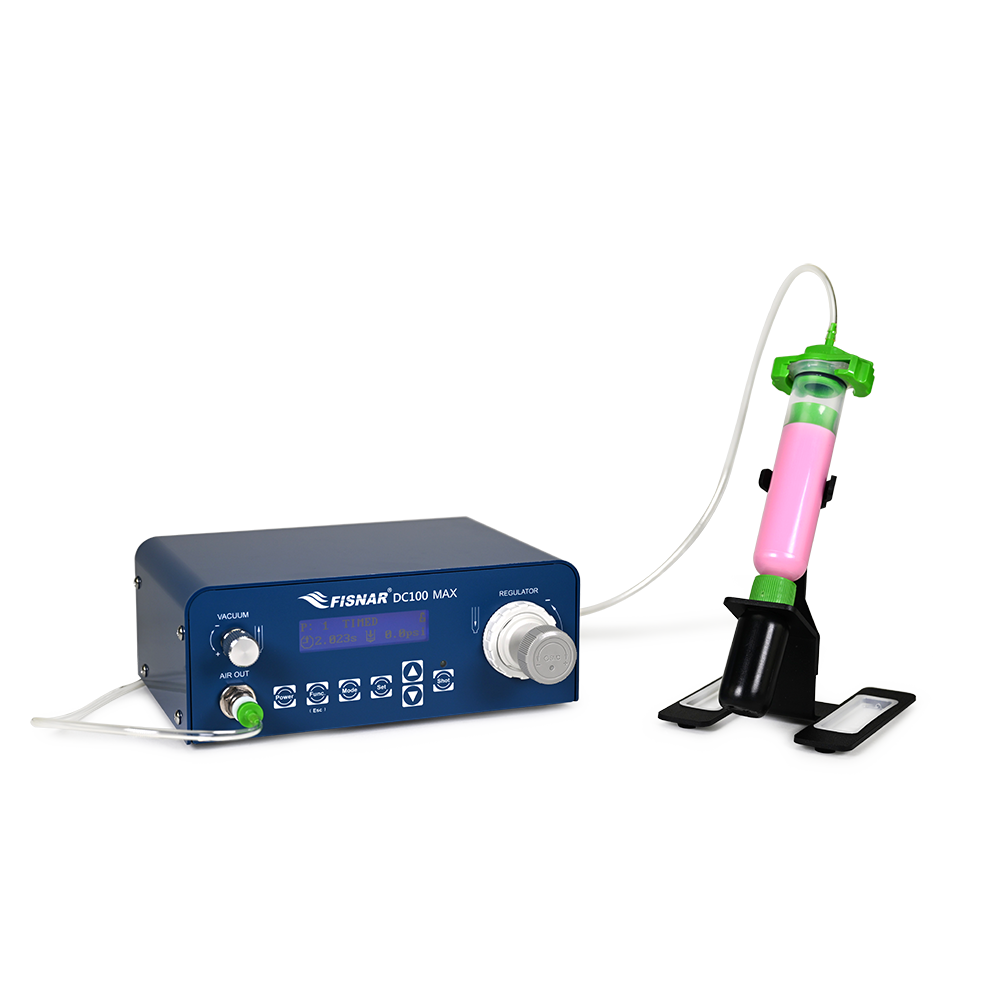

Fisnar DC100 MAX High Precision Dispense Controller
Description
Fisnar DC100 MAX High Precision Dispenser is a versatile, high precision dispenser designed to achieve exceptional levels of process stability on critical dispensing applications: from microdot deposits and precise beads, to potting and encapsulation.
The advanced user-friendly dispense software features a wide range of intelligent functions, allowing the user to maximise the accuracy, control and monitoring of their application.
Key Features of DC100 MAX:
- 16 programmable memory slots
- 5 dispense operation modes (Purge, Teach, Timed, Time+, Cycle) and sequence function
- Multilingual display (English, French, Spanish, German, and Chinese Mandarin)
- Digital display (time, pressure, vacuum)
- Dispense cycle and time counter, and limit alarm
- Pressure and vacuum alarm
- Total machine time usage and cycle monitor
- Internal pressure and vacuum calibration function
- Pressure (psi, bar, kPa) and vacuum (inHg, inH2o, kPa) measurement units
- Momentary or latching shot actuation signal
Technical details
Specifications:
| Cycle Rate | Up to 600 cycles / min |
| Dispense Time | 0.008 - 999.9 secs |
| Programs | 16 Memory Slots |
| Input AC to Power Supply | 100 - 240 VAC, 50/60 Hz |
| Output DC from Power Supply | 24 VDC - 0.75 Amp |
| Air Input | 70 - 100 psi (7 bar) max |
| Air Output | 1 - 100 psi (0.07 - 7 bar) |
| Operating Temperature | 50 - 104 °F (10 - 40 °C) |
| Relative Humidity | 20 - 90% (No Condensation) |
| Dimensions (WxDxH) | 7.53” x 7.05” x 2.83” (191 x 179 x 72 mm ) |
| Weight | 2.31 lbs (1.05 kg) |
| Standards | CE & UKCA Approved, RoHS & EMC Compliant |
