CHETOCORPORATION SA

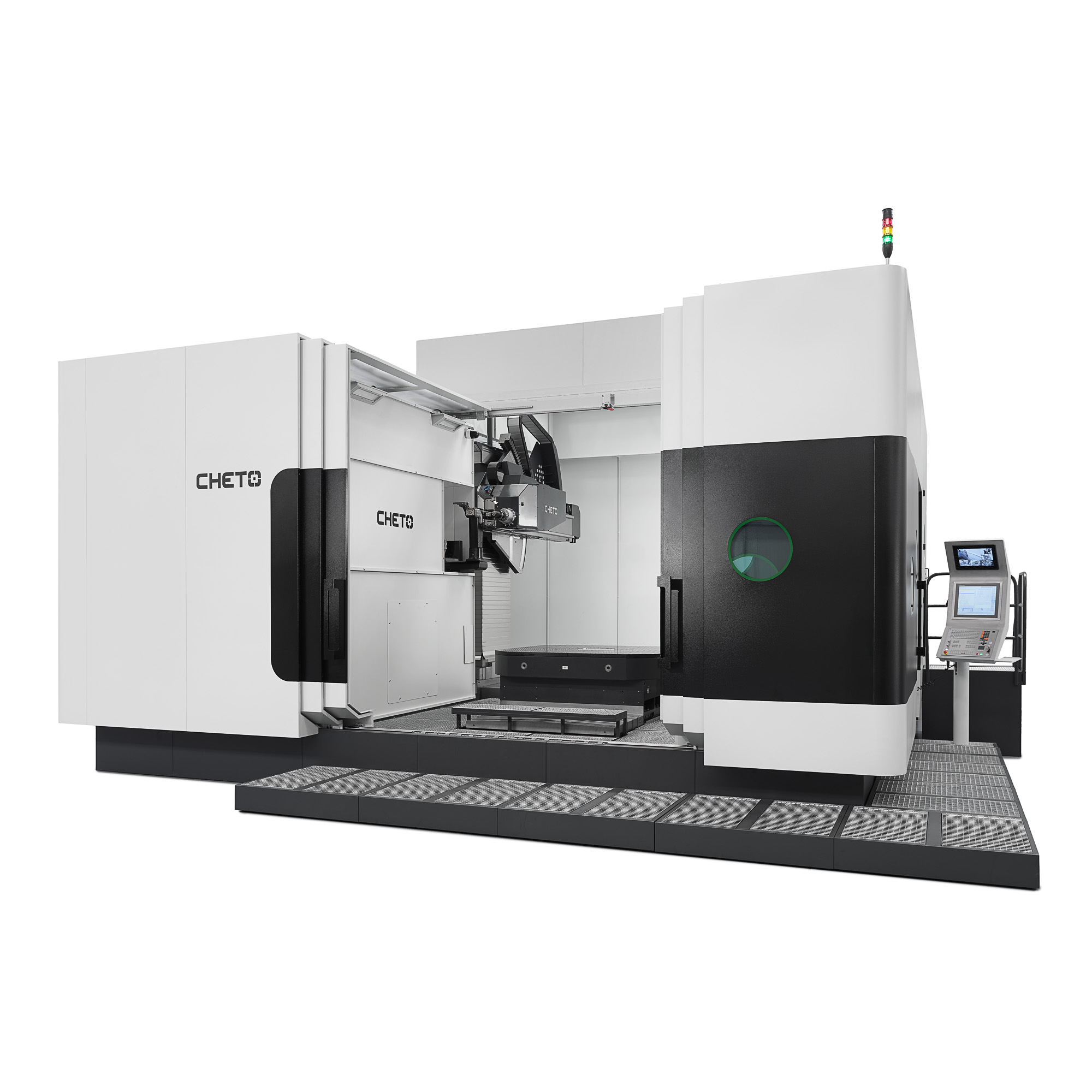

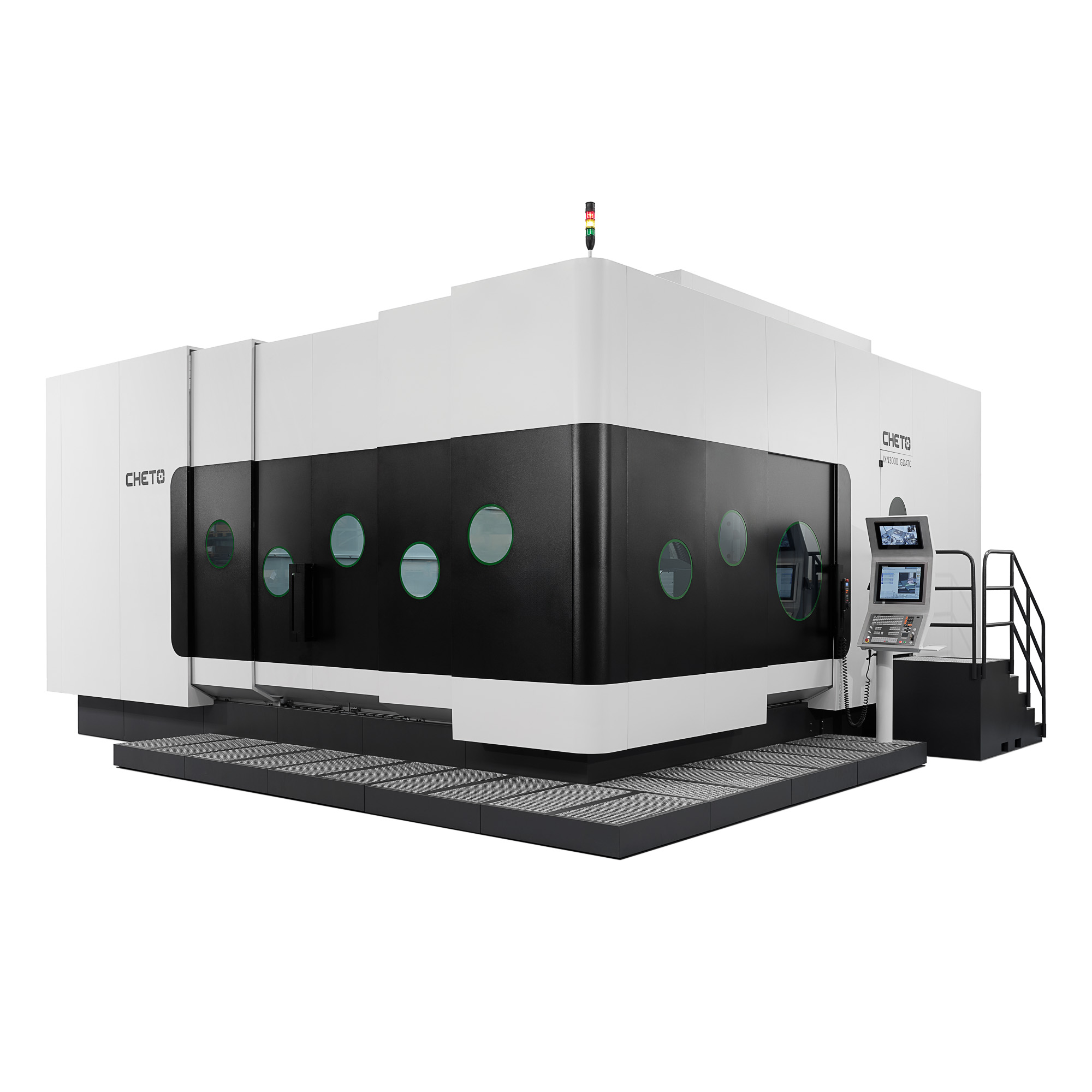

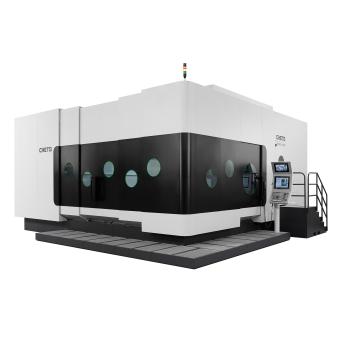

IXN 1000 | 2000 | 3000
Description
STANDARD EQUIPMENT
- CNC HEIDENHAIN TNC 640
- Electronic handwheel
- Digital drives
- Nitrogen double counterweight
- Absolute linear encoders in axes X, Y and Z
- Absolute angular encoders in axis A and B
- Automatic chip conveyor
- Kinematics / RTCP
- Rigid tapping
- Quick change between drilling/milling
- Coolant tank with automatic filtering
- Submerged pumps for oil recirculation
- High-pressure pump up to 80 bar, 100 l/min | 1,160 psi, 26.5 gal/min
- Telescopic covers in all axes (except drilling axis)
- Complete cover with doors, laminated glass windows and acrylic ceiling

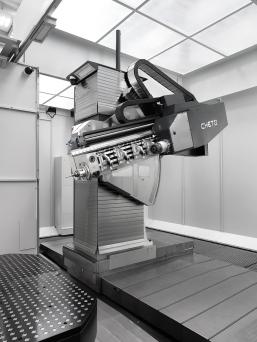

- Spindle tilting +35º/-25º
OPTIONAL EQUIPMENT
- CNC FAGOR 8065
- Wise software system
- CNC SIEMENS SINUMERIK ONE
- ATC up to 120 tools (up to 600 mm | 23.6 in tool length)
- ATC Gun drill up to 5 tools1
- Table with zero clamping system
- Automatic curtain on load/unload door
- Spindle gearbox
- Y axis = 1500 mm | 59.1 in
- W axis = 2100 mm | 82.7 in
- V axis up to 1900 mm | 74.8 in
- Oil mix collector
- Electronic touch probe and tool preset laser system
- AC for electrical cabinet
- Immersion chiller for oil/emulsion
- Pack Connectivity i4.0
Technical details
| 1000 | 2000 | 3000 | |
| X longitudinal travel |
1000 mm | 2000 mm | 3000 mm |
| Y vertical travel | 1000 mm | 1200 mm | 1200 mm |
| Z cross travel | 800 mm | 800 mm | 800 mm |
| Max Drilling stroke | 2500 mm | 2500 mm | 2500 mm |
| Drilling Capacity | Ø5-40 mm | Ø5-40 mm | Ø5-40 mm |
| Table size | 1300x1300 mm | 1600x1300 mm | 1800x1800 mm |
| Max Table load on rotation |
10.000 kg | 20.000 kg | 30.000 kg |
Administrative documents
CHETOCORPORATION SA
Machining and material removalDescription
CHETO was officially founded in 2009, when its founders launched a project to develop from scratch, an up to 7-axis deep drilling and milling machine tool, specialized for the model building industry and energy. Since then, continuous study and improvement has allowed CHETO to offer the market a versatile product with high levels of precision an...
