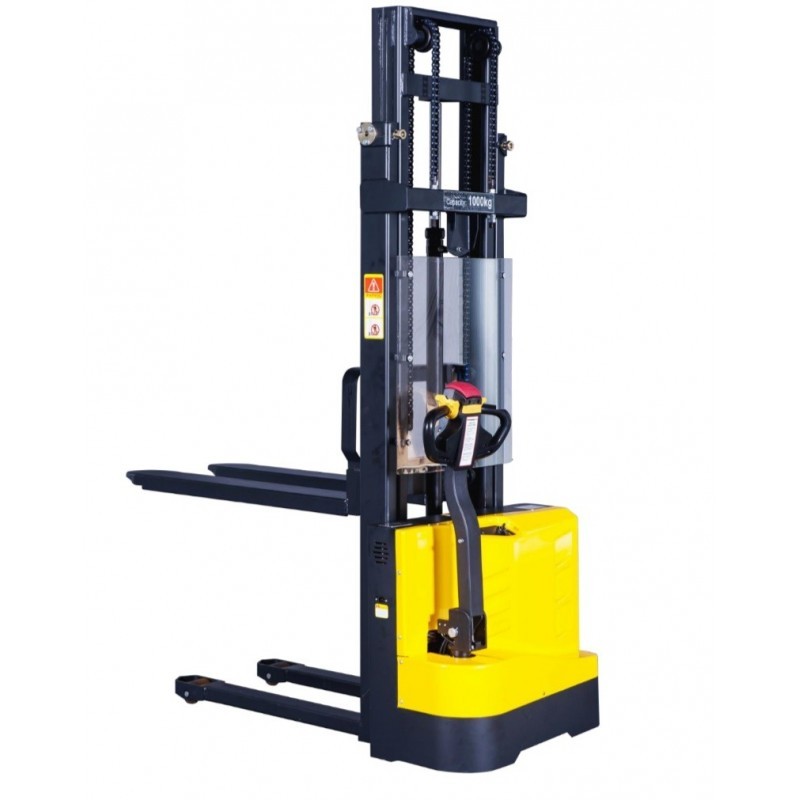

Electric self-propelled stacker WS15S-ei-2500 (1T5x2M50)
WS15S-ei-2500 electric self-propelled stacker
TOR handling equipment is a combination of time-tested modern developments and solutions. The company thus achieves the quality and ease of use of its devices. The range includes economical models and models for intensive loads.
Economy class electric self-propelled stacker with an affordable price.
The electric drive for movement is installed on the rear swivel wheel. Traction battery for 8 hours of operation. Control using buttons and levers on the operating handle. Depending on the version (lifting height), it can be equipped with single- or double-section masts.
Equipment features:
- Self-propelled
- Jackup
- 8 hours of operation

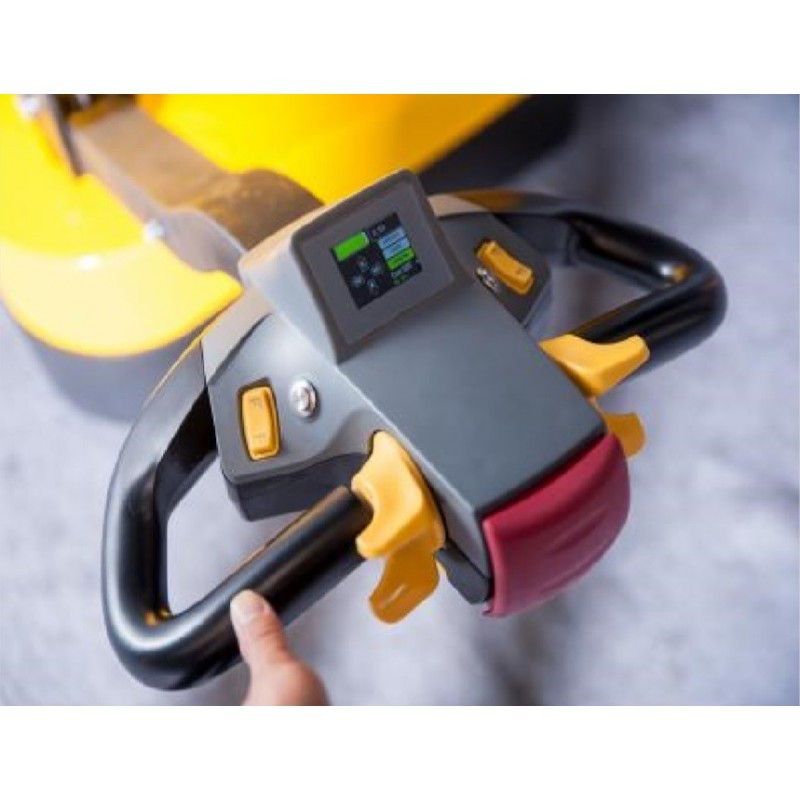

- AGM traction battery, 12v-75Ahх2
- Control on the operating handle
- Integrated charger
- Swivel wheel drive.
Technical characteristics :
Capacity, kg: 1500
Lifting height, mm: 2500
Collection height, mm: 90
Fork length, mm: 1125
Fork width, mm: 540
Others :
Battery type: GEL
Radius of gyration, mm: 1460
Brake type: electromagnetic
Wheel material: polyurethane
Drive type: electric
Lifting speed (with/without load), mm/s: 100/112
Descent speed (with/without load), mm/s: 92/85
Movement speed (with/without load), km/h: 3.5/4
Surmountable slope (with/without load), %: 5/7
Fork thickness, mm: 54
Battery, V/Ah: (12/75)х2
Lifting motor power, kW: 2.2
Travel motor power, kW: 0.65
Number of wheels: 4
Aisle width (with pallets 1000 x 1200 across), mm: 2305
Aisle width (with pallets 800x1200 in length), mm: 2230
Overall length, mm: 1750
Overall width, mm: 820
Maximum height, mm: 2990
Center of gravity, mm: 600
Ground clearance, mm: 30
Battery weight, kg: 50
Battery dimensions, mm: (260x172x214):2
Control system: STAXXA6101
Weight without battery, kg: 409
Drive wheel size, mm: 210
Swivel wheel size, mm: 180
Fork roller sizes, mm: 78
