Control devices
Description
BEAUTIFUL AND FUNCTIONAL

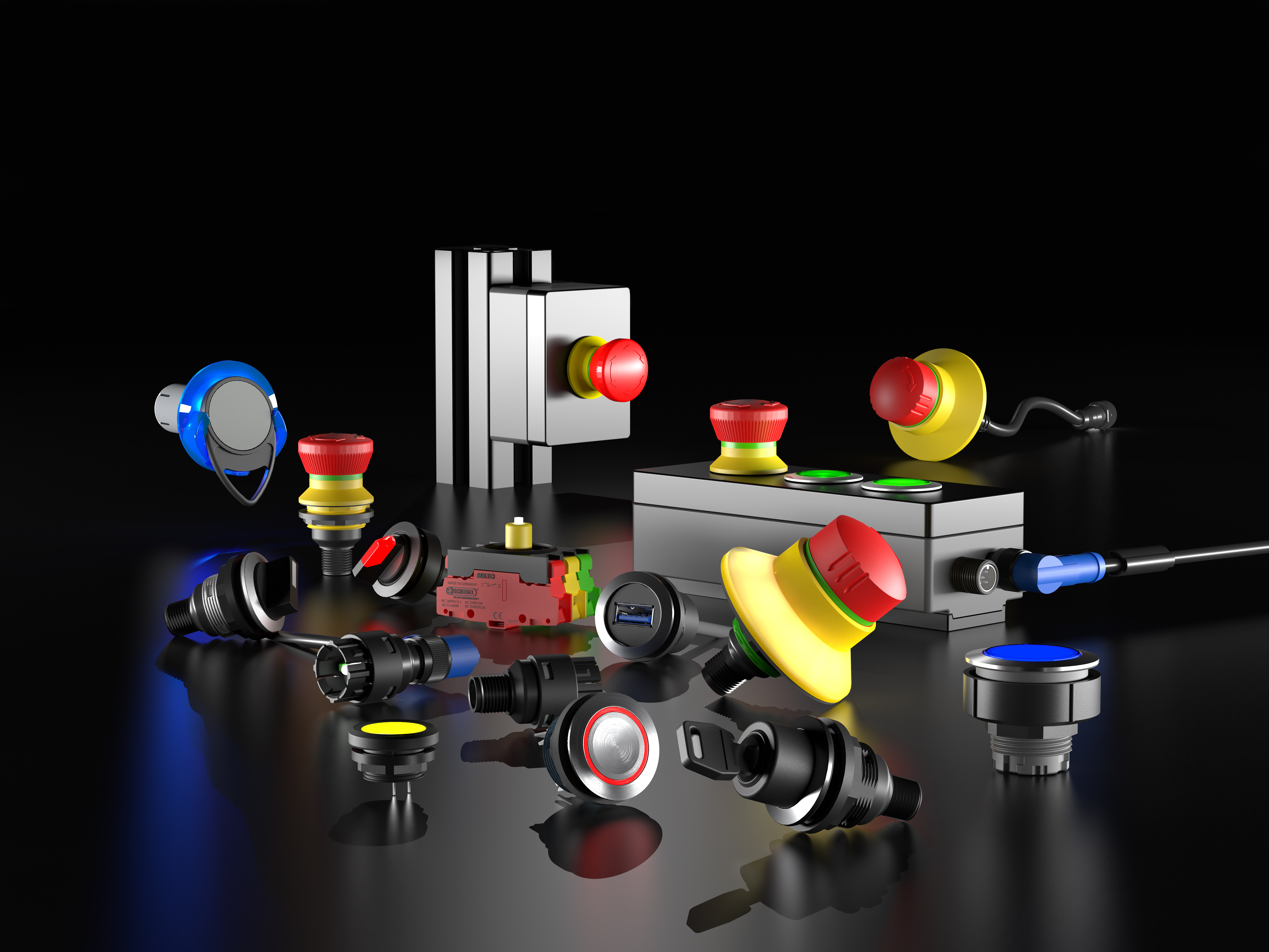

SCHLEGEL CONTROL DEVICES
Control devices from SCHLEGEL stand for highest functionality and quality as well as exceptional, multiple award-winning design. As an interface between man and machine, they are used in control panels of production plants, in the dashboards of ships, in elevators or in the cockpit of industrial vehicles.
Even in extreme conditions, such as extreme cold, dust or heat, Schlegel control aids impressively demonstrate their well-thought-out construction. Our extensive range of control aids includes a large number of push button and switch programs for front mounting as well as suitable contact blocks and bulkhead feed-throughs for different connection types.
Technical details
- 25 series for maximum design combinations and options
- Numerous mounting openings: Ø 16.2 mm, Ø 22.3 mm, Ø 30.5 mm as well as 23 x 23 mm, 24 x 24 mm, 26 x 26 mm, 48 x 24 mm
- Protection class according to IEC/EN 60529: IP65 up to the highest protection class IP69K for resistance to water penetration when cleaning with high pressure or steam jet
- Control devices also available for extreme cold situations: Tested down to -40° C
- Lighting with light-emitting diodes and incandescent lamps
Individual designations with a wide selection of symbols and texts
- Large choice of front panel colors
- USB, RJ45, FireWire, etc. bulkhead feed-throughs
- High quality materials, e.g. polyamide 6.6 / polyamide 12
- The contacts are solid hard silver; on request, also available with gold plating
