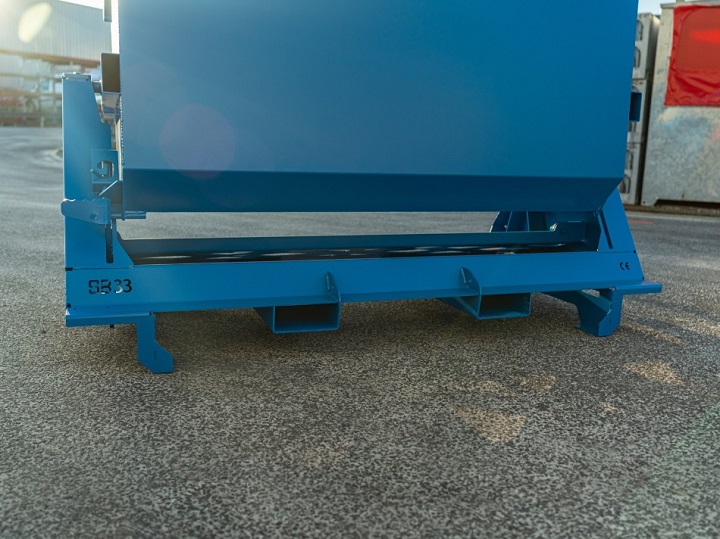

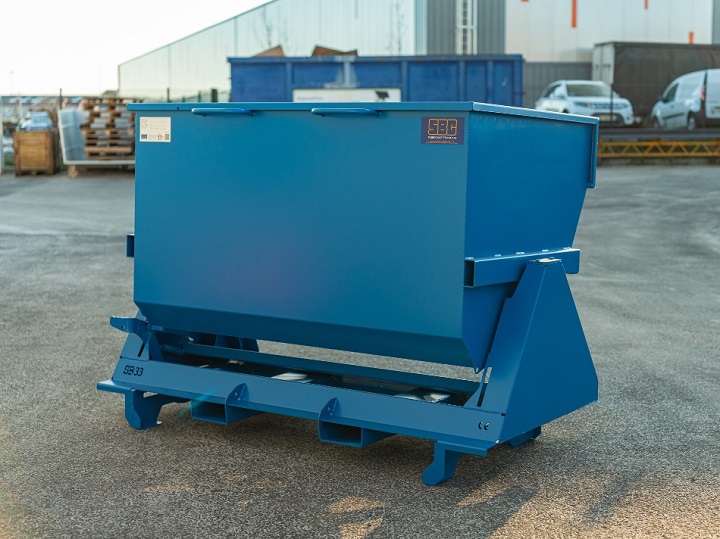

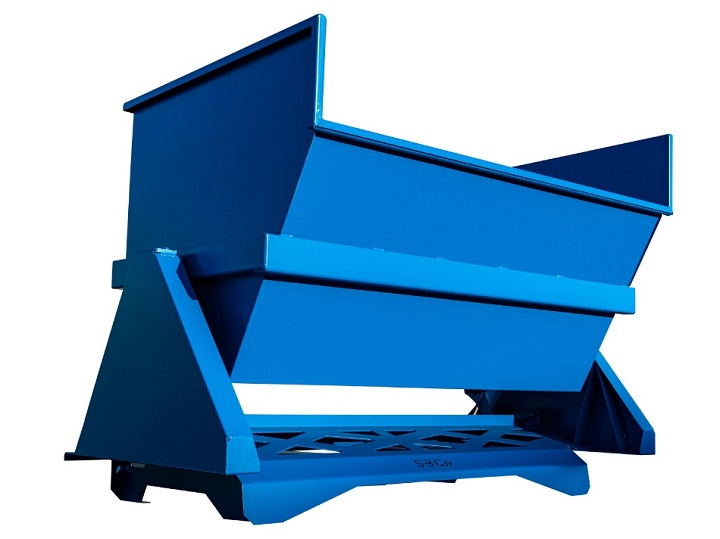

SB33 – Tipping skip on central pivot
Description
Capacity 640 to 2300 liters. Load < 1800 kg
Qualities
- Tilting skip on central axis making it easier to reset the tank after emptying.
- Flexibility and versatility of use.
- Ergonomic filling height.
- Two serial triggers:
- automatic by contact.
- by manual lever.
- Dumping angle of 30°.
- End of stroke cushioned by rubber stops.

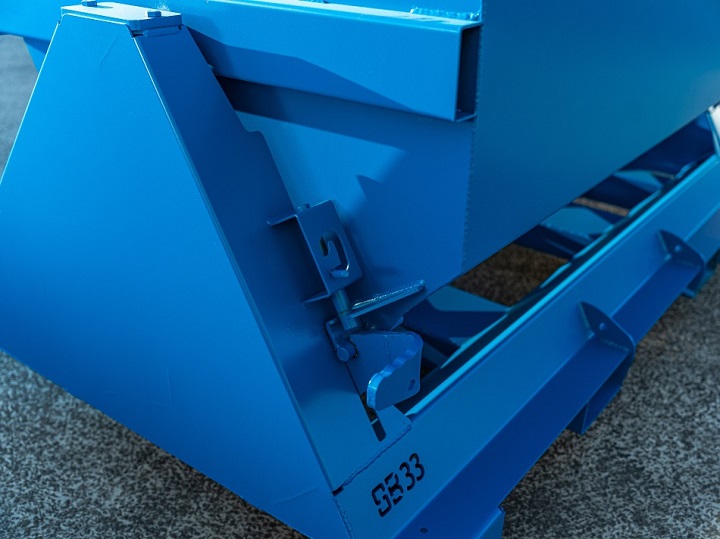

- Anti-tipping safety latch during handling.
- Travel possible by pallet truck.
- Material requiring no maintenance.
Features
- Mechanically welded sheet metal tank th. 3 mm articulated on reinforced axle of Ø 35 mm.
- Reinforcement belt in folded sheet metal on the sides and front of the tank.
- Robust mechanically welded chassis th. 5mm.
- Continuous and reinforced exterior welding at interior corners.
- Tank edges reinforced by double folding.
- Front side of the tank reinforced with a Ø 28 mm round.
- Gripping sheaths th. 5mm.
- Paint finish: 10 shades to choose from.
Options
- Aluminum/polyurethane wheels Ø 150 mm, lifting lugs, special sheaths, special center distance, markings, cover, net, tarpaulin, drawbars, sockets for gripper trolley, stainless steel, hot-dip galvanizing.
Technical details
Administrative documents
S.B.C
Handling, Logistics, Storage, LiftingDescription
A key player since 1960 in the construction of tipping skips , SBC aims to be an eco-partner in the management of your waste. We offer you a complete range of skips that have proven themselves with many customers in all sectors of activity. Our handling skips are equipped with a patented automatic release system which eliminates all manual inter...
