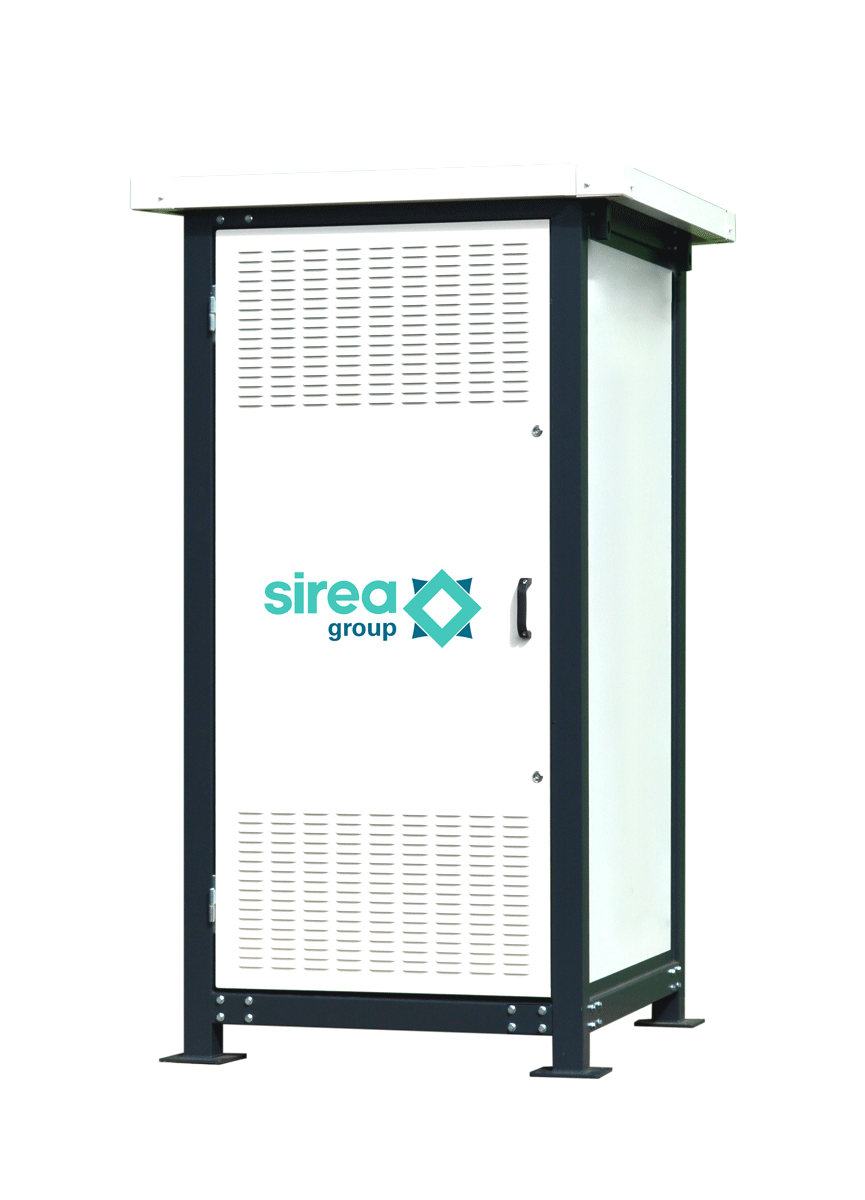

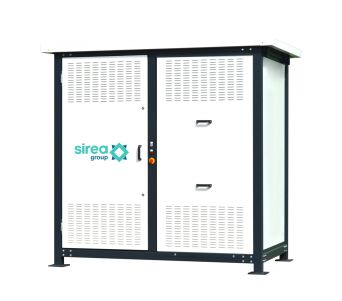

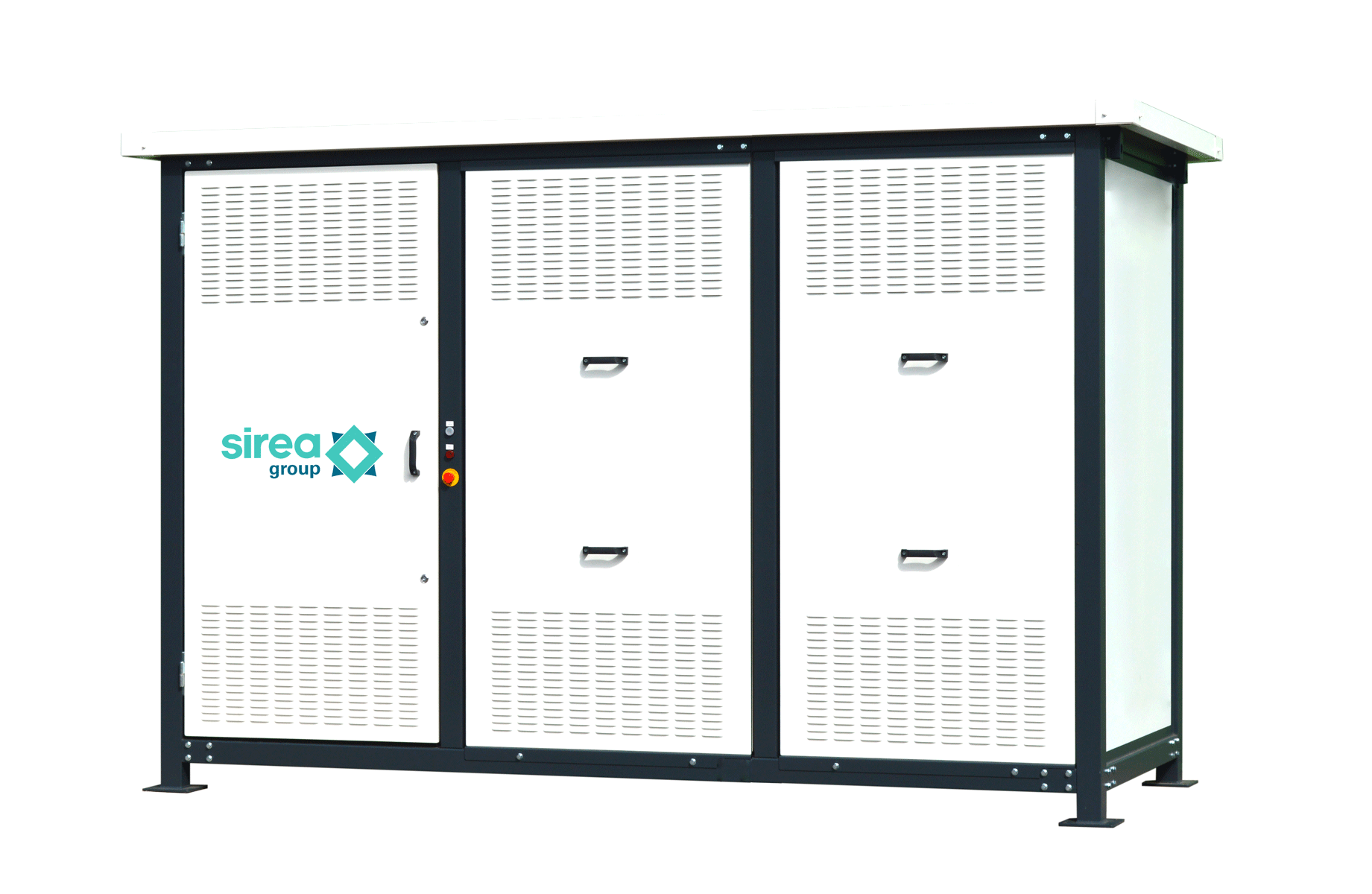

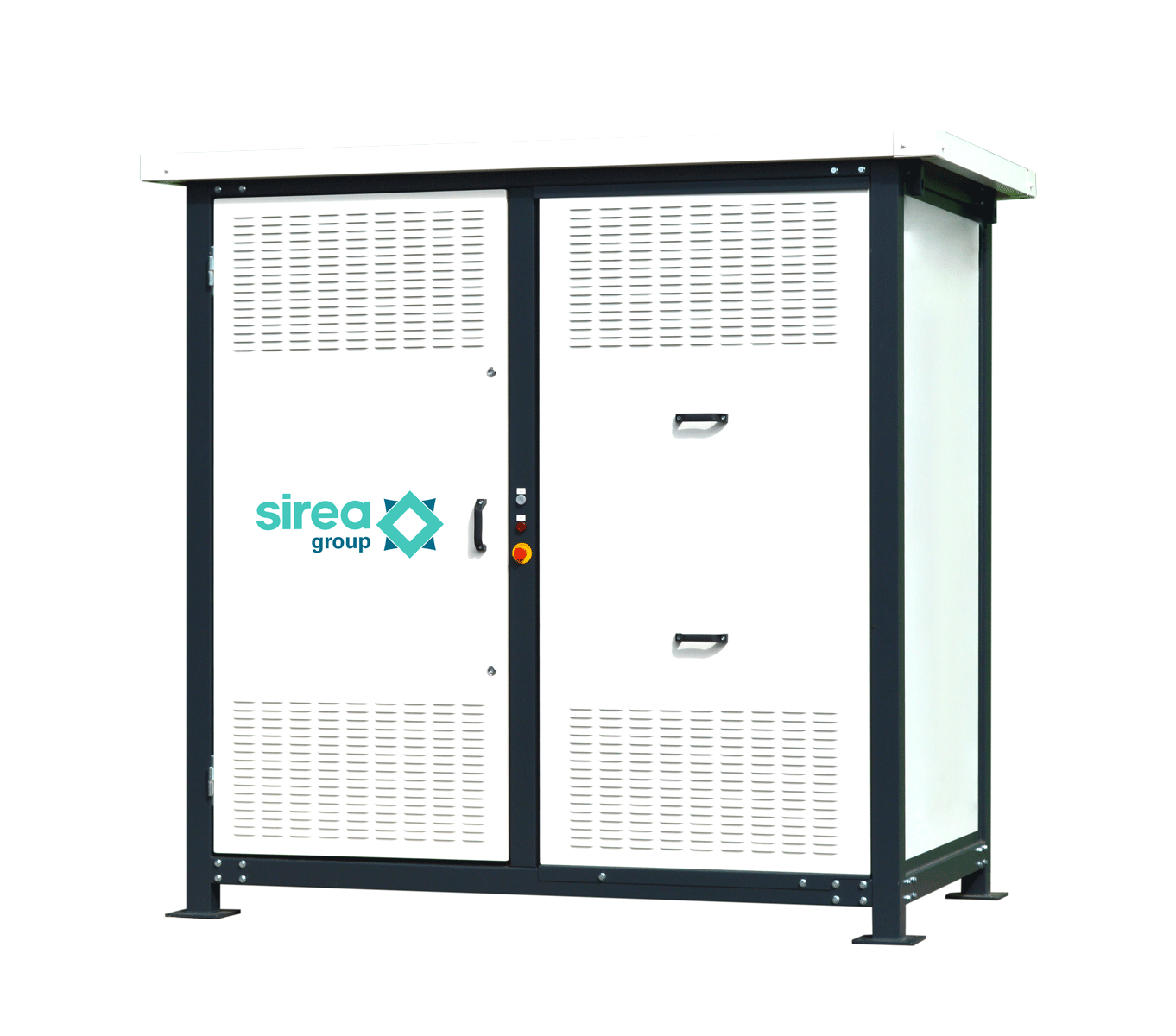

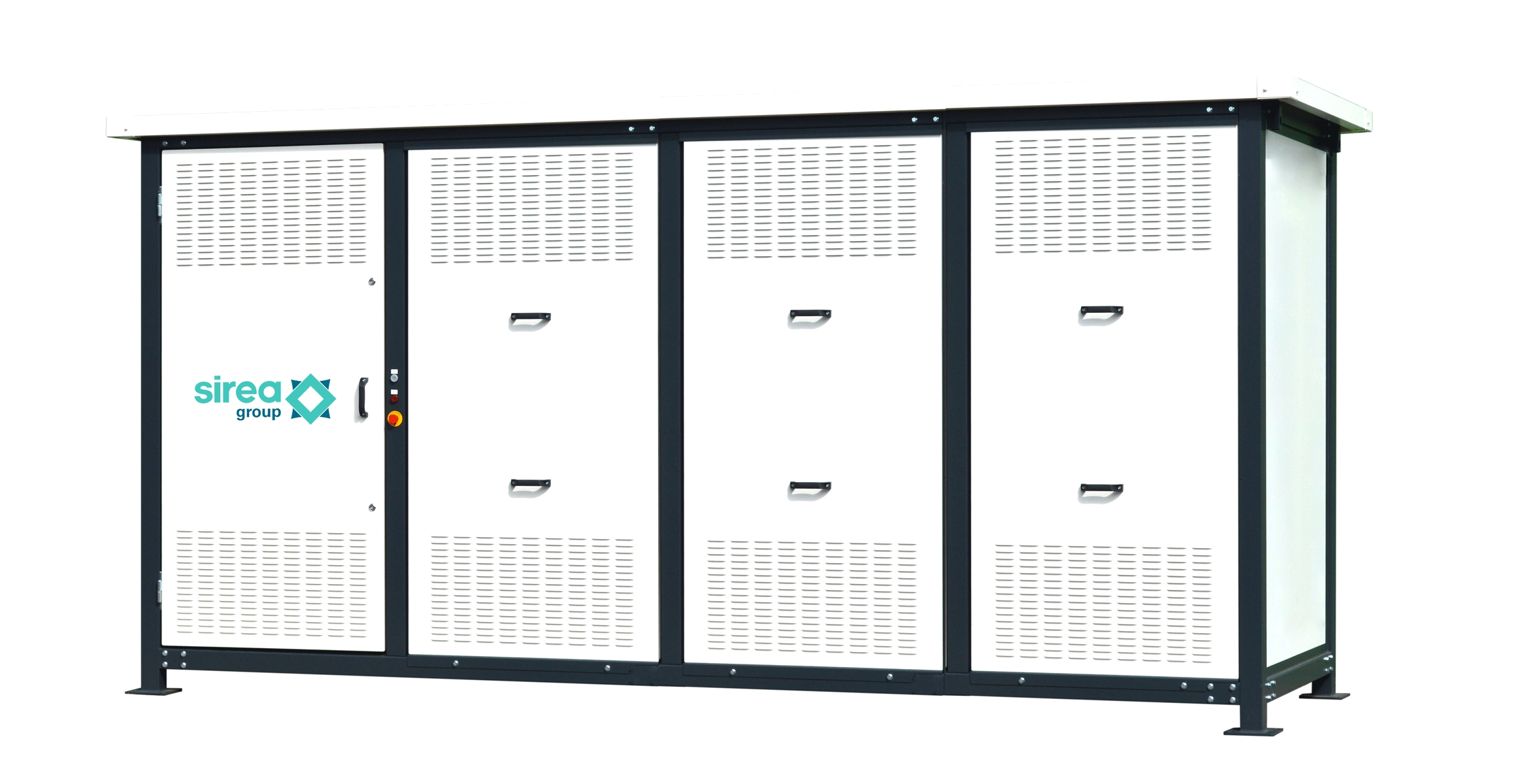

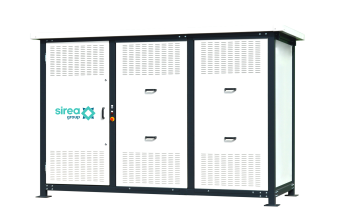

Shelter PSS - Storage on NMC lithium batteries and intelligent control
Description
Our shelters are modular systems comprising a control unit and bidirectional converters covering powers ranging from 20 to 500 kW for storage capacities ranging from 40 kWh to 1.4 MWh.
Compact and scalable design allowing outdoor installation while retaining the possibility of moving the device to a new location.
Features
- Pre-configured and flexible design,
- Integrated bidirectional converters,
- Network connection with backup function option,
- Energy manager for optimized control.
Typical applications
- Peak shaving and power calls on the demand side,
- Power supply and frequency stabilization
- Management of network overloads,
- Micro-grid applications,
- Backup or off-grid power supply,
- Management of tariff periods,
- Control functions for consumption stations
Technical details
General :
- Width from 140cm to 430cm
- Warranty: 5 years
- AC output power: from 20 kW to 550 kW
- EMS: SmartEMS from Sirea
- Possibility of direct PV connection: from 30 kWc to 210 kWc
- Storage: from 40 kWh to 1.4 MWh
- Cooling by air conditioner
