PHARAON

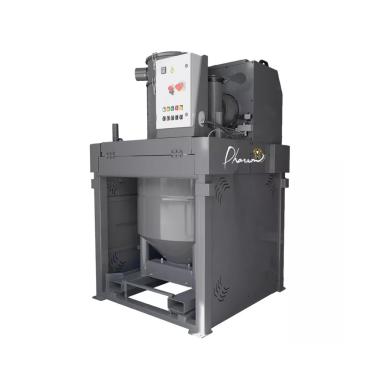

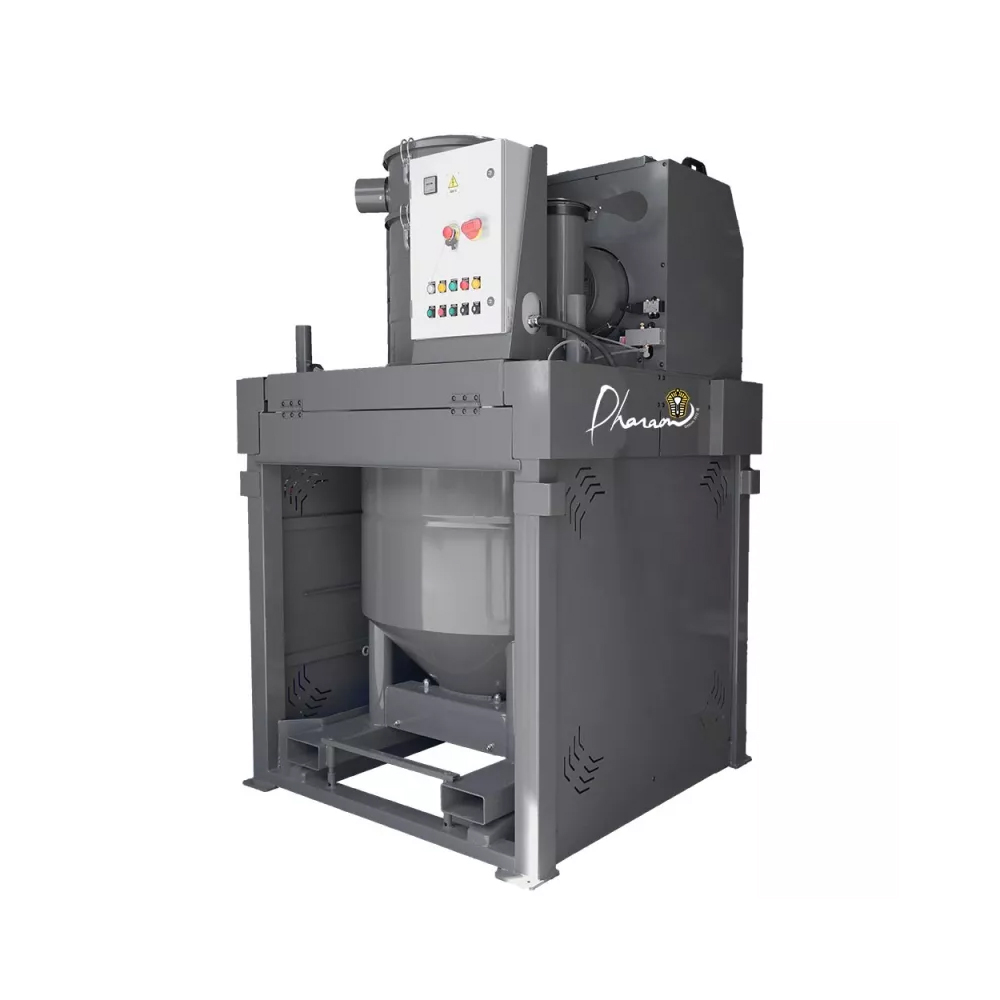

DHV22 COMPACT high vacuum cleaner
The DHV22 COMPACT industrial vacuum cleaner is designed for intensive use in demanding industrial environments. Capable of vacuuming large quantities of materials, including the most abrasive, it is ideal for long-distance operations.
Compact, reliable and extremely durable, the DHV22 COMPACT is particularly suitable for sectors such as cement , steel , materials industries and the food industry , where power and robustness are essential.
It is equipped with a 22 kW motor and a high-performance lobe pump , it generates a depression of 5,000 mm H₂O and an air flow of 1,300 m³/h , ensuring constant suction power.
The filtration system is based on an antistatic TEFLON-treated polyester bag filter , class M 1µ, which guarantees optimal efficiency. This filter provides a filtering surface area of 120,000 cm².
In addition, it is equipped with an automatic unclogging system using a pneumatic cylinder, allowing the filter to be extended and ensuring constant performance.
Its 1,000-litre tank is fitted with forklift sockets to facilitate movement and emptying operations in industrial environments.
Voltage: three-phase 400 V
Power: 22 kW
Depression: 5,000 to 7,500 mmH²O
Flow rate: 1,300 to 1,100 m3/h
Filtration: Teflon polyester bag filter, antistatic category M
Filtering surface: 120,000 cm²
Unclogging system: Automatic by pneumatic cylinder
Capacity: 1,000 L
Dimensions: 196 x 163 x 272 cm
Weight: 1,800 kg
