Measurement | SAE J1939 Compact Multi-Turn Absolute Sendix Encoders | M3668 | M3688
Energy Harvesting Technology: Electronic multi-turn encoder.

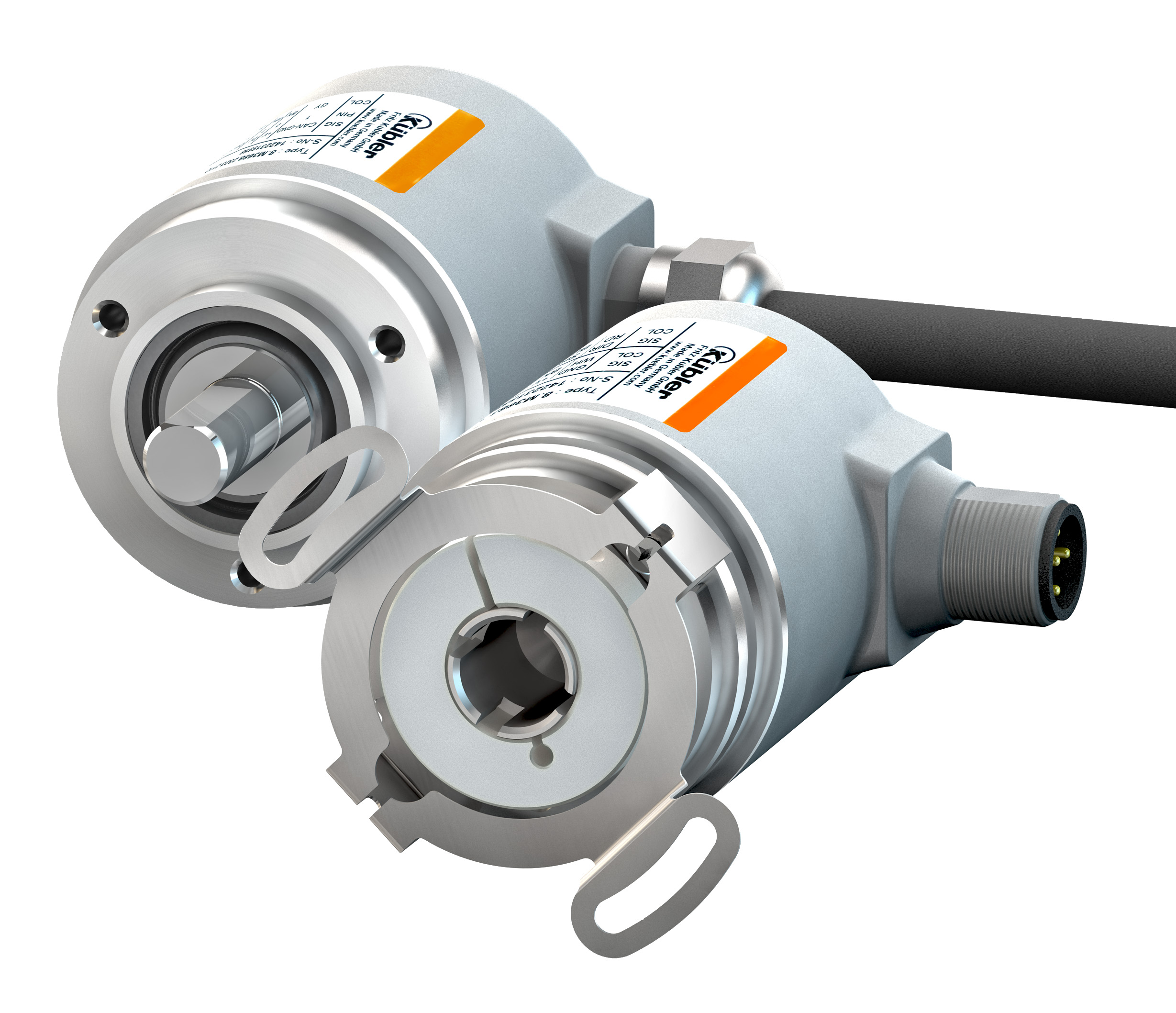

Sendix M3668 / M3688 multi-turn absolute encoders with CANopen interface and magnetic sensor technology are based on Energy Harvesting technology and are equipped without gearbox and battery. This makes them particularly robust, durable and cost-effective. Thanks to the high degree of protection IP67, the encoders ensure reliable operation in the harshest environments. The compact construction of only 36 mm allows easy mounting in tight installation spaces.
Automation in general, factory automation, lifting tables, construction machinery, mobile cranes.Reliable and insensitive > Bearings mounted in a Safety-Lock™ design for resistance against vibrations and installation errors. > The reduced number of components ensures insensitivity. IP67 protection rating and wide temperature range from -40°C to +85°C. > Thanks to Energy Harvesting technology, without gears and without batteries. State-of-the-art fieldbus performance > LSS services for configuration of node address and baud rate. > PDO variable mapping in memory. > Universal scaling function. > Management of
