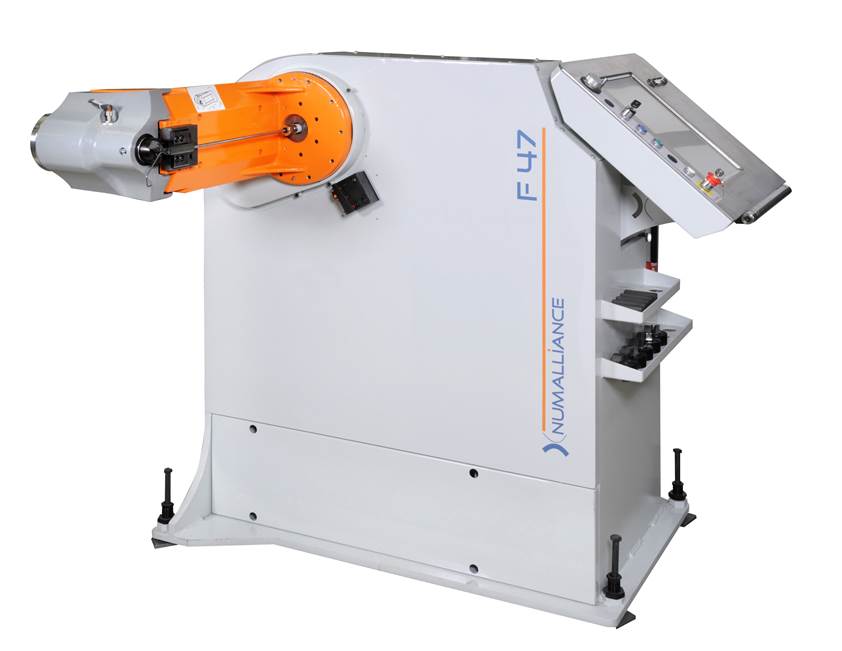

F4x
Description
Main features
- From 0.04 to 0.28″
- Wire
- 3D bending from coil
- Fast production of parts from prototypes to large series
- Compact machine, limited footprint
- Fast and easy programming of parts
- 1 bending and cutting nose enabling to cut the wire with zero straight length
- Push bending nose
- Safety enclosure for the machine and de-coiler
- Tooling compatible with Robomac 2 heads
- Tooling compatible with Zig Zag tools (Robomac)
Man / Machine Interface
- Industrial-Grade PC powered by proprietary software
- Multilingual dialog and programming interface on a 19″ touch screen
- Simulation program
- Additional I/O
- Internet connection : remote assistance and chat room
- Auto-corrective feedback from 3D-measuring devices
- Tool editor allows programming of complex parts
- Simulation tool to facilitate part set-up
- Program execution in slow motion
Technical details
Main features
- From 1 to 7 mm
- Thread
- 3D bending from coil
- Rapid production of prototype parts to large series
- Compact machine, limited footprint
- Easy and quick programming of parts
- 1 bending and cutting tool allowing cutting without minimum straight length
- Pushing bending head
- Safety enclosure on machine and reel
- Tools compatible with the Robomac 2 heads
- Tooling compatible with the Zig Zag tool (Robomac)
Human Machine Interface
- Software for industrial PCs
- Multilingual dialogue and programming interface on 19″ touch screen
- Simulation program
- Additional I/O ports
- Internet connection: remote assistance and chat room
- Self-correction from a 3D measuring device
- The tool editor allows you to program complex parts
- Simulation tool to facilitate fine-tuning
- Program progress in slow motion
