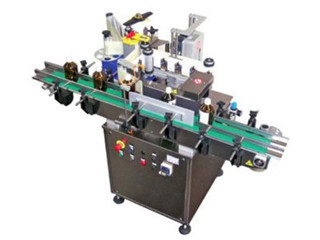

LABELERS, APPLICATION SYSTEMS System 1 “twist”
– Labeling system – for cylindrical products (full enrobing) A compact and functional solution ensuring perfect labeling of cylindrical products. The product rotation device, made up of a conveyor belt with counter plate enclosing the product, ensures the rotation of the product during the labeling phase. Thus, whatever the length of the label, it remains highly precise. The system also includes a spacing device to separate the products before labeling. Logistics Agri-food Manufacturing industries Chemistry – Pharmaceuticals – Cosmetics
LABELING SUPPORTS: products DIMENSION: 1500 x 1270 x 1300 mm POWER SUPPLY: 230 V, 50-60 Hz ABSORPTION: 700 W COMPRESSED AIR PRESSURE: 6 bars with printing unit SUPPORT WIDTH: 10 to 128 mm PRINT LENGTH : 20 to 240 mm (length of the label) TYPE OF APPLICATION: bottles and cylindrical pots APPLICATION SPEED: Production speed: 3,000 pieces/h, distribution speed: 15 m/min maxi COIL DIAMETER: 280 mm DIAMETER CHUCK: 40 or 75 mm (internal diameter of the coil)
