BARCODIS

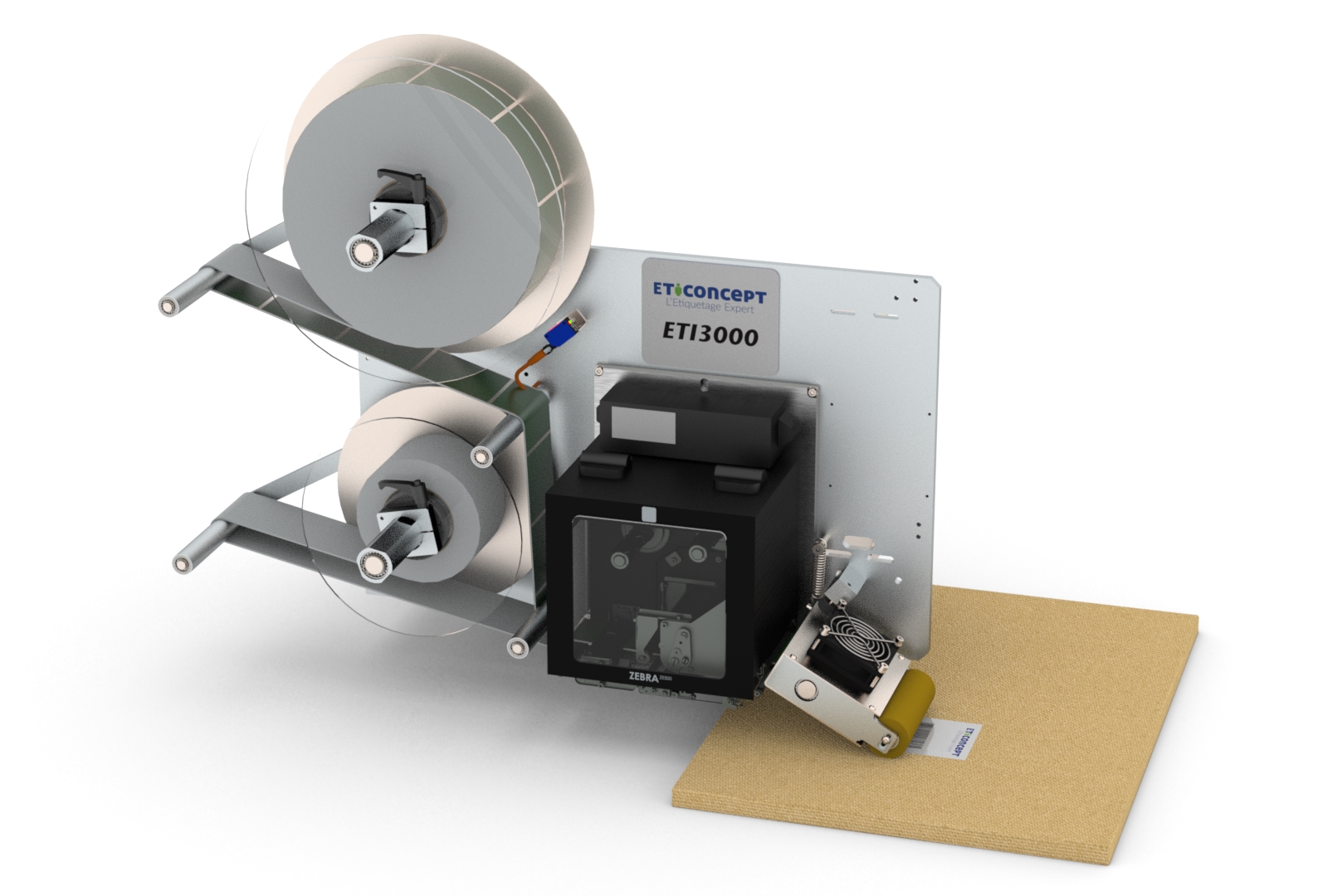

ETI 3000 V-TR
– Printing and application system – Scrolling application of labels of fixed lengths – Label application on the top or on the side This model, which is particularly efficient, allows the application of the label “on the fly” during the passage of the cardboard. Printing and application are carried out in real time, ie the last label printed is the one placed on the product. By design, it is particularly simple, reliable and robust. Finally, the technology used is more secure for operators than the use of a jack. The advantages in controlling the manufacturing process: 100% Eticoncept machines, the result of more than 15 years of experience in the field Total control of the design and components of the system Flexibility for modifications and adaptation to your needs Competitive prices A single stock for right or left machine due to its symmetrical design Base common to all current and future applicators
Logistics Agri-food Manufacturing industries Chemistry – Pharmaceuticals – CosmeticsCharacteristics of the ETI 3000® V-TR Oscillating applicator: Label holding system by integrated fan Application speed up to 50m/min Rate of up to 40 applications per min for an 80 x 120mm label (with reverse ) Size of the labels: mini 50 x 120 mm, maximum 120 mm x 400 mm Holding plate specific to the size of the label Support plate with drilling for nuts with a diameter of 50 or 60 mm Height-adjustable applicator roller Laying on the side: laying 10 mm from the bottom of the cardboard minimum (or cardboard overflowing from the conveyor) Control box with power supply, management of the
