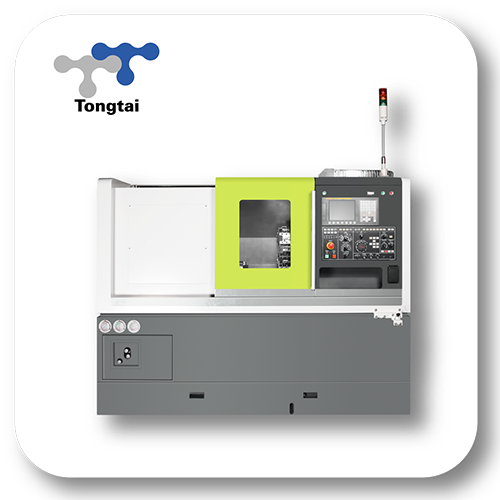

Tongtai TCS Series 2-axis and 3-axis horizontal lathe

Technical characteristics:

• Chuck and bar feed: Available in configurations with 8" or 10" chucks, and bar feed up to Ø64 mm (Ø74 mm option).
• X/Z axis travels: Up to 170 x 600 mm, providing flexibility for various applications.
• Rapid feeds: Up to 30 m/min on the X and Z axes, optimizing production cycles.
• Main spindle: Rotation speed reaching 4,500 rpm, with a power of 15/11 kW, suitable for a wide range of materials.

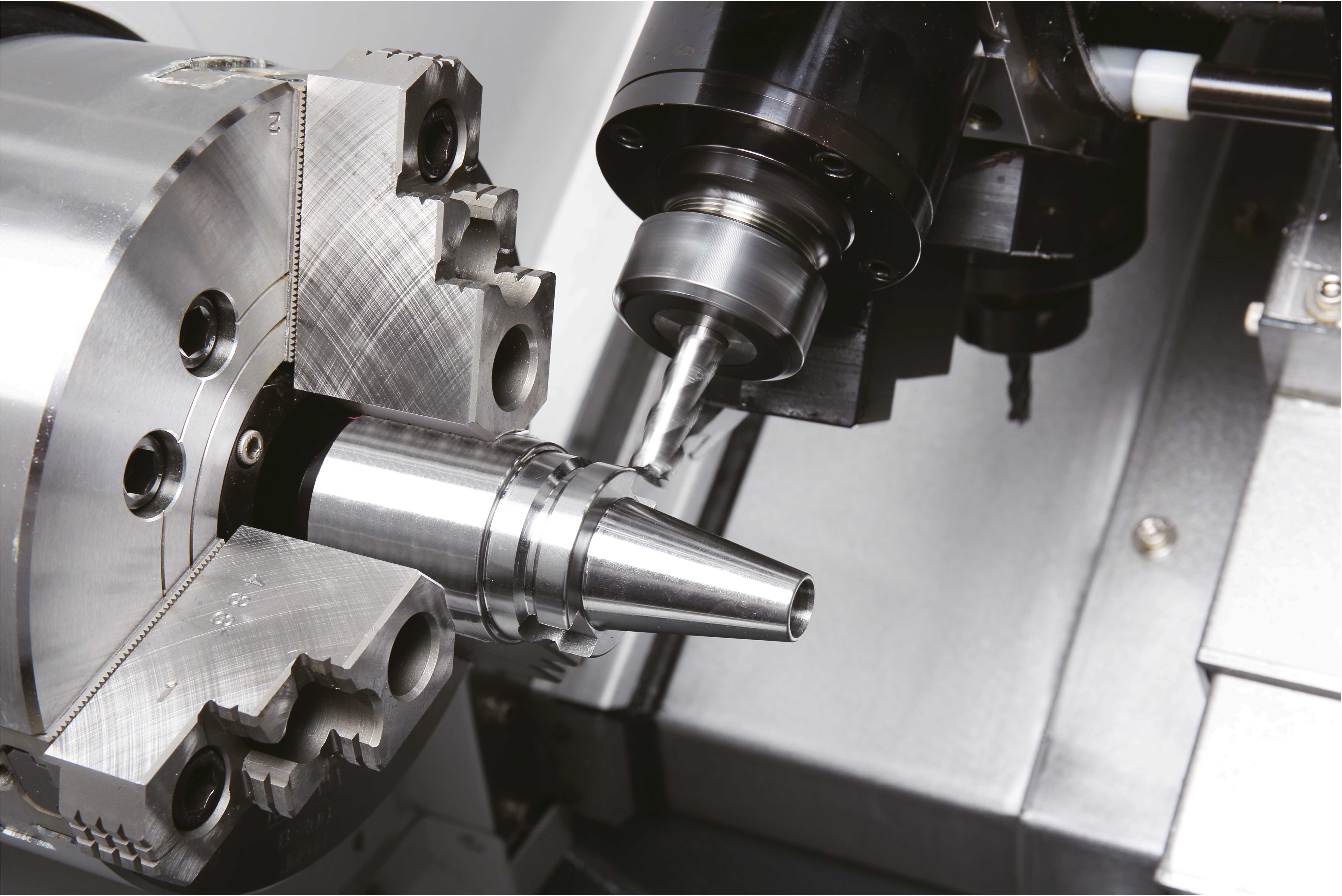

• Rotating tools (M version): Speed up to 6,000 rpm, with a power of 5.5/3.7 kW, for combined turning and milling operations.
