AC motor D16 -180W-i14

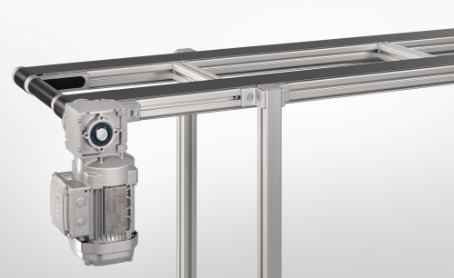

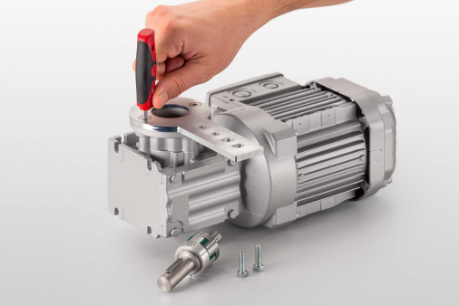

The AC motor D16 is a quality electric motor, equipped with an integrated Spiroplan® gearbox. The right-angle gearbox is available with six fixed ratios for different belt speeds. In combination with an optional frequency converter, the conveyor speed is precisely adjustable. The unit consisting of an asynchronous machine and a permanently installed bevel gearbox facilitates assembly. In addition, the aluminum housing is very light, quiet and durable. The D16 AC motor has a high efficiency IE3 according to DIN EN 60034:30-2009. The drive unit is connected to the conveyor on the right or left. The engine mounting kit 8 40 D16 is used for assembly. A few manipulations are enough to modify the position and the orientation. A safety shutter closes the unused side of the hollow motor shaft to ensure safe operation.

Drive elements With the item conveyor system you can combine motor, gearbox and synchronization according to your specifications. Since the drive components are compatible with all conveyors, you can always use the combination that best suits your transport mission and production environment. In addition, item motor mounting sets give you maximum freedom to orient the drive mechanism. Tip: Our online configuration help will allow you to find the conveyor perfectly adapted to the parameters of your project.
