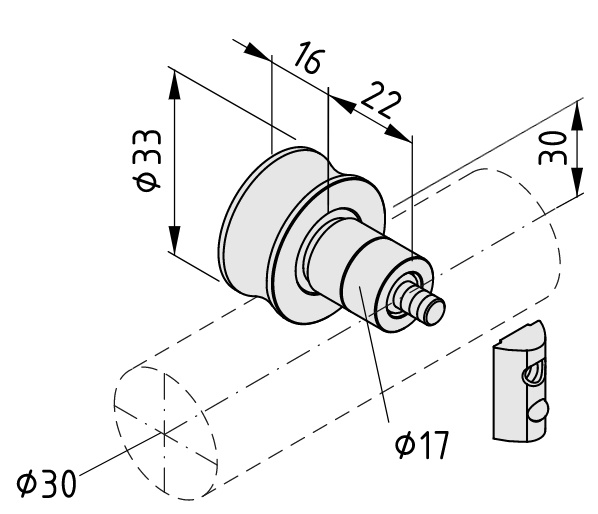

Roller set 8 D30-30

partially pre-assembled
Roller D30/D6-16, POM, ESD
2 spacer sleeves D17/D6-12, galvanized steel
Chc screw similar M6x47-DIN 912, zinc-plated steel
Nut V 8 St M6, zinc-plated steel

Modular building system for lean production

More finesse! The D30-28.5 M8 swivel bearing kit facilitates low cost karakuri and automation applications with lightweight products to transport. Thanks to fixed bearings and free bearings, a profile can easily rotate around its longitudinal axis.

More support! The continuous aluminum strip of the D30-60 double profile tube connects two integrated D30 profile tubes. The continuous connection significantly increases the bending stiffness when used vertically compared to two separate D30 profile tubes.

More movement! They are perfect for karakuri or “low cost” automation: synthetic fiber cable tool balancers . Synthetic fiber ropes are extremely strong and wrap easily around small pulleys.
