BARCODIS

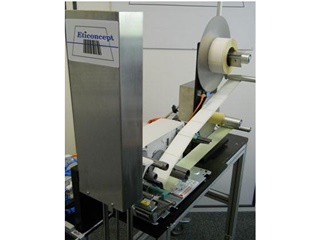

ETI 500 TB
– Printing installation system designed around an industrial printer from Zebra, datamax or Intermec (Honeywell) – Installation by cylinder and blowing – Label application on the top, bottom or side Designed, developed and manufactured by Eticoncept the real-time ETI 500 TB® system integrates a Zebra, Intermec or Datamax MClass printer and a pneumatic applicator. This system allows an adhesive label printing and an immediate application of this one by "Turbo-jet" on a moving or fixed object, with or without physical contact with this one. This system makes it possible to automate the functions of printing and applying labels on any type of packaging line. It can be used in any field of activity and more particularly in the food industry where Intermec printers, thanks to their specific functions (in particular the ''fingerprint'' macro language) are very widespread. Logistics Agri-food Manufacturing industries Chemistry – Pharmaceuticals – Cosmetics
LABELING SUPPORTS: products, boxes, pallets HOUSING: stainless steel TECHNOLOGY: Thermal and direct thermal transfer PRINTING SPEED: 300 mm/s RESOLUTION: 203 or 300 or 400 dpi SUPPORT WIDTH: 20 to 180 mm STANDARD CYLINDER TRAVEL: Travel of the applicator 320 mm TYPE OF APPLICATION: top, bottom, or side APPLICATION SPEED: depends on the size of the label and the cylinder stroke (Up to 100 applications per minute APPLICATION ACCURACY: +/- 1 mm TYPES OF BARCODES: EAN 13, UPC A and E, 2/5, 39, 128, Codabar, Code 11, Code 39, Code 93… TYPES OF TWO-DIMENSIONAL CODE: Datama
