MANUVIT
Trans1000®
Description

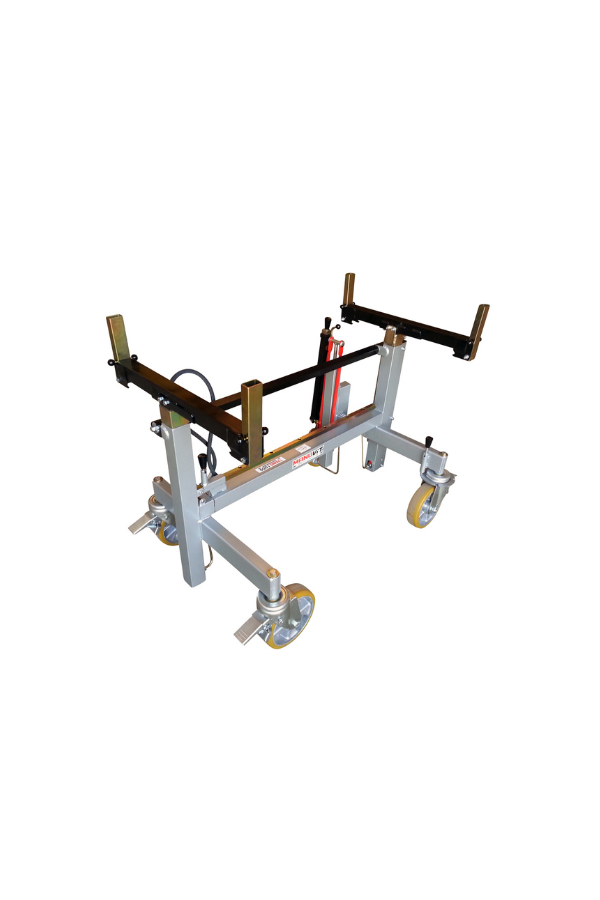

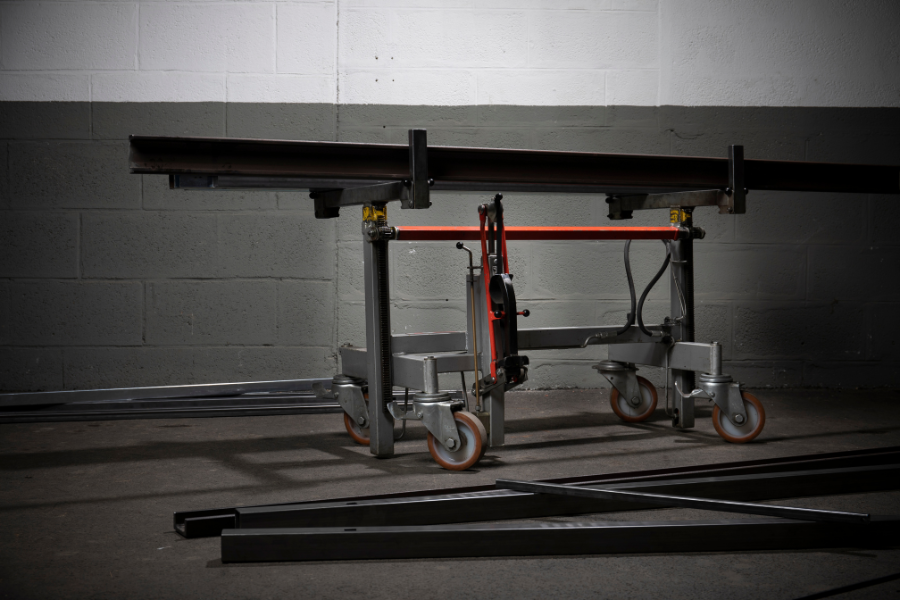

The Trans1000 ® variable geometry transfer trolley allows handling, lifting and working at an ergonomic height. It is particularly suitable for handling long loads such as bars, tubes, plates.
Performance and ergonomics

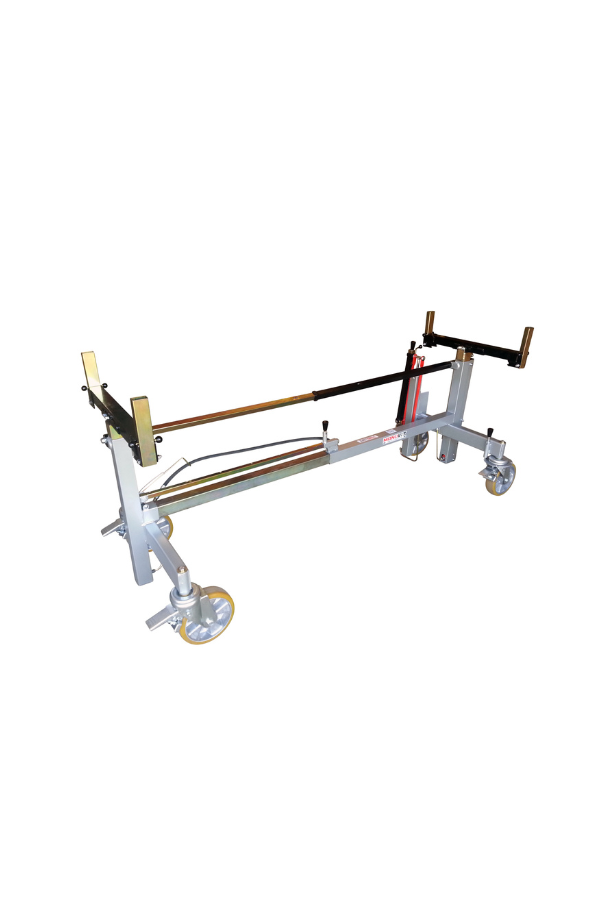

- The variable geometry makes it possible to adjust the height (770/1200 mm) and the length (1050/1860 mm) of the trolley to adapt it to the desired use.
- Lifted by 2 manual hydraulic cylinders with an arm control.

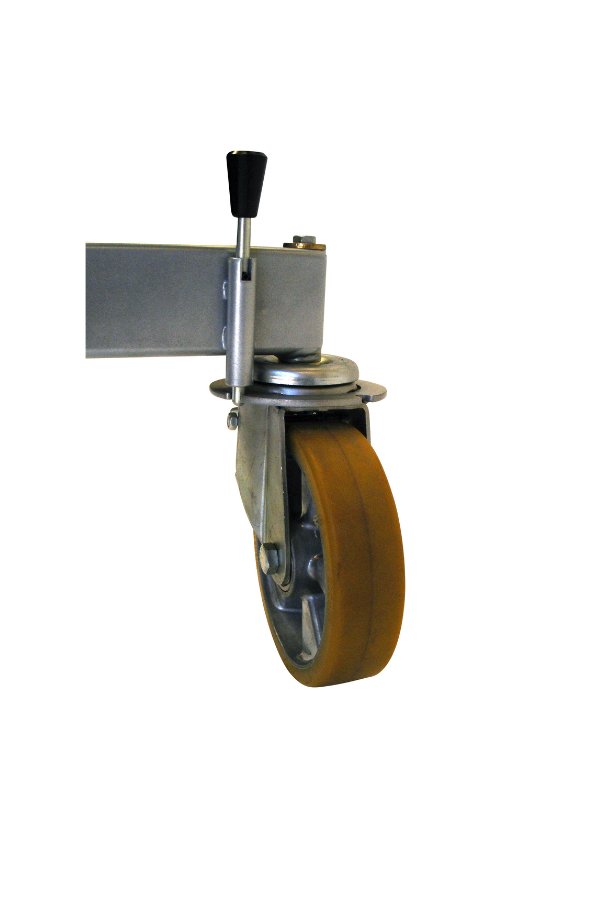

- Equipped with 3 swivel casters with brakes and one directional with locking in 2 positions for longitudinal or transverse movement.
- Telescopic lever operating the lift.

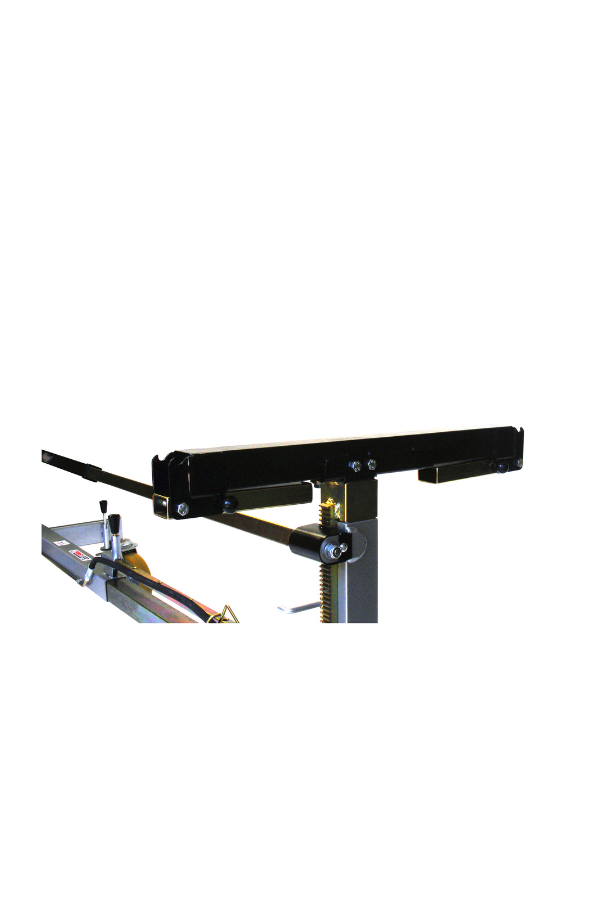

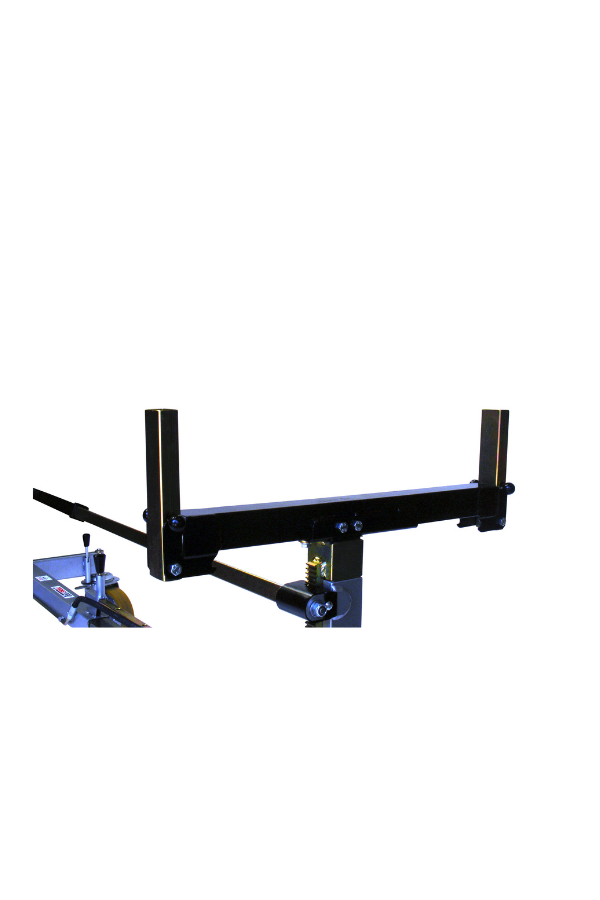

- Fitted with folding stanchions for better load retention and retractable rollers to facilitate the sliding of loads.
Options
- Wide range of standard and made-to-measure accessories depending on the load to be handled, electric lift, length up to 5 m.
Maintenance and warranty
- 3-year warranty excluding wear parts.
- Spare parts available from stock.
- Maintenance contract on request: service provided by our teams. Subscription possible for new or already in service Manuvit equipment.
Technical details
Capacity (kg) | Min/Max length (mm) | Min/max height (mm) | Dimensions HT (mm) * | Ø wheels (mm) | Bandage | Weight (kg) |
1,000 | 1050/1860 | 770/1200 | 1160x660x770 | 200 | Polyurethane | 76 |
