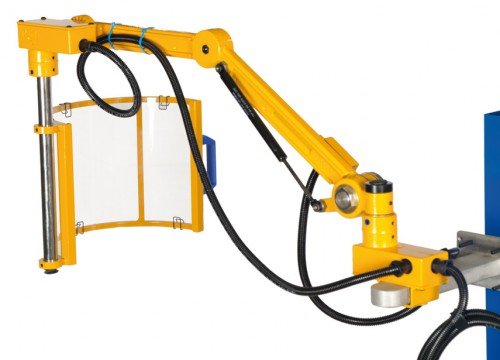

FBB - Protector for milling machine

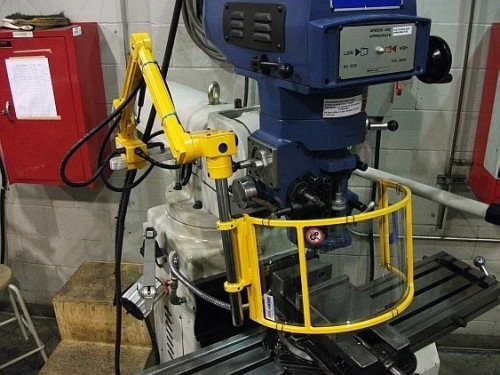

The FBB protection device is directly fixed on your milling machine to protect the operator from the rotating chuck, from the projections of parts, shavings or oils.

Thanks to the large transparent screen made of impact-resistant polycarbonate, you have a clear view of the workpiece.
The optional LED lamp illuminates your room optimally.

The two-piece arm allows the height and depth of the guard to be adjusted to your working position.
Left or right fixing of the dome.

The dome is equipped with a handle to rotate the protector laterally by 180°.
The damping system is realized by an integrated gas spring.

The FBB guard is equipped with 3 IP67 safety microswitches to stop the milling machine when the screen is open.

Protection index: IP67

Choice of model defined by: 2FBB( dome diameter )CMRH

How to calculate the dome diameter:
dome diameter = open jaw chuck diameter + 150 mm
Dome diameters (mm): 300 - 350 - 400 - 450 - 500 - 600 - Flat screen (600x400x100)

Possible option: 20W LED lamp (5W for the flat screen)
