TOR INDUSTRIES

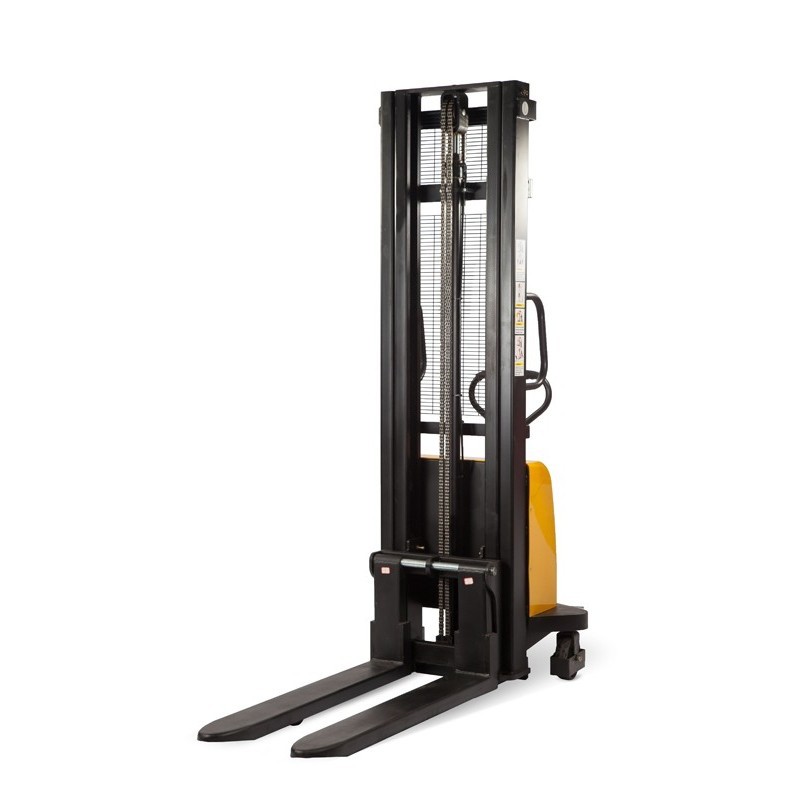

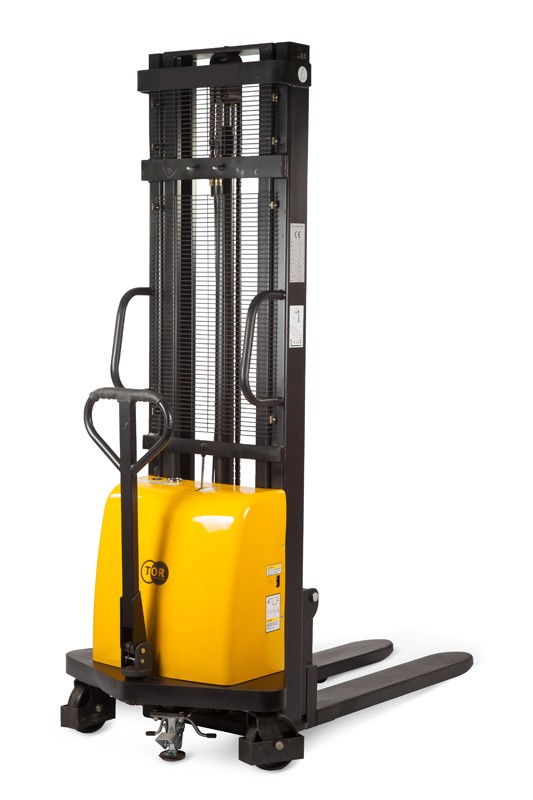

TOR DYC1535 semi-electric stacker: 1.5T/3.5M
TOR DYC 1.5T/3.5M semi-electric stacker is part of a series of stackers with electric elevation and manual movement, and lifting height up to 3.5 meters for loads of 1 to 2 tons. This version of the model lifts a load weighing up to 1.5 tonnes, to a height of 3.5 meters.
TOR handling equipment is a combination of time-tested modern developments and solutions.
The company thus achieves the quality and ease of use of its devices.
The range includes economical models and models for intensive loads.
The TOR DYC 1.5T/3.5M semi-electric stacker is part of a series of stackers with electric elevation and manual movement, lifting height up to 3.5 meters for loads of 1 to 2 tonnes.
Stackers with electric elevation significantly increase the speed of handling loads, due to the high lifting speed, unlike manual stackers, in addition, they significantly reduce the load on the operator.
An electric compressor is used to raise and lower the load. Control is carried out by a lever on the case, which speeds up the processing of goods. The horizontal movement is done manually. This stacker is recommended for warehouses with medium labor intensity. Depending on the lifting height, it can be equipped with single or double section masts.
A distinctive feature of this model is a wide range of versions. This gives you the flexibility to choose the ideal stacker without overpaying for additional lifting capacity or lifting height. This version lifts a load weighing up to 1.5 tonnes, to a height of 3.5 meters.
Main characteristics :
- Simple driving
- Traction battery 120 A/h
- Powerful lifting motor
- Integrated charger
- Additional safety support for lifting operations
- Easy-to-use foot brake
Detailed technical characteristics can be found in a section below. When choosing a stacker, pay attention to the key performance features that matter to you. If you need expert advice, please use a convenient method of communication to obtain comprehensive information on choosing a stacker.
Technical characteristics :
Capacity, kg: 1500
Lifting height, mm: 3500
Collection height, mm: 85
Fork length, mm: 1150
Fork width, mm: 550
Others :
Turning radius, mm: 1326
Maximum lifting height, mm: 4050
Lifting speed (with/without load), mm/s: 130/230
Lowering speed (with/without load), mm/s: 500/400
GEL battery type
Battery, V/Ah: 12/120
Lifting motor power, kW: 1.6
Overall length, mm: 1950
Overall width, mm: 1100
Center of gravity, mm: 500
Ground clearance, mm: 84
Height in folded position, mm: 2320
Drive wheel size, mm: 160
Fork roller size, mm: 54
Weight, kg: 385
