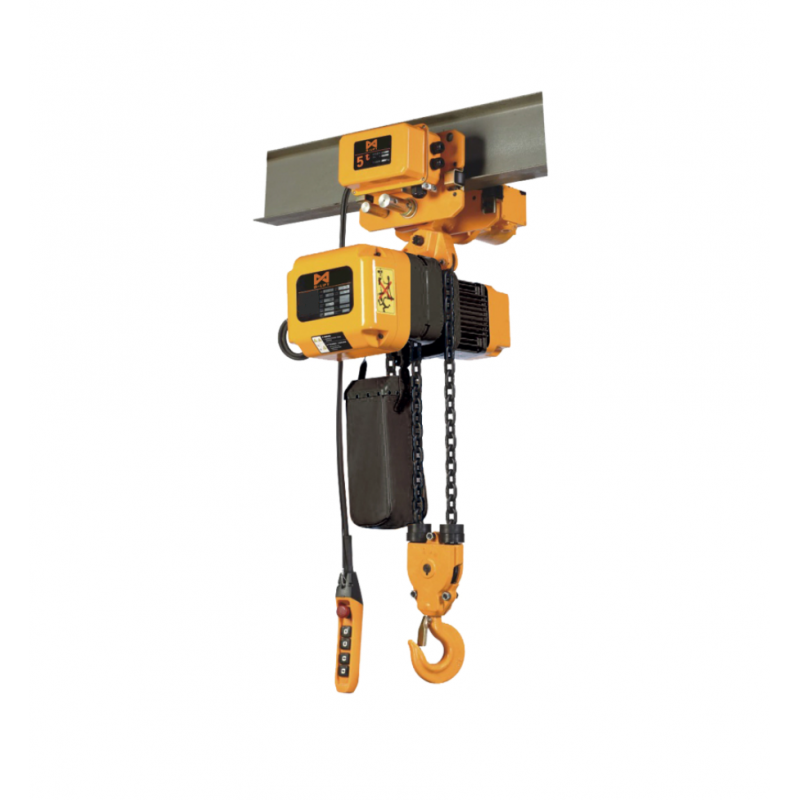

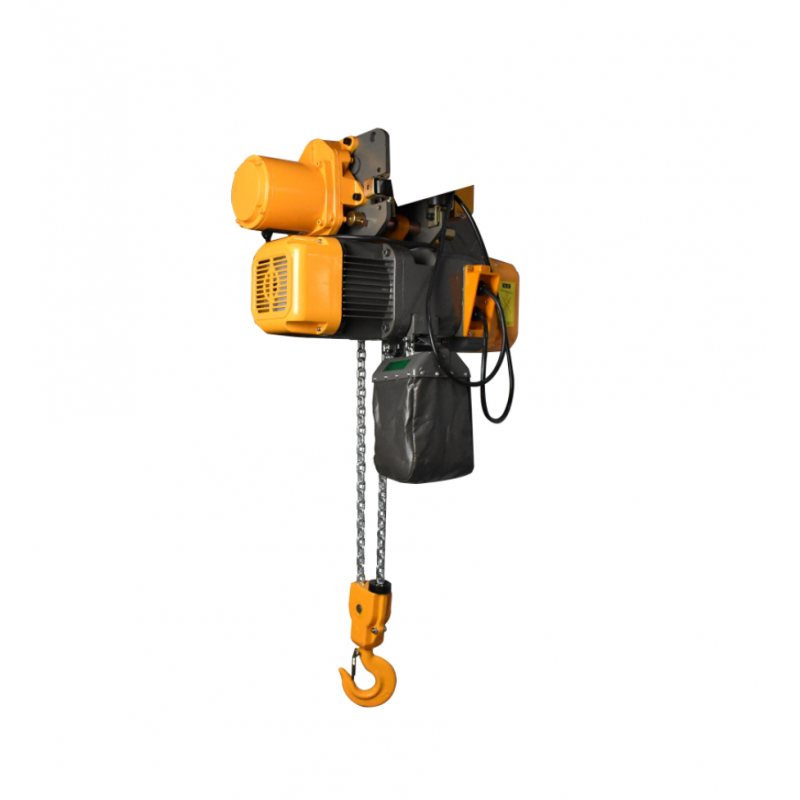

HHBDII 01-01T Two Speed Mobile Electric Chain Hoist (1T x 6M/380V)
Model Features:
To use this hoist, you must be authorized as an electrician to work with professional lifting equipment with a voltage of 380V.
Tor Industries presents HHBDII - new generation of electric chain hoists for professionals with emergency overload protection (slip clutch) and with top and bottom stop.
The HHBDII electric hoist is a reliable and modern professional hoist that does not use a cable to lift loads, but a steel lifting chain. Advantages of HHBDII hoist compared to wire rope hoists: compactness, absence of drum, ease of installation, long chain life, no load deviation, easy chain replacement. The standard version of the HHBDII is equipped with an electric trolley, so it can be mounted on an appropriate numbered H-beam section and move the hoist and loads horizontally.
Technical characteristics :
Lifting capacity, t: 1
Lifting height, m: 6
Lifting speed, m/min: 7.1/2.4
Voltage, V: 380
Engine power, kW: 1.5
Remote control cable length, m: 4.5
Double T beam (width) 58-170 mm (IPE100-IPE360)
Weight, kg: 51
