TOR INDUSTRIES

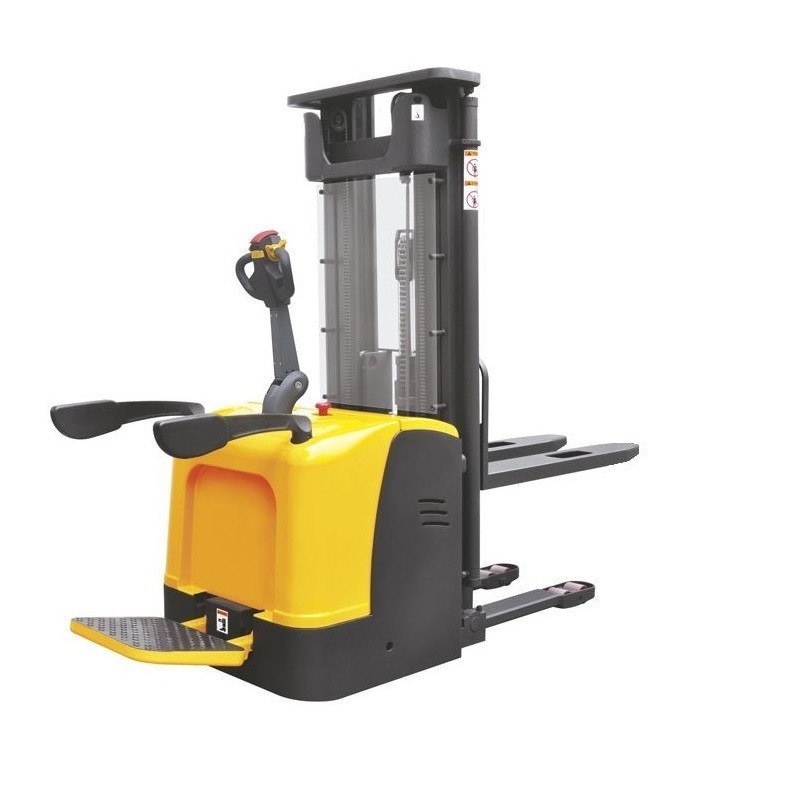

Electric self-propelled stacker CDDR15-III 1.5Tx4.5M Li-on battery


Description

Fully electric self-propelled stacker CDDR15-III. This version lifts a load weighing up to 1.5 tonnes, to a height of 4.5 meters. Equipped with a 24V/125Ah Li-On battery

The CDDR15-III stacker has a safe, well-developed design, thanks to the presence of a modern AC control system and an emergency reversal button; as well as emergency shutdown capabilities and a built-in pressure relief valve that protects against overload. In addition, the equipment has a limit switch that is triggered when the maximum height is reached. The lifting capacity is 1.5 tonnes, the lifting height is 4.5m and the pickup height starts at 90mm. The stacker is easy to maintain and use thanks to a simple, fast and reliable connection using CANbus technology.

Lifting and moving are carried out without the physical effort of the operator. It allows you to transport loads as quickly and easily as possible. Effective for use in labor-intensive warehouses. The traction battery provides 8 hours of operation. Controlled by buttons on the handlebars.

Additional Benefits:

Multifunctional BDI display with hour counter

Stepless speed control system

Waterproof and dustproof motor design

Vertical engine with small turning radius

Low risk of collision thanks to minimization of blind spots

Low center of gravity for a balance of stability and efficient speed

The possibility of separating the mast from the frame with subsequent replacement

The ability to easily pass through a low door or gate

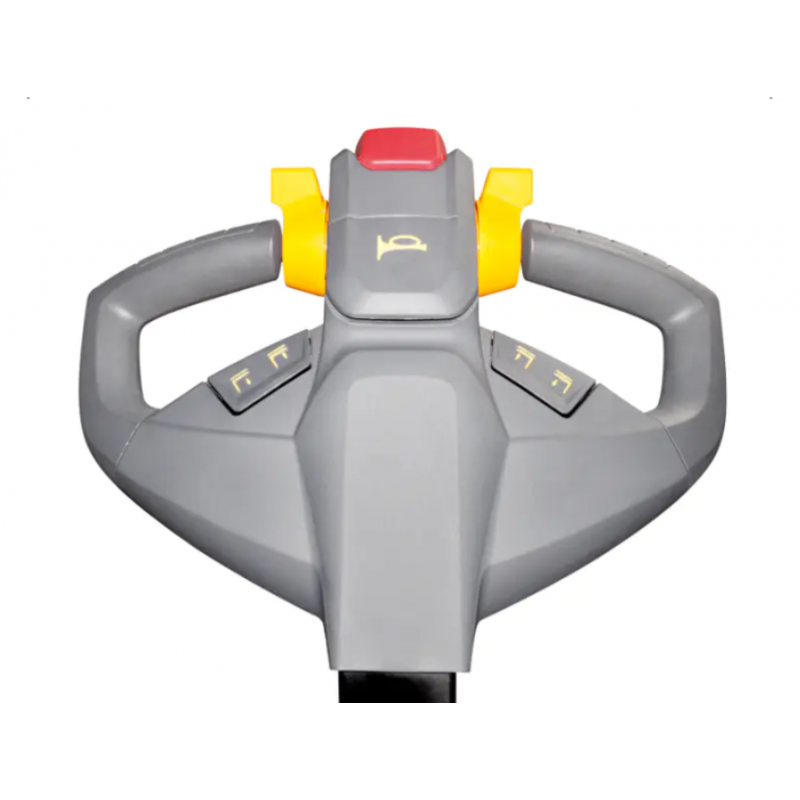

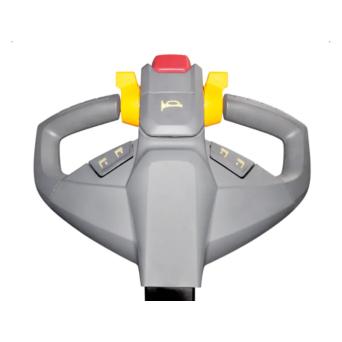

Intuitive multifunction control button


Technical details

Ability. t: 1.5

Lifting height, m: 4.5

Travel speed, km/h: 6.7

Fork length, mm: 1150

Fork width, mm: 570

Turning radius, mm: 1575

Vehicle width, mm: 820

Total length, mm: 2055

Height in folded position, mm: 2,414

Maximum height, mm: 5030 mm

Li-on battery 24V / 125Ah

Weight, kg: 1815
