TOR INDUSTRIES

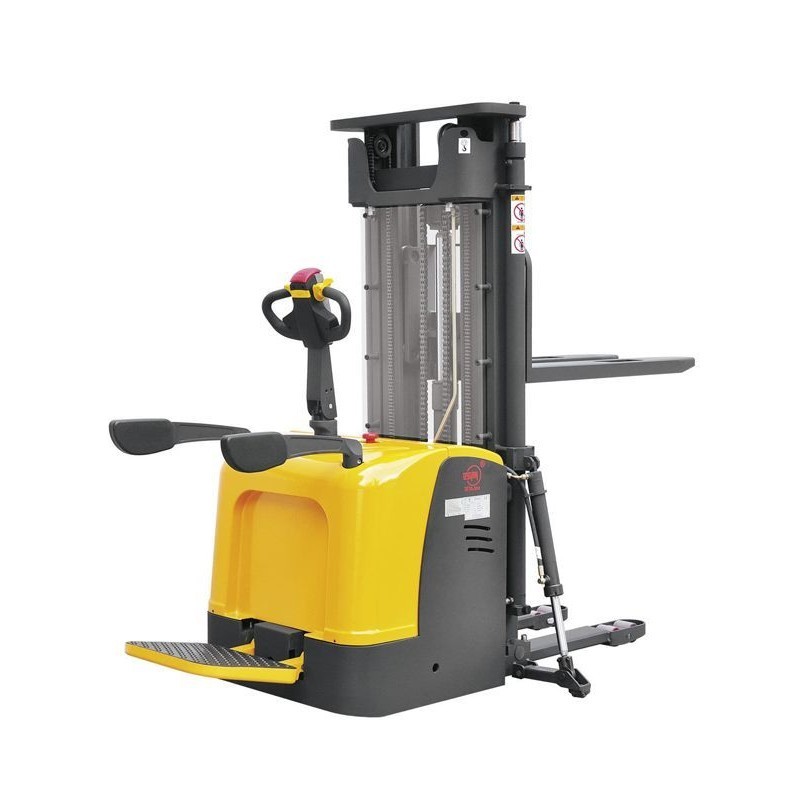

Electric self-propelled stacker with platform CDDK15-III 1.5Tx4.5M


Description

Electric self-propelled stacker with CDDR15-III 1.5Tx4.5M platform is an economical, fully electric stacker. This version lifts a load weighing up to 1.5 tonnes, to a height of 4.5 meters.

Lifting and moving are carried out without the physical effort of the operator.

It allows you to transport loads as quickly and comfortably as possible. Effective for use in warehouses with high labor intensity.

The traction battery provides 8 hours of operation.

Controlled by buttons on the handlebars.

Equipped with operator platform.


The advantages of the model:


Safety and performance:

The AC motor does not require replacement of brushes;

Multifunctional display with operating hours counter;

Battery side positioning for easy maintenance;

Shock plate for quiet operation;

The handle is equipped with an emergency reversing device for safety;

Automatic deceleration function makes work safe;

Built-in safety valve protects against overload, increases reliability;

The braking function is available in the vertical and horizontal position of the handle, making maneuvering easier;

Emergency power off;

Infinitely variable speed control



Design features:

Low center of gravity stability during operation;

Vertical drive wheel for easy maintenance and small turning radius;

Waterproof and dustproof motor design makes the braking system;

The mast and frame are removable and replaceable;

Free movement of the mast, suitable for rooms with low ceilings (e.g. a stacker with a lifting height of 3m can enter the door by 2m)


Ease of maintenance:

Low voltage protection function extends battery life;

The compact layout of electronic components simplifies assembly, debugging and maintenance;

CANbus technology reduces wiring for improved system reliability and ease of maintenance;


Detailed technical specifications can be found below in a Technical Specifications section.

When choosing a stacker, pay attention to the key performance features that matter to you.

If you need expert advice, please use a convenient method of communication to obtain comprehensive information on choosing a stacker.


Technical details

Load capacity: 1.5T

Collection height, mm: 85

Fork length, mm: 1150

Fork width, mm: 570/695

Lifting height, mm: 4500

Folded height, mm: 2050

Maximum height, mm: 5030

Total length, mm: 2025

Overall width, mm: 850

Turning radius, mm: 1655

Lifting speed with/without load, m/s: 0.06/0.13

Descent speed with/without load, m/s: 0.13/0.10

Driving speed with / without load, km / h: 6.5 / 6.7

Climbing performance with/without load,%: 6/15

Drive motor, kW: AC 1.5

Lifting motor, kW: 2.5

Battery, V/Ah: 24/225

Center of gravity, mm: 600

Weight, kg: 1510
