EtaLine / EtaLine R / EtaLine Z
Description

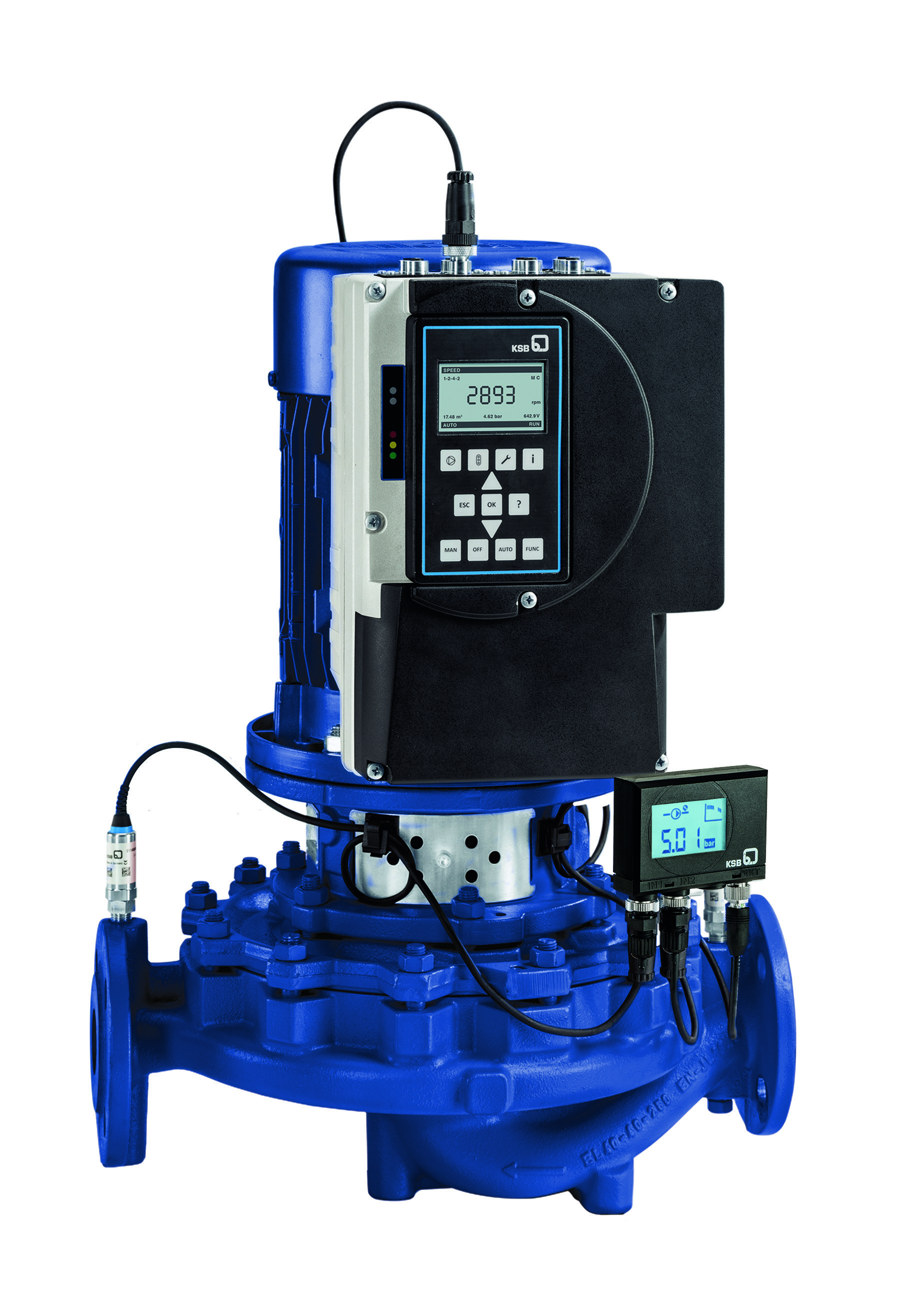

Single-stage volute pump in in-line construction with magnetless KSB SuPremE motor, efficiency class IE4/IE5 and PumpDrive frequency inverter, rigidly coupled pump shaft and motor shaft.
Technical details
Technical characteristics
- Component function
- Pumping
- Connection type Input
- Flange
- Training concept
- With electric actuator
- Maximum flow
- 850 m³/h
- Minimum flow
- 2 m³/h
- Maximum head
- 140m
- Minimum head
- 2m
- Network frequency
- 50Hz,
60Hz - Supply voltage
- 220V,
230 V,
240V,
380V,
400V,
415V,
460V,
500V,
575V,
660V,
690V - Faucet body material
- EN-GJL-250/A48 CL 35B
- Nominal pressure Output
- PN 16,
CL 125 - Maximum admissible operating pressure on the discharge side
- 16 bar
- Bootstrap behavior
- Not self-priming
- Maximum allowable fluid temperature
- 140°C
- Minimum allowable fluid temperature
- -30°C
