Multitec
Description

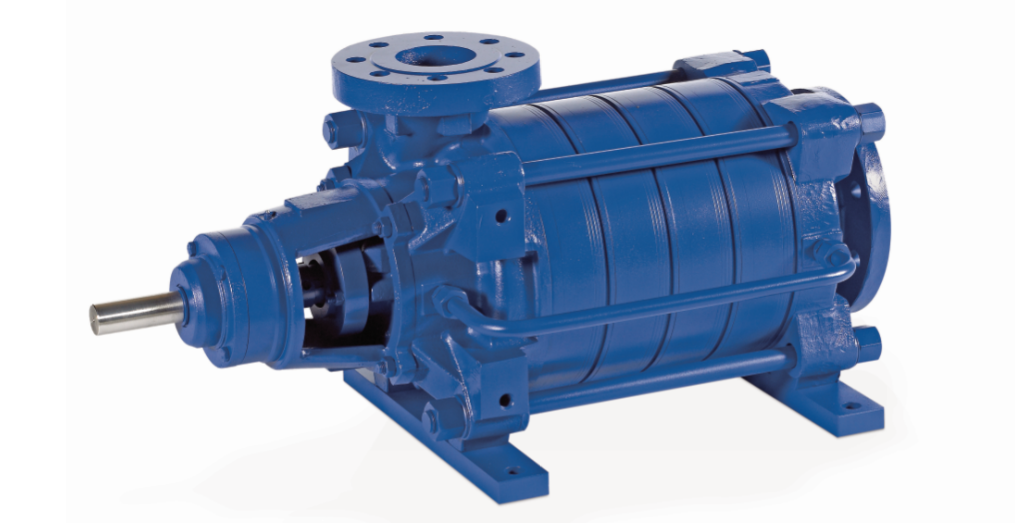

Horizontal or vertical centrifugal pump, multi-stage, with segmented body, in monobloc construction or in common base version, axial or radial suction, cast radial impellers, frequency variator mounted on the motor. ATEX version available.
Benefits
- Flexibility and optimal adaptation to the specificities of the installation thanks to the different installation modes and the adjustable position of the pipes
- Low NPSH, good suction capacity and excellent operational safety in suction operation thanks to the use of a special suction wheel
- Optimized yields and reduced operating costs thanks to newly designed hydraulics
- Versatility thanks to the multiplicity of installation methods, materials and shaft seals
Technical details
CharacteristicsTechnical
- Connection type Input
- Flange
- Training concept
- internal combustion engine,
With electric actuator,
Turbine - Maximum flow rate
- 1500 m3/h
- Minimum flow rate
- 4 m3/h
- Maximum manometric height
- 1000 m
- Minimum manometric height
- 20 m
- Network frequency
- 50 Hz,
60 Hz - Supply voltage
- 400 V,
460 V - Faucet body material
- S355J2H,
EN-GJL-250,
EN-GJS-400-15,
GP240GH+N,
1.4317,
1.4408 - Nominal pressure output
- PN 100
- Maximum permissible operating pressure on the discharge side
- 100 bar
- Priming behavior
- Not self-priming
- Maximum permitted fluid temperature
- 200 °C
- Minimum permitted fluid temperature
- -10°C
