TOR INDUSTRIES

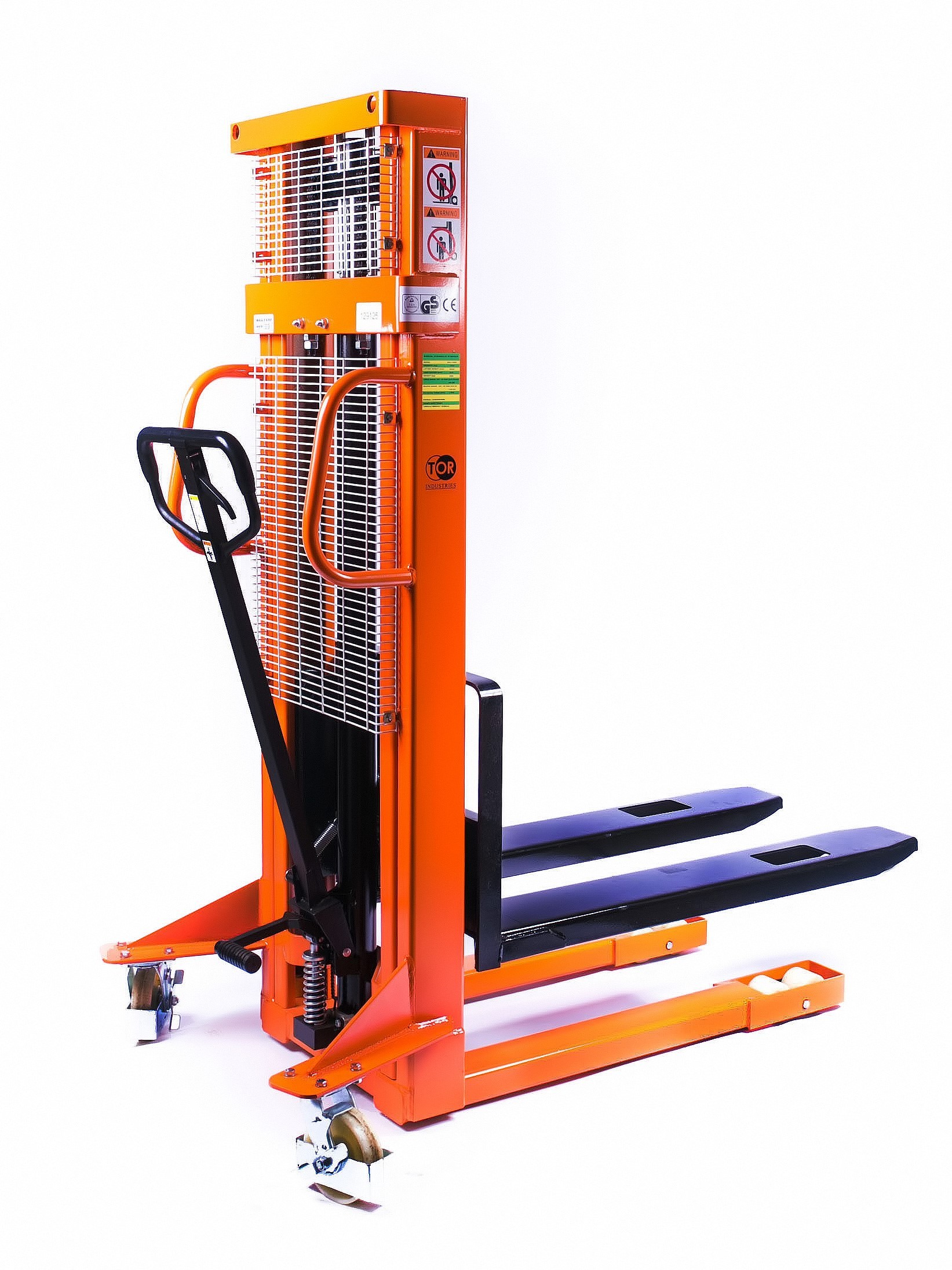

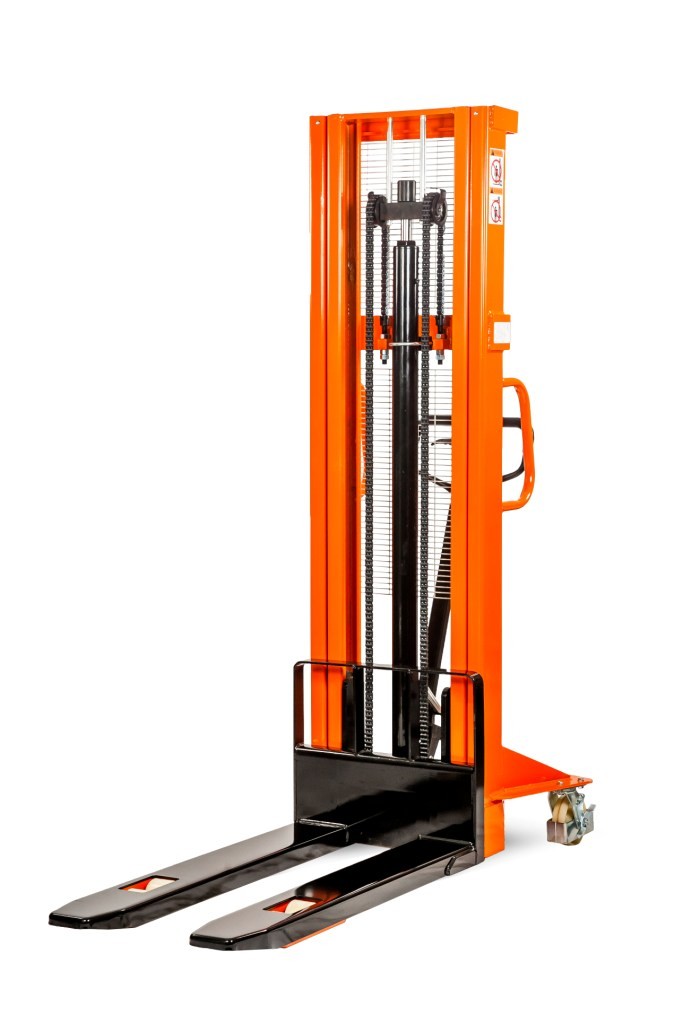

TOR SDJ 1T x 1M60 manual stacker
TOR SDJ 1T/1.6M manual stacker is an economical model of the manual stacker with everything you need for efficient work. The lifting capacity of this series is from 500 kg to 1.5 ton. The 1T/1.6M model has a lifting capacity of 1 ton and lifts the load to a height of 1.6 meters, which is enough to stack pallets on 2 levels.
Main characteristics :
Compact design for euro pallets 550/580 х 1100/1150
All structural elements, including the stacker mast and support structure, are made of high quality steel to ensure rigidity and durability.
Welded forks provide an economical solution.
Lifting the load can be carried out either by hand, with a classic handle, or by foot using an additional lever, which allows the operator to choose a method that suits him or alternate them for less load.
The high performance pump makes handling the load easier.
The metal grille protects the user from lifting chains.
The wheels and the brake system are protected by a casing to ensure safety during work.
Detailed technical specifications can be found below in a Technical specifications section*.
When choosing a stacker, pay attention to the key performance features that matter to you.
If you need expert advice, please use a convenient method of communication to obtain comprehensive information on choosing a stacker.
Technical characteristics :
Collection height, mm: 90
Capacity, kg: 1000
Lifting height, mm: 1600
Others*:
Lifting speed, mm/s: 25
Turning radius, mm: 1380
Fork length, mm: 1100 (1150)
Fork width, mm: 560
Height in folded position, mm: 2090
Maximum height, mm: 2090
Overall length, mm: 1630 (1705)
Overall width, mm: 760
Center of gravity, mm: 600
Ground clearance, mm: 25
Controlled manual override
Wheel material: nylon
Weight, kg: 214
