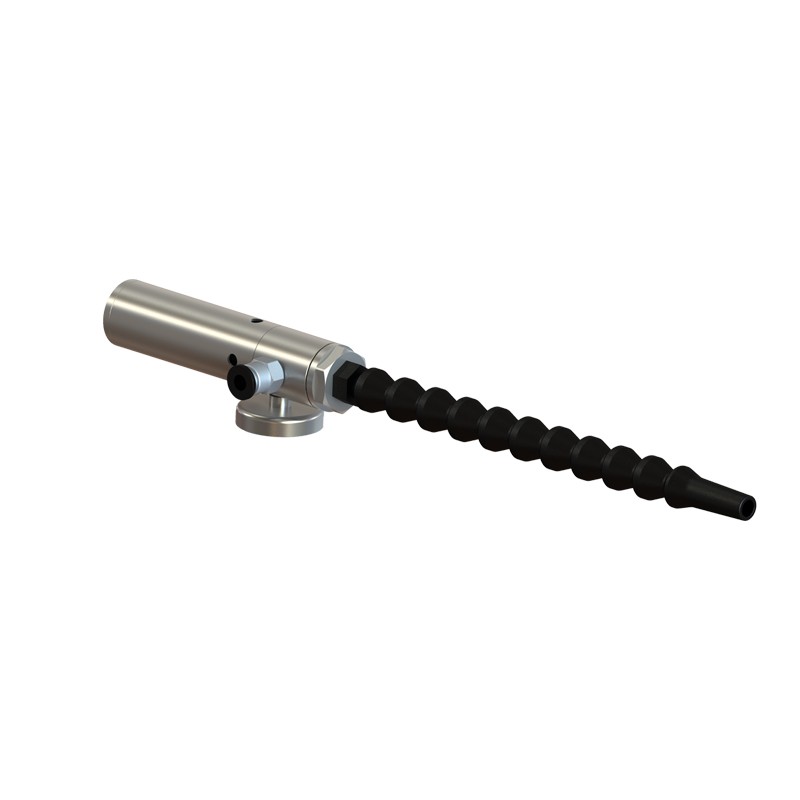

NOVACOM Cold Air Gun - CS 5 Series

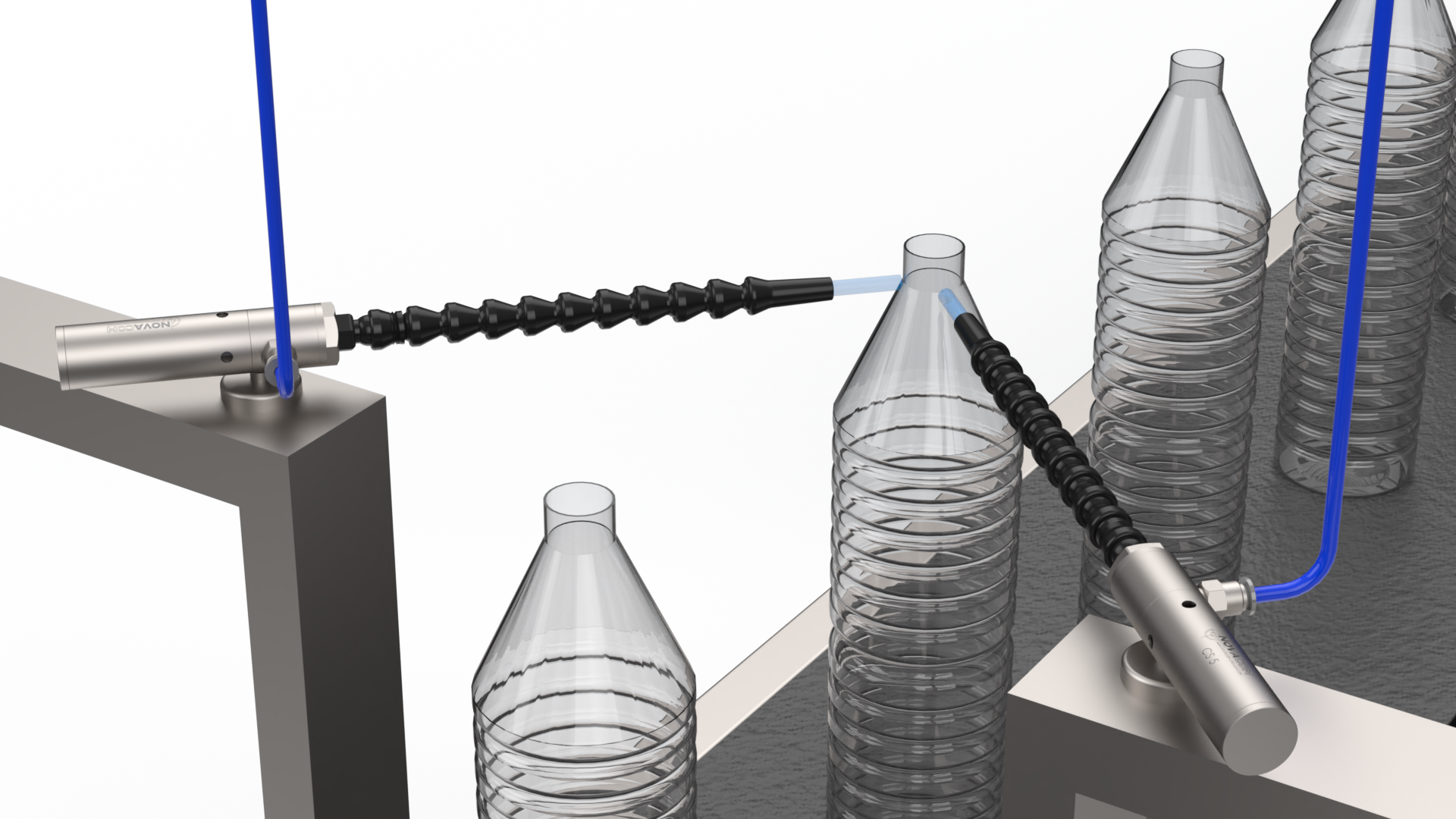

NOVACOM develops and designs, in France, compact cold air guns , operating with the vortex effect. They are a source of cold, localized and precise air, with the advantage of mobility, thanks to their magnetic bases.

Made of stainless steel, they incorporate a vortex generator .

The incoming compressed air passes through the fixed, streamlined generator, which forces the air to swirl at high speed inside the tube. The air therefore heats up strongly by rubbing the interior walls of the tube! and escapes through the hot air outlet.

The bottleneck, located at the hot outlet, physically prevents all airflow from escaping. The air is then forced back inside! and is forced to make the opposite path through the center of the cyclone. This flow has a lower speed, and the speed differential causes a significant heat exchange. When the air flow escapes, through the cold outlet of the Vortex tube, it can reach a very low temperature! up to a delta of 20°C, compared to the temperature of the incoming compressed air flow.

Depending on the application and your preferences, you can choose between round nozzles and flat nozzles, mounted on an articulated hose.

Perforated hose designs are ideal for providing air curtain distribution, with their design allowing them to adjust to a specific configuration.
