Unwinding trolleys - ST range

Description

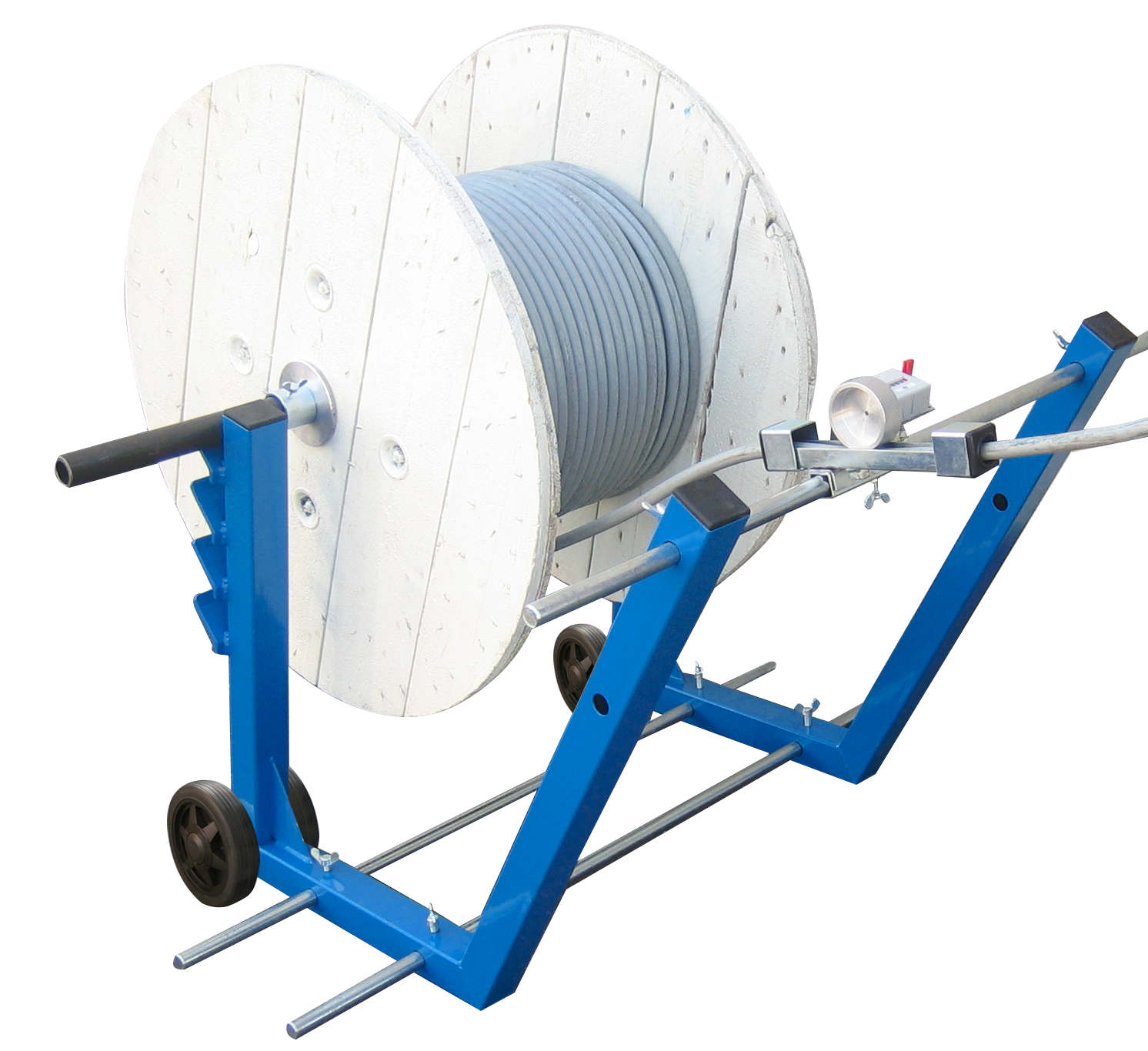

ST1 unroller trolley

A trolley and unwinder at the same time

Very flexible unwinding thanks to the aluminum centering devices (78 mm Ø), which rotate around a steel shaft (Ø 35 mm)
An additional shaft + 2 centering pin set, supplied with the device, can be ordered in order to preequip other drums and therefore make the loading process faster (code ST1-ST2-XAXE)

For drums
- Ø 400 à 1.050 mm
- maximum width 700 mm
- total weight 300 kg
Frame dimensions : l 87 x P 1.150 x H 680 mm
Overall weight : 31 kg

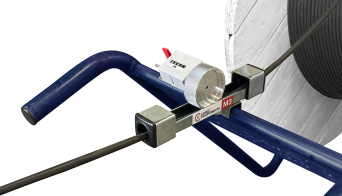

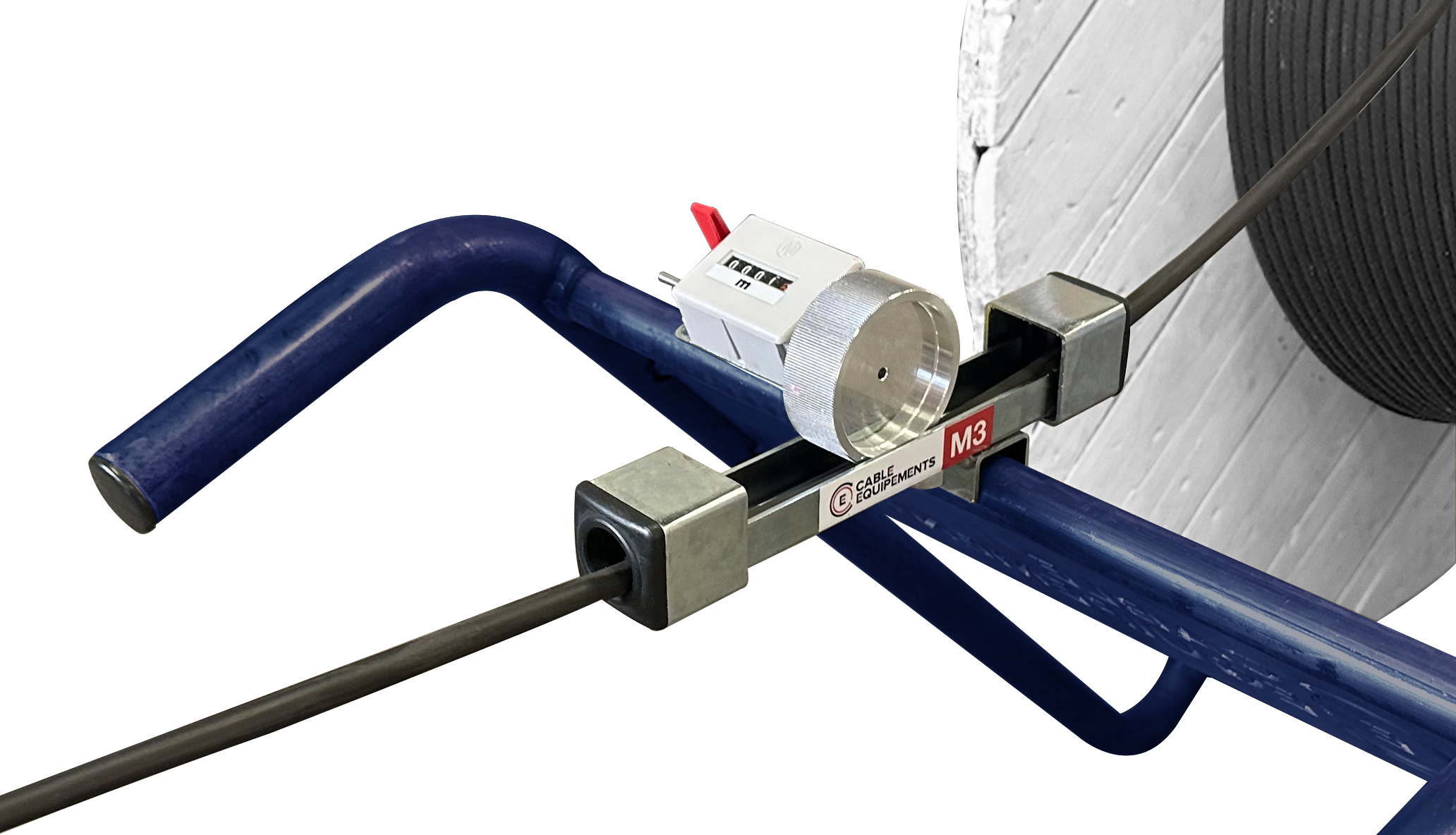

Optional measuring devices:
- M20 cables max Ø of 20 mm metal wheel (code ST1-ST2-M20-ALU)
- M20 cables max Ø of 20 mm polyurethan wheel (code ST1-ST2-M20-PU)
- M35 cables max Ø of 35 mm metal wheel (code ST1-ST2-M35-ALU)
- M35 cables max Ø of 35 mm polyurethan wheel (code ST1-ST2-M35-PU)

Cutting plier option
For cables max. Ø 25 mm, attached with a chain (code ST1-ST2-XCC)

Code ST1

ST2 unroller trolley

A trolley and unwinder at the same time

Very flexible unwinding thanks to the aluminum centering devices (78 mm Ø), which rotate around a steel shaft (Ø 35 mm)
An additional shaft + 2 centering pin set, supplied with the device, can be ordered in order to preequip other drums and therefore make the loading process faster (code ST1-ST2-XAXE)

For drums
- Ø 900 à 1.400 mm
- maximum width 800 mm
- total weight 450 kg

Frame dimensions : l 87 x P 1.150 x H 950 mm
Overall weight : 34 kg

Optional measuring devices:
- M20 cables max Ø of 20 mm metal wheel (code ST1-ST2-M20-ALU)
- M20 cables max Ø of 20 mm polyurethan wheel (code ST1-ST2-M20-PU)
- M35 cables max Ø of 35 mm metal wheel (code ST1-ST2-M35-ALU)
- M35 cables max Ø of 35 mm polyurethan wheel (code ST1-ST2-M35-PU)

Cutting plier option
For cables max. Ø 25 mm, attached with a chain (code ST1-ST2-XCC)

Code ST2

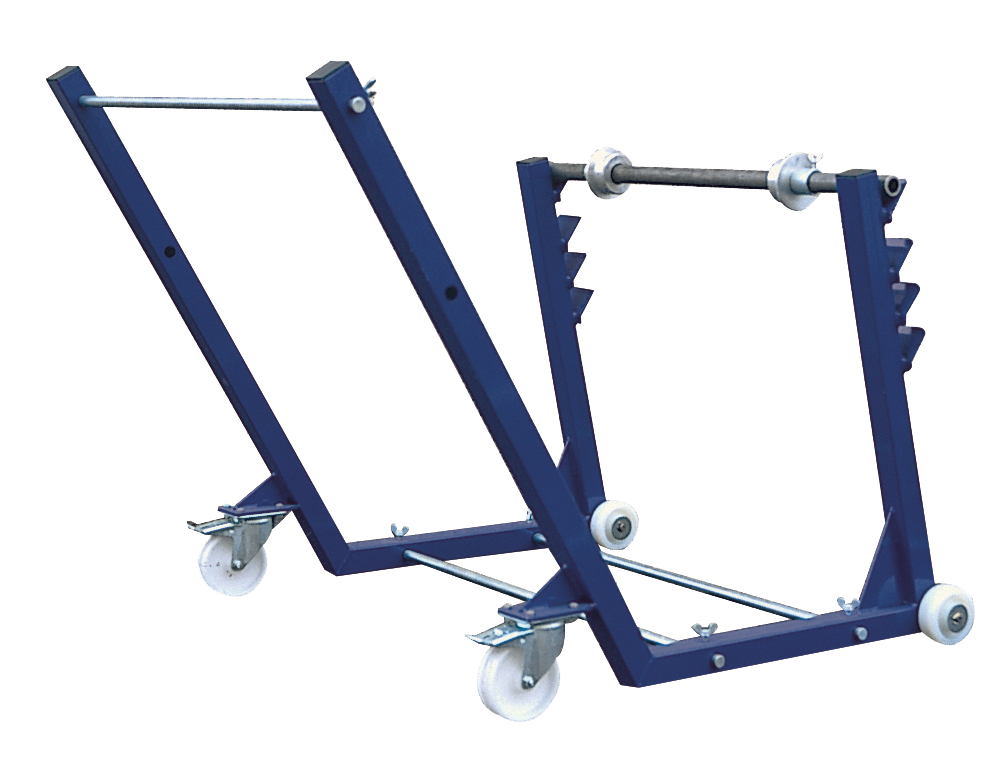

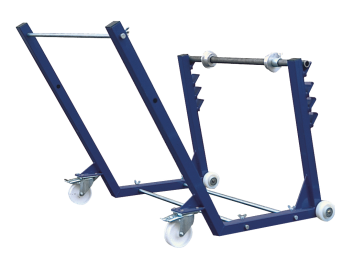

ST3 unrolling trolley

Inwinding trolley for loading, moving and unwinding a cable drum.

2 wheels with rubber tires Ø 250 mm (with brake). Unwinding axle Ø 60 mm (axle Ø 34 mm optional, code ST3-XCC).

For cable drums:

- maximum weight 300 kg

- Ø 550 to 1050 mm

- maximum width 600 mm.

Construction in curved steel tube (delivered assembled).

In textured blue epoxy-finish steel.

Dimensions : H 690 x W 800 mm x L 1330

Weight : 23 kg

Do not use on steps.

Do not use in front of a winding machine.

Code ST3

Measuring device option:

Model	For max. Ø cable	Code with
Model	For max. Ø cable	Metal wheel	Polyurethane wheel
M20	20 mm	ST3-M20-ALU	ST3-M20-PU
M35	35 mm	ST3-M35-ALU	ST3-M35-PU

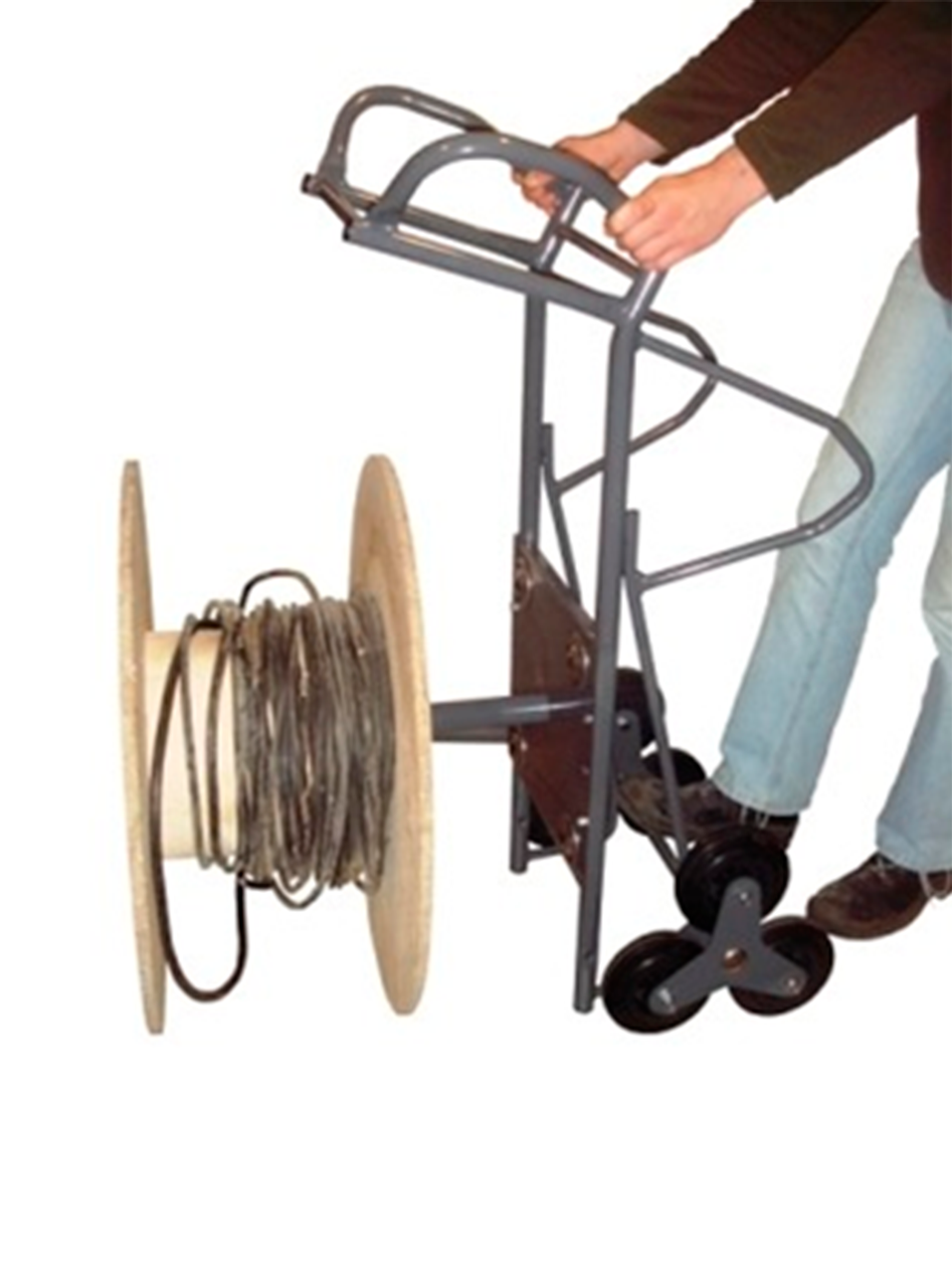

ST4 unroller trolley:

This trolley is very easy to handle thanks to its ergonomic handles.

Loading is done in a vertical position and unwinding of the cable in a horizontal position.
The transport position close to 45° places the center of gravity on the axis of the wheels and the operator therefore does not support all the weight.

Kit of 3 wheels for easily climbing stairs.

Bearing balls to unwind the cable easily.

Safety pin that prevents the drum from slipping during transport.

For drum:
- maximum weight 100 kg
- maximum diameter 800 mm

In steel tube with epoxy powder coating

Dimensions: L 1200 x W 600 x H 800 mm (with tube)
Weight: 23 kg

Code E3008200
