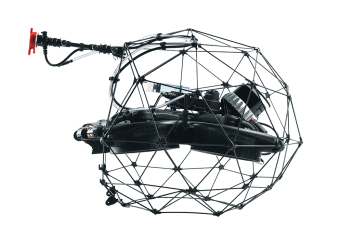

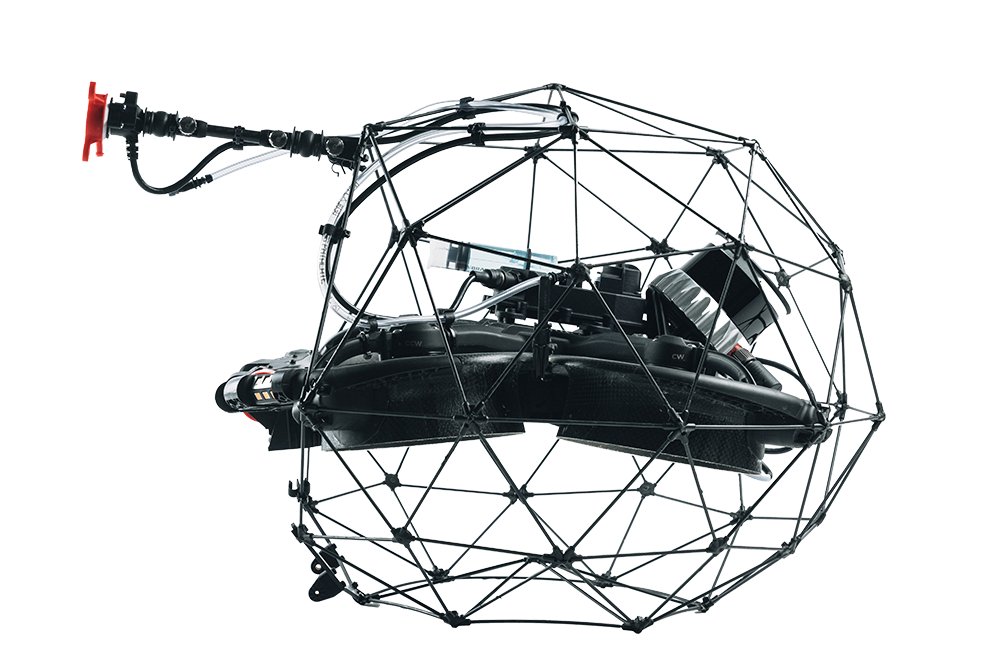

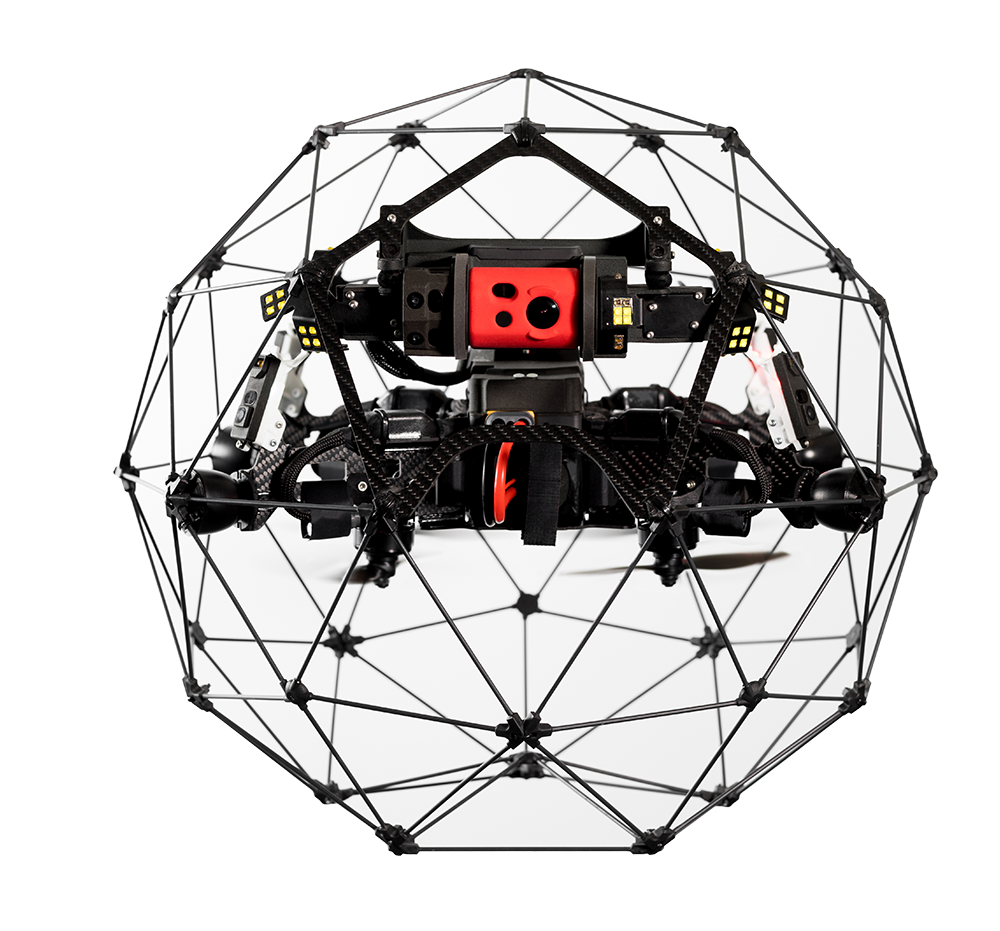

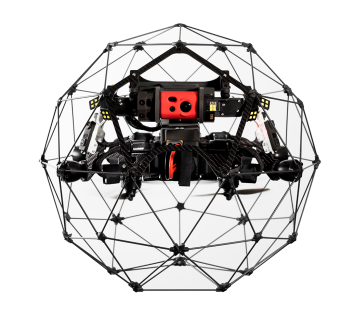

Elios 3 Indoor LiDAR Drone
Description
With ELIOS, visually inspect confined spaces, tanks, networks, components, structures and structures that were previously inaccessible to you.
Make your maintenance operations safer, faster and less expensive.
- Improve the safety of your operators: more physical access to risk areas.
- Reduce downtime and downtime: simple commissioning and operation.
- Control inspection costs: no more scaffolding, baskets or cranes.
Combining the power of computer vision and LIDAR mapping, Elios 3 is a versatile indoor drone that paves the way for a world where performing systematic inspections no longer requires laborious training. Report creation is done intuitively on a 3D model of your installation, and localization assistance is directly integrated into the control application. Quickly transform data from your confined and difficult-to-access infrastructures into digital information with Elios 3, the first indoor inspection and mapping drone offering an unrivaled combination of intelligence, versatility and stability.
Universal platform offering several specialized payloads: the Elios 3 indoor LiDAR drone offers a growing number of payloads to cover all your inspection needs: radiation measurement, topography, ultrasonic thickness measurement.
Technical details
- ELIOS 3
- Ducted fan quadcopter configuration
- 48cm wide*38cm high
- Flight sensors IMU, magnetometer, barometer, LiDAR, 3 computer vision cameras and ToF distance sensor
- 4 fast reversing brushless electric motors
- Made of carbon fiber; Kevlar composites, magnesium alloy, aircraft grade aluminum, high quality thermoplastics
- 4k Ultra HD video: 3840*2160 at 30 FPS or FHD: 1920*1080 at 30 FPS
RADIATION MEASUREMENT - ELIOS 3 RAD
- Complete reading of in-flight radiation
- Reading, locating and reporting post-flight radiation
- Developed by Mirion Technologies
- Detachable and interchangeable sensor
SURVEYING - ELIOS 3 LiDAR REV 7
- Scan speed: 1.3M points per second
- Accuracy: from 0.1% drift
- Accuracy (1 sigma): +/- 6mm
- Up to 100m range
- Light capture multiplied by 10
- Developed in partnership with FARO Technologies
ULTRASONIC THICKNESS MEASUREMENT - ELIOS 3 UT
- Location of ultrasound measurements
- Smart couplant dispenser
- Smart Probe Arm
- Modular probe head
- Cleaning module
- Live A-Scans
