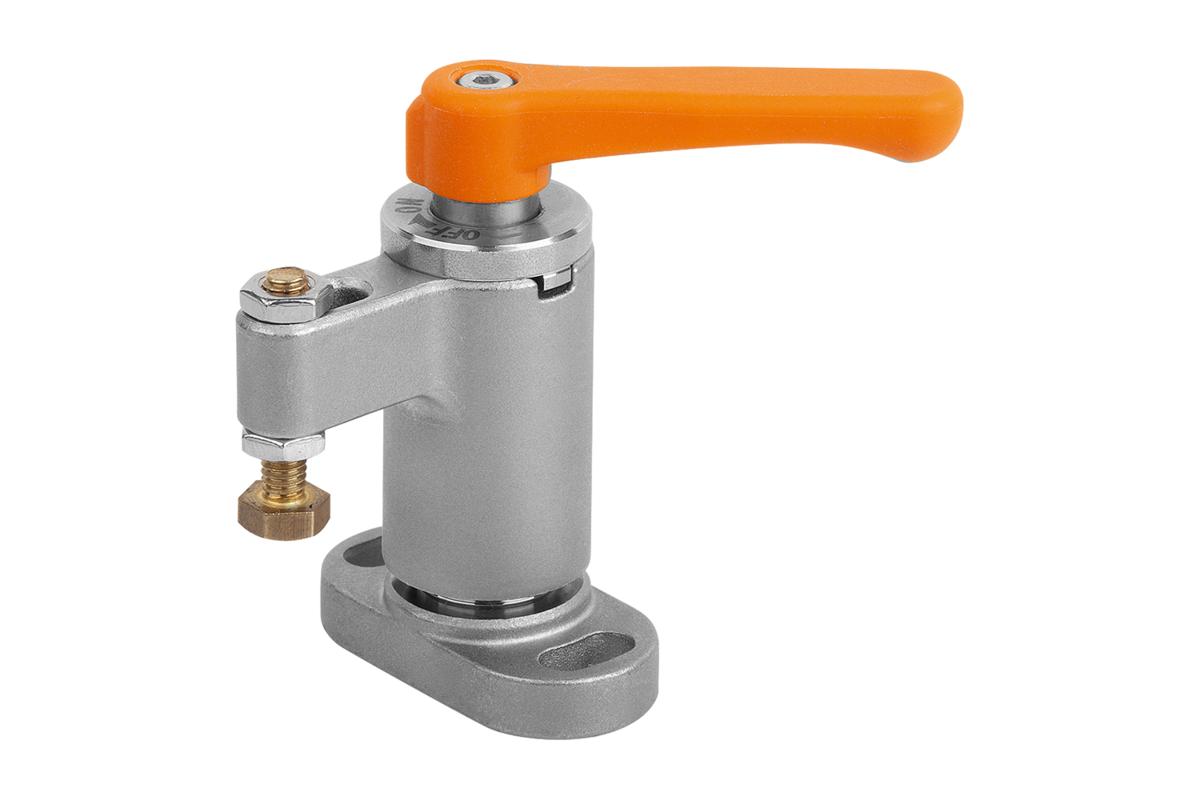

Mini Swivel Clamp Set with Locking Function
Description
Swivel clamping assemblies are mainly used when there is a need to leave room for inserting or removing parts.
When the final clamping position is reached, a click can be heard and a lock can be felt.
Technical details
Matter
Basic body made of treated steel.
Plastic handle.
Brass pressure pin.
Plastic handle.
Brass pressure pin.
Finishing
Basic body treated and nickel-plated.
Orange handle.
Orange handle.

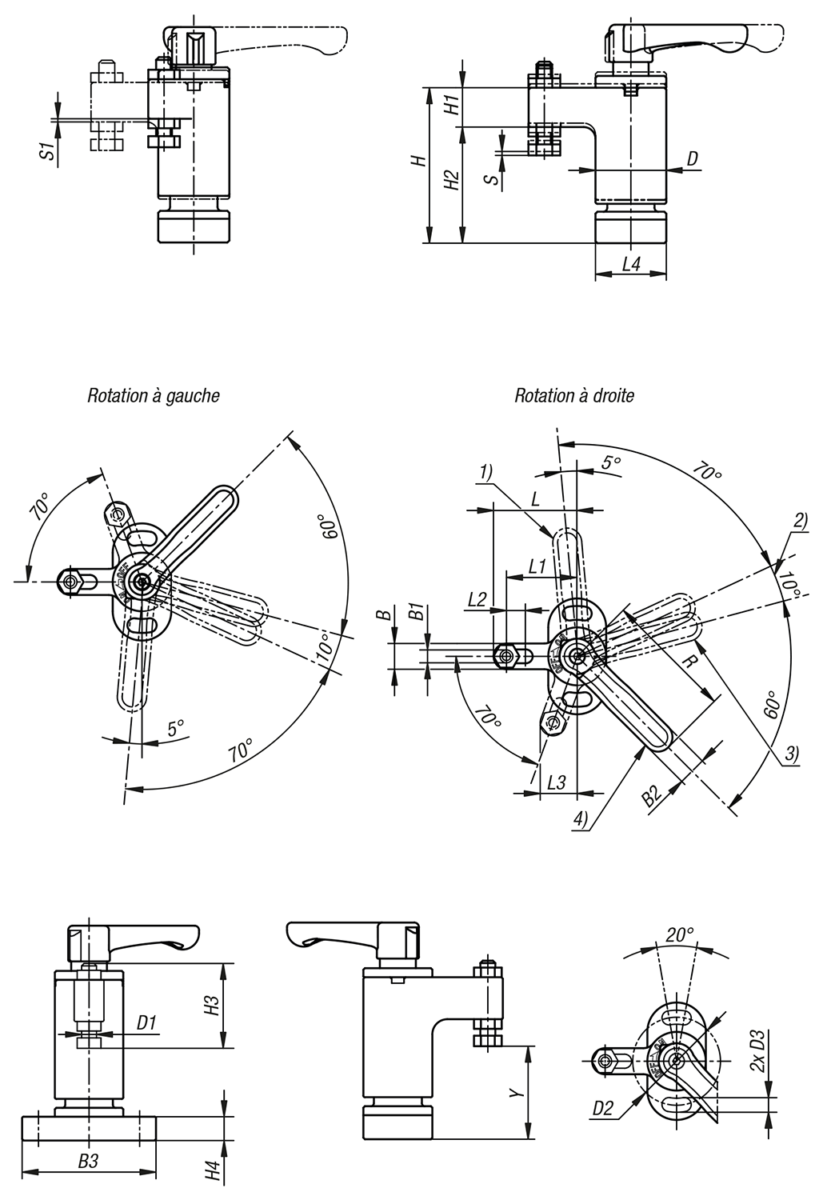

Drawing indication
1) Loose position
2) Pre-stressing stroke
3) Initial clamping position
4) Bridled position
2) Pre-stressing stroke
3) Initial clamping position
4) Bridled position
