Steel Chain Tensioner Kits
Description

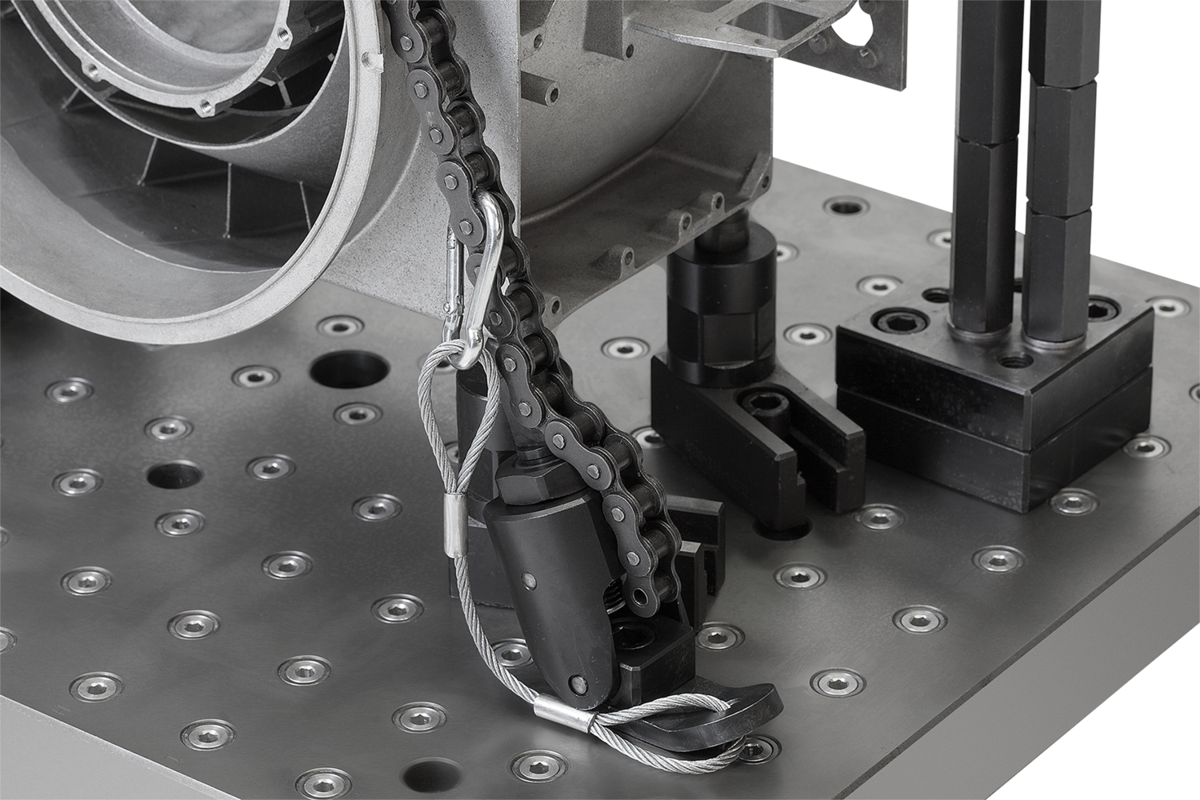

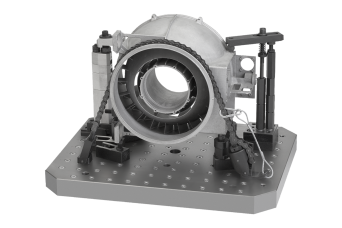

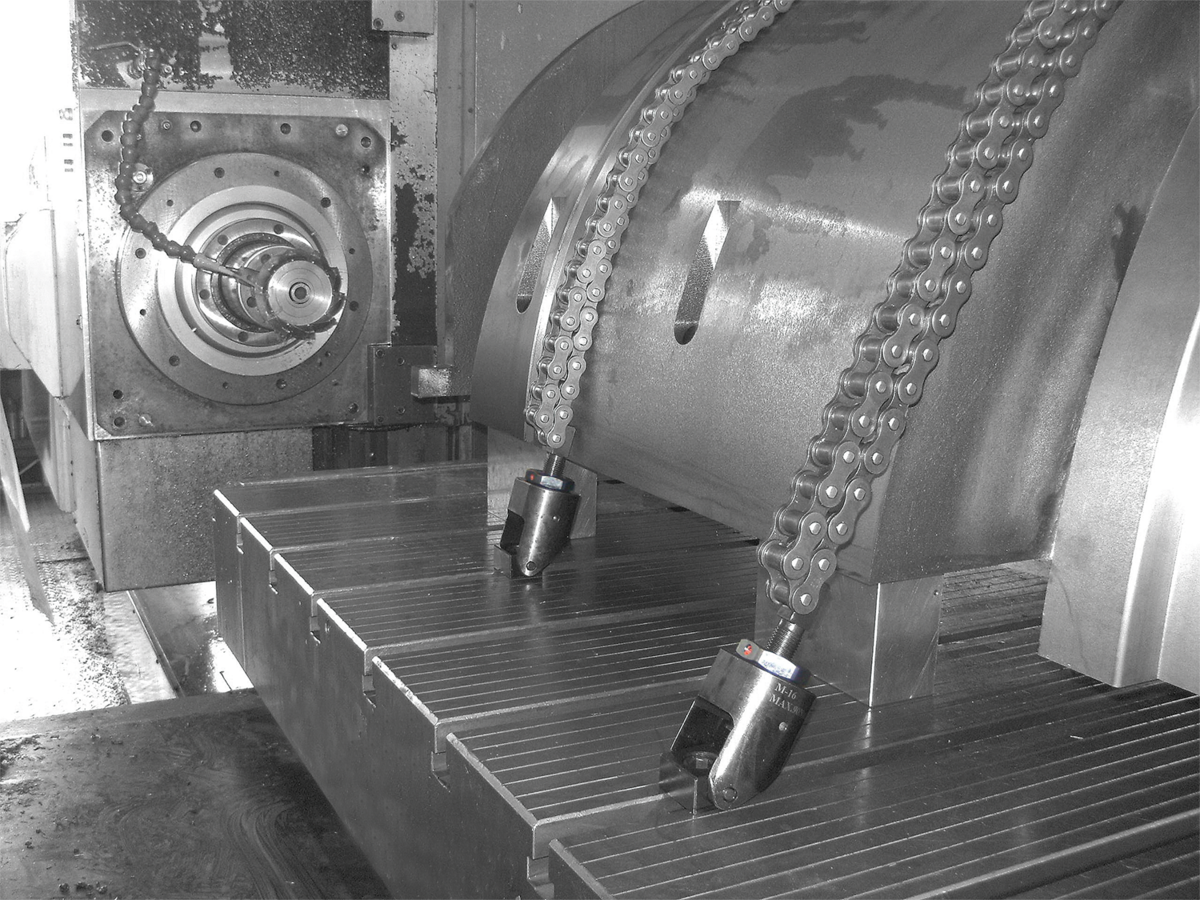

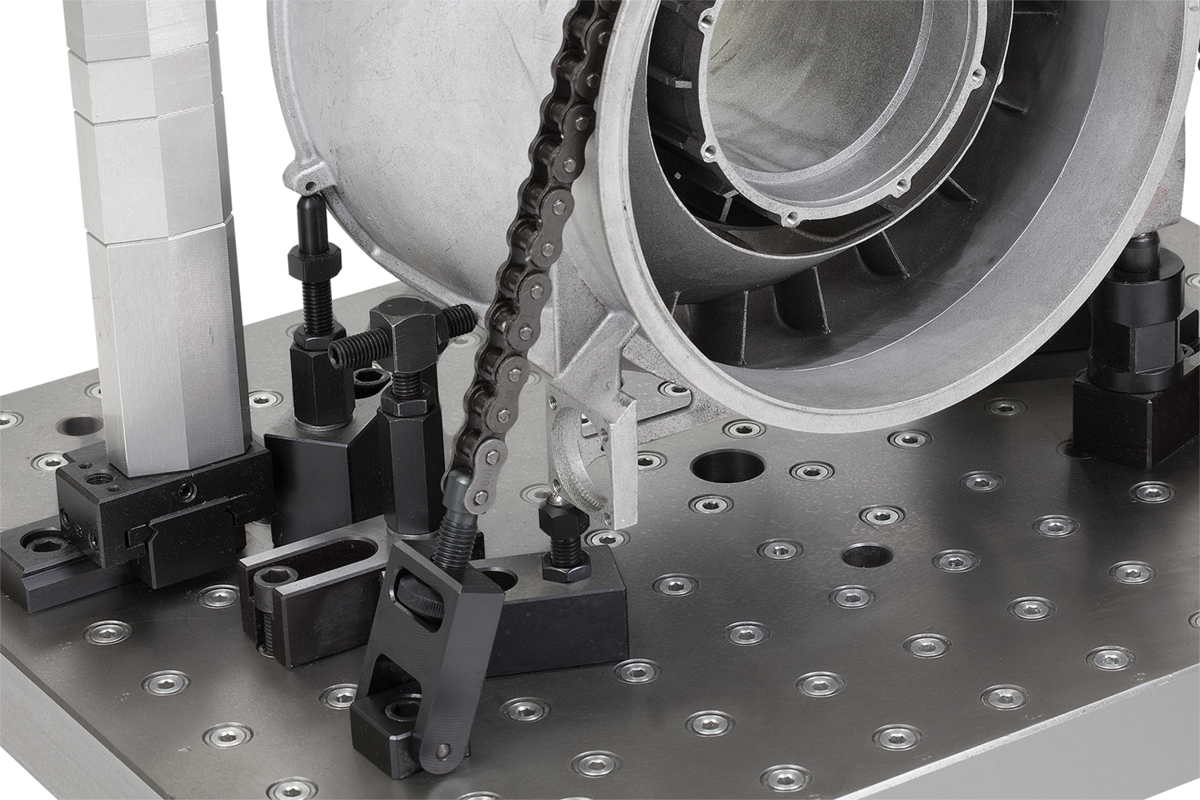

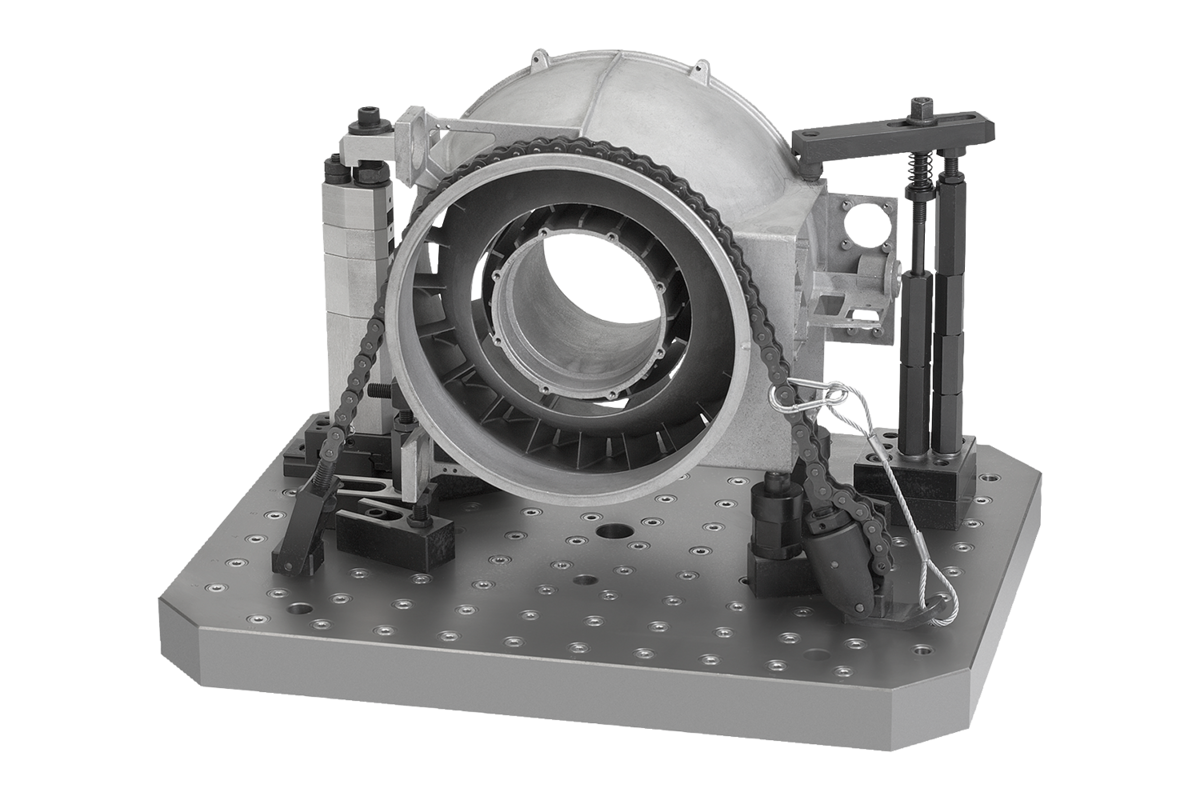

Chain tensioners are mainly used in machine and plant construction.
They allow you to clamp round, large or very large parts in the simplest and fastest way, safely and efficiently.
Suitable for cylindrical parts, valve bodies, pistons, etc.
The use of plastic elements helps to reduce the load on the part.
Technical details

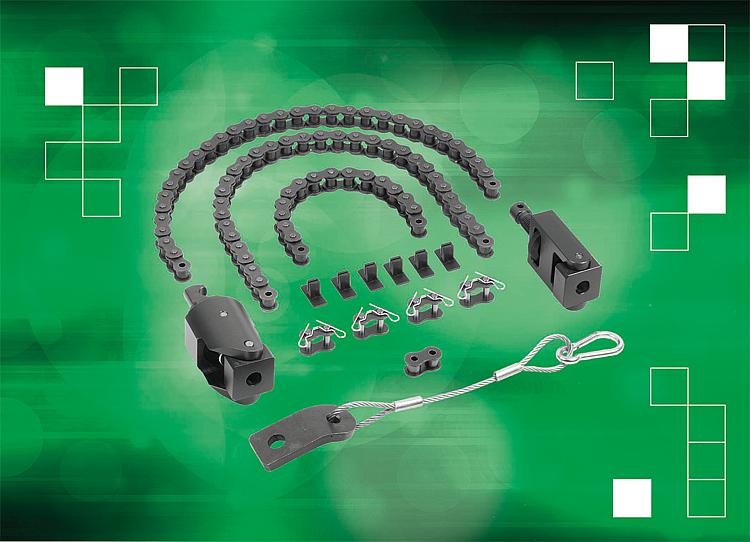

Material: Steel clamping hook. Steel stop. Steel roller chain. Finish: Hardened steel. Application: The chain length and clamping force can be preset on the stop using the knurled nut. The required torque is set on the clamping hook. Scope of delivery: Chain tensioner set 04211-15: - Clamping hook. - Stop. - 4x roller chains (2x 492 mm, 1x 238 mm, 1x 15.9 mm). - 4x closing links with connecting pins. - 6x plastic snap-on elements. - Fastening set for tension chains. Chain tensioner set 04211-40: - Clamping hook. - Stop. - 4x roller chains (1x 991 mm, 1x 483 mm, 1x 229 mm, 1x 25.4 mm). - 4x closing links with connecting pins. - 6x plastic snap-in elements. - Fastening kit for tension chains. Accessories: Steel roller chains for chain tensioner kits 04211-03. Steel tensioners for chain tensioner kits 04211-06. Steel V-shaped elements for chain tensioner kits 04211-09. T-slot nuts DIN 508 range extension, 07060. Hexagon socket head cap screws DIN EN ISO 4762, 07160. Please note: - The opening angle of the chain should not exceed 30°. - Maximum permissible tightening torques.
