MENTOR GmbH

Logo lighting

Description

More light for logos, symbols and texts.

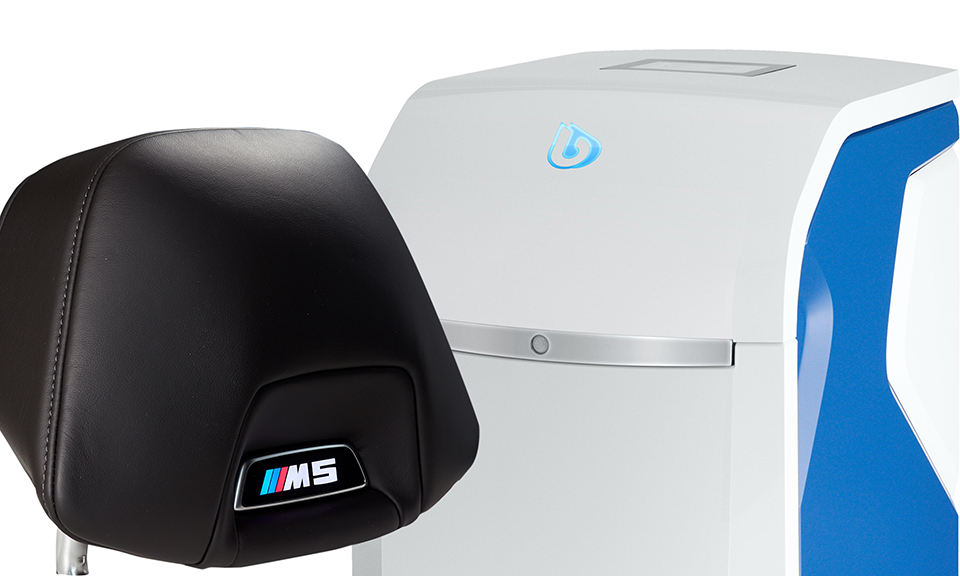

For anyone who wants to literally make a statement on the design of their product, light offers a wide variety of possibilities. Attractive staging of the brand logo , the communication of status information through coloured symbols and texts or the integration of decorative graphics are examples of the functional and aesthetic added value that can be achieved through light.

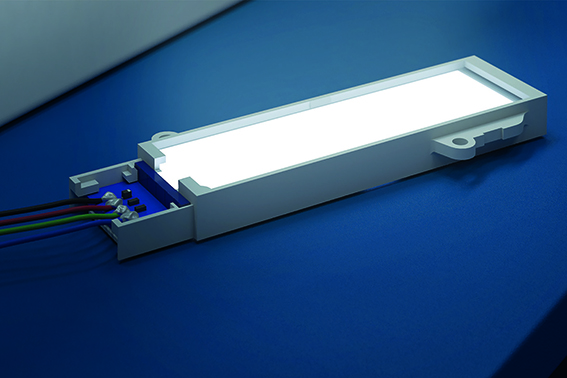

With surface lighting for logos, symbols and texts, we now offer new, cost-effective solutions for backlighting large areas: as a standard product with short delivery times and minimum order quantities, or as a customized solution with a wide range of options.

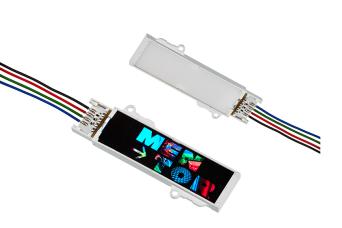

For illustration and testing purposes, a trial version, with a logo already printed, is available in stock.

Technical details

Standard products:

- Illuminated surface: 50 x 16 mm

- Total surface: 80 x 31 mm

- Thickness: 5.5mm

- LED color: RGB

- Integrated diffuser

- Connection: Stranded wires

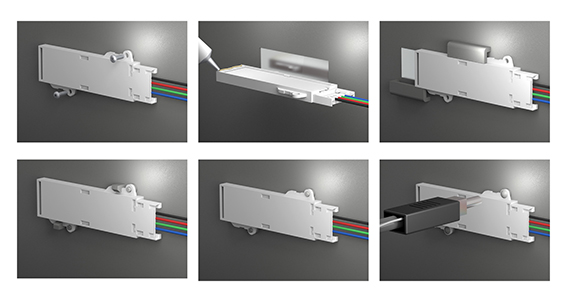

- Quick and easy assembly: various mounting options

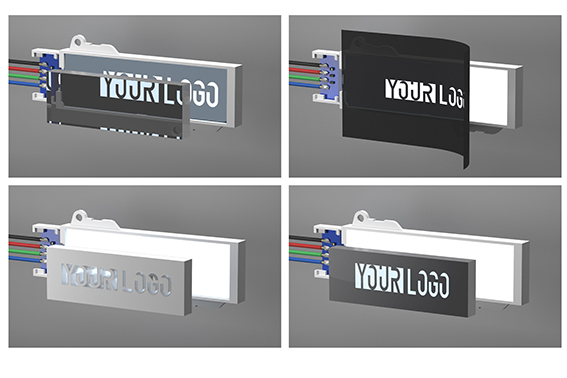

- Different printing variants

- Usable for a wide range of applications

- Different options for LED selection, PCB equipment and electrical connection

Administrative documents

MENTOR-Logolighting.pdf
