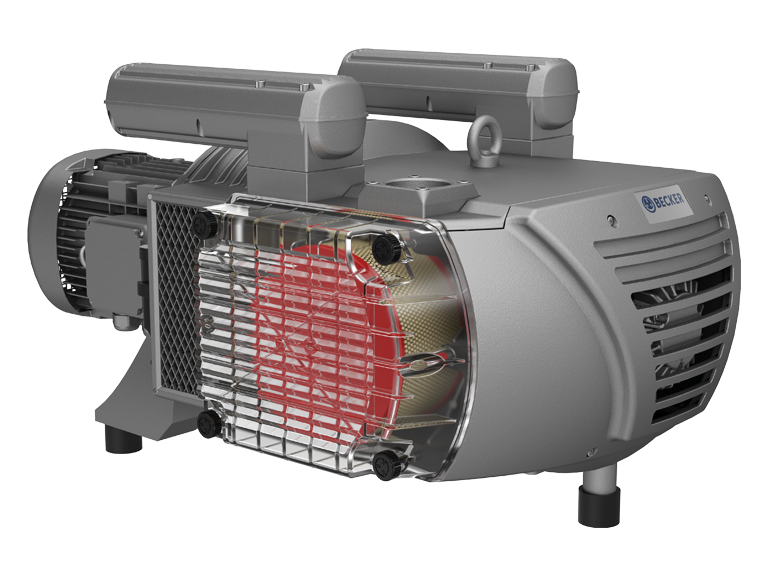

Dry vane vacuum pumps
Becker's robust rotary vane pumps use a positive displacement operating principle. An eccentrically mounted rotor with slots rotates in a cylindrical housing driven by a totally enclosed, fan-cooled motor. The precisely sliding vanes move in the slots, driven to the cylinder wall by centrifugal force. Separate individual working chambers are created by the separation between the vanes.
Becker oil-free rotary vane vacuum pumps are similar to other vane pumps. However, these pumps have unique advantages that you won’t find with standard vacuum pumps. Their simple construction with single shaft direct drive makes them a robust, long-life rotary vane pump with low operating and maintenance costs.
There is the possibility of adding a frequency variator to these vacuum pumps.

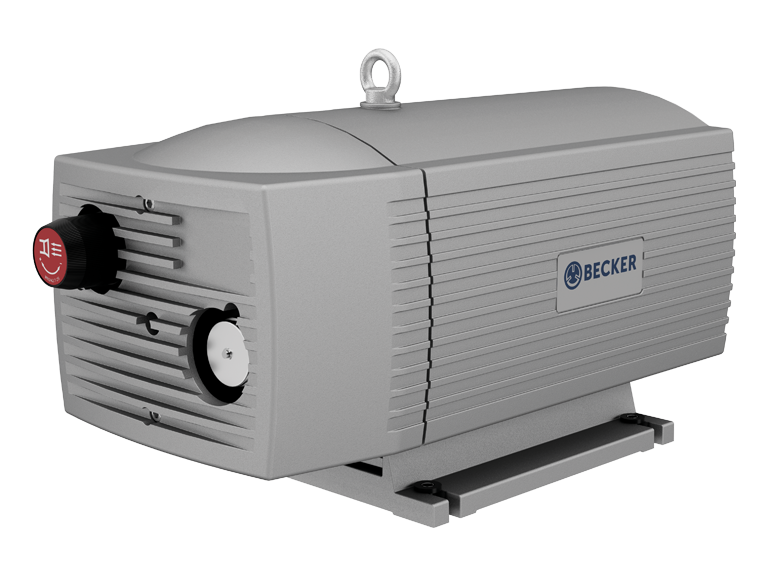

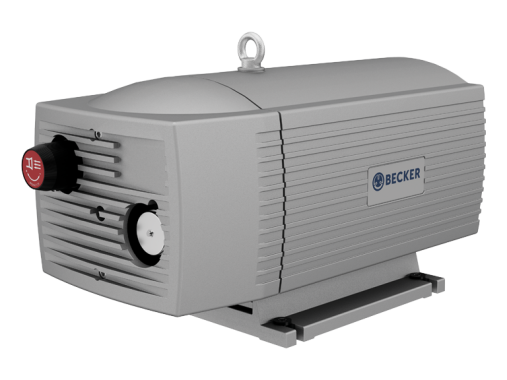

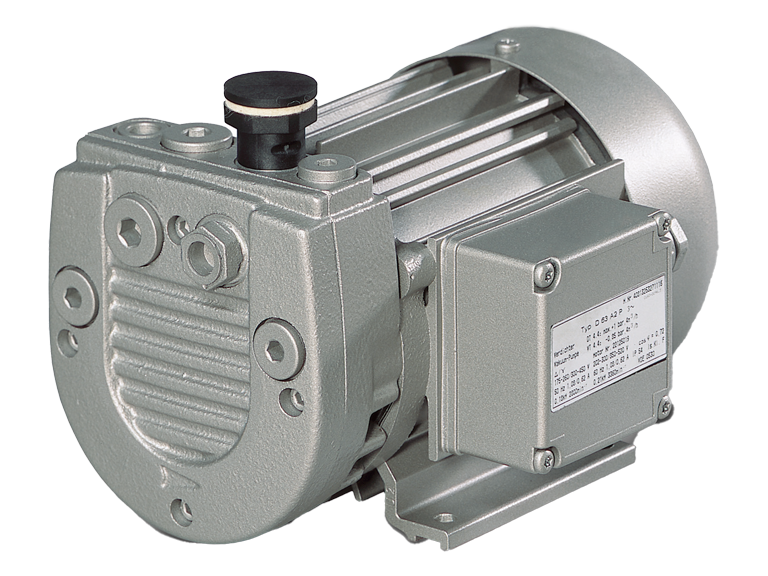

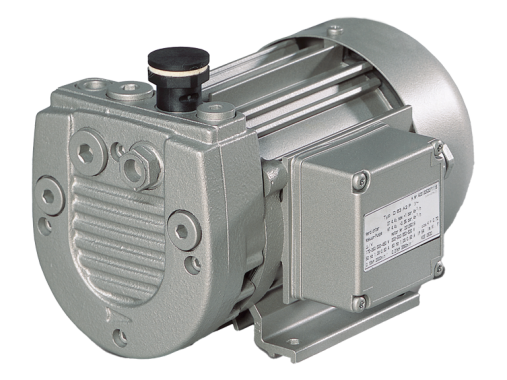

VT Series Product Information/Specifications
| Volume flow 50Hz | Absolute vacuum 50Hz | Power 50Hz | |
|---|---|---|---|
| VT 4.2 | 1.9 m³/h | 400 mbar | 0.9 kW |
| VT 4.4 | 4.1 m³/h | 150 mbar | 0.18 kW |
| VT 4.8 | 8 m³/h | 150 mbar | 0.37 kW |
| VT 4.10 | 10 m³/h | 150 mbar | 0.37 kW |
| VT 4.16 | 16 m³/h | 150 mbar | 0.55 kW |
| VT 4.25 | 25 m³/h | 150 mbar | 0.75 kW |
| VT 4.40 | 40 m³/h | 150 mbar | 1.25kW |

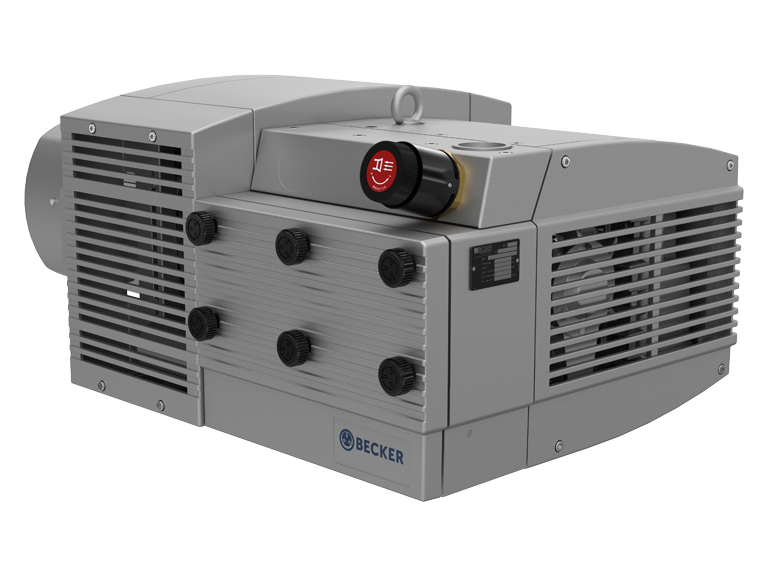

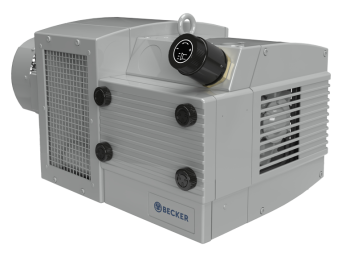

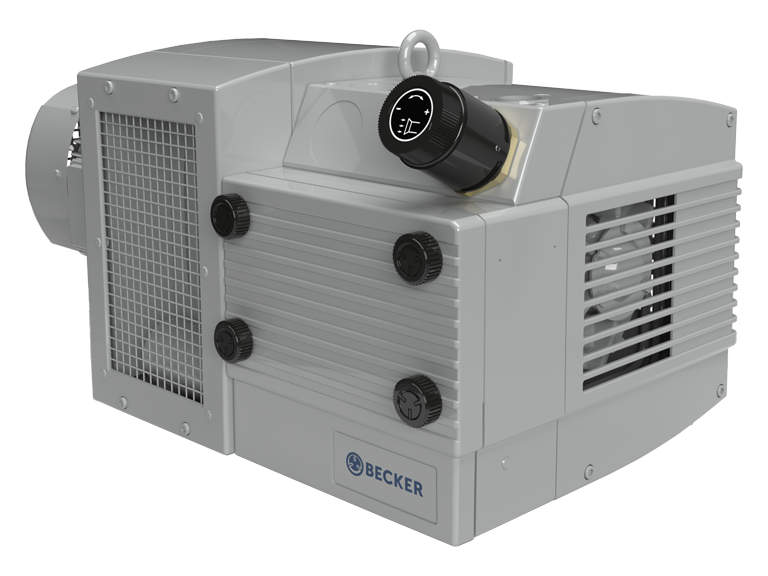

KVT Series Product Information/Specifications
| Volume flow 50Hz | Absolute vacuum 50Hz | Power 50Hz | |
|---|---|---|---|
| KVT 3.60 | 55 m³/h | 100 mbar | 2.2 kW |
| KVT 3.80 | 67 m³/h | 100 mbar | 2.2 kW |
| KVT 3.100 | 98 m³/h | 100 mbar | 3.0 kW |
| KVT 3.140 | 129 m³/h | 100 mbar | 4.0 kW |

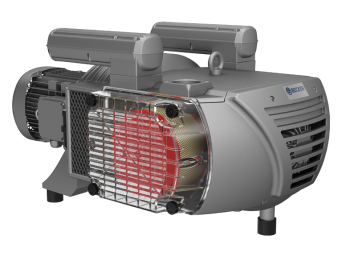

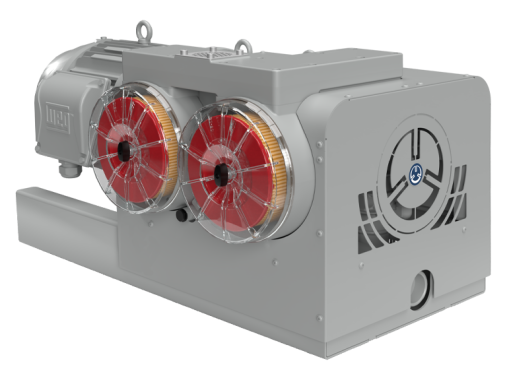

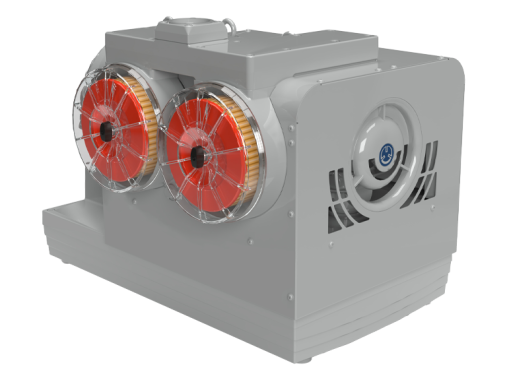

VTLF Series Product Information/Specifications
| Volume flow 50Hz | Absolute vacuum 50Hz | Power 50Hz | |
|---|---|---|---|
| VTLF 2.200 | 178 m³/h | 200 mbar | 4.0 kW |
| VTLF 2.250 | 244 m³/h | 200 mbar | 5.5 kW |
| VTLF 2.250 SK | 247 m³/h | 100 mbar | 7.5 kW |
| VTLF 2.360 | 351 m³/h | 250 mbar | 11.0 kW |
| VTLF 2.400 | 390 m³/h | 200 mbar | 7.5 kW |
| VTLF 2.500 | 495 m³/h | 250 mbar | 11.0 kW |
