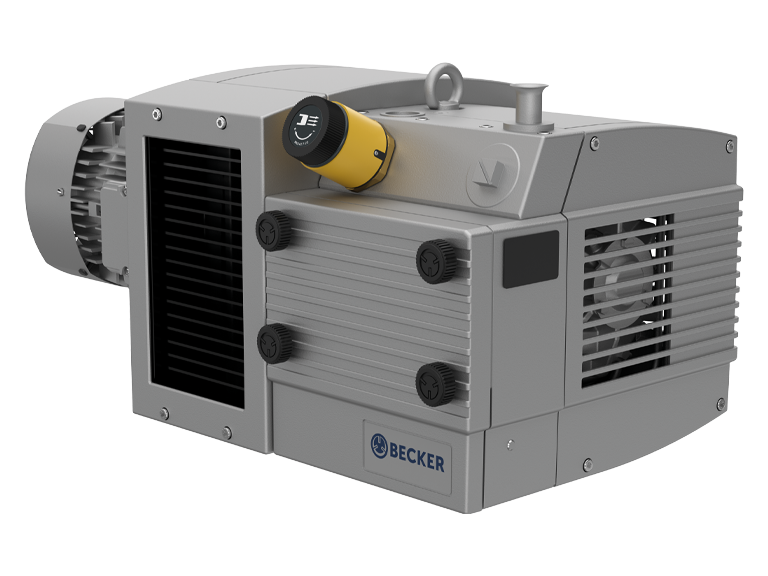

Dry vane compressors
Becker oil-free rotary vane pumps are an excellent choice for medium pressure applications.
Dry running rotary vane compressors are similar to other vane pumps. However, these pumps offer unique advantages that you won’t find with standard compressors. Their simple construction with single shaft direct drive makes them a robust, long-life rotary vane pump with low operating and maintenance costs.
Oil-free pressure rotary vane pumps are positive displacement pumps that feature sliding vanes in a rotor rotating in a cavity. Rotary vane pumps never have internal metal-to-metal contact, so they are able to compensate for wear. As a result, they have lower maintenance requirements and maintain peak performance longer than other types of compressors.
There is the possibility of adding a frequency inverter to these dry vane compressors.
Product information / specifications on the DT series
| Volume flow 50Hz | Absolute vacuum 50Hz | Power 50Hz | |
|---|---|---|---|
| DT 4.2 | 1.9 m³/h | +0.6 mbar | 0.9 kW |
| DT 4.4 | 4.2 m³/h | +1.0 mbar | 0.18 kW |
| DT 4.6/0-61 | 5.7 m³/h | +0.5 mbar | 0.18 kW |
| DT 4.8 | 8 m³/h | +1.0 mbar | 0.37 kW |
| DT 4.10 | 10 m³/h | +1.0 mbar | 0.37 kW |
| DT 4.16 | 16 m³/h | +1.0 mbar | 0.55 kW |
| DT 4.25 K | 25 m³/h | +1.0 mbar | 1.1 kW |
| DT 4.40 K | 40 m³/h | +1.0 mbar | 1.85 kW |
