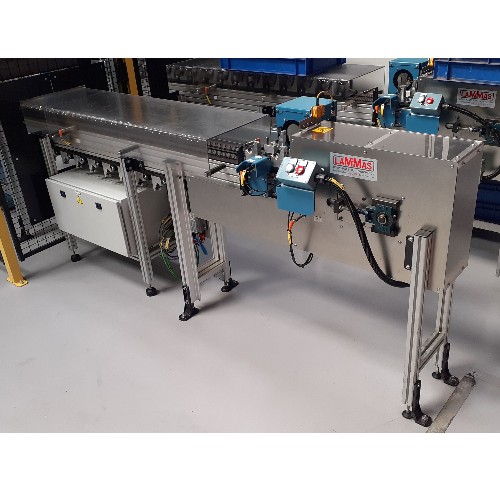

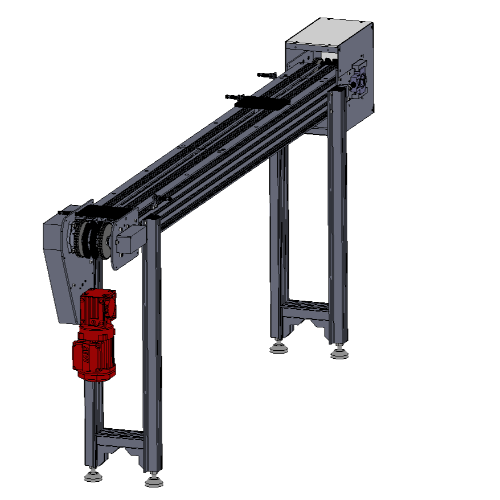

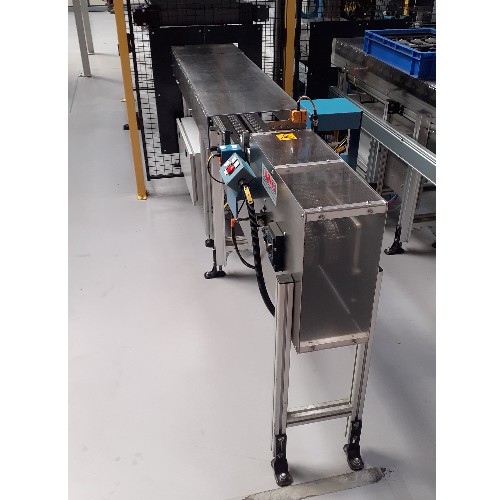

Light duty recirculating pallet accumulation conveyor
Description
Designed for small products, this conveyor can, with a single motor, supply assembly stations (manual and automated), filling or packaging. It is also often used as a buffer zone, cooling, cooking or palletizing corridor thanks to its high positioning precision.
The part holder helps to preserve the quality and appearance of the product and guarantees very good localization.
SYSTEM ADVANTAGE:
- Space saving
- Precise positioning: +/- 0.1mm
- Possibility of juxtaposing and superimposing several strands
- Evacuation possible in the chute without manipulator
- Foreign bodies falling during return
Technical details
- Aluminum profile structure
- Feed speeds: up to 25m/min
- SEW gear motor
- Slip torque limiter
- 3/8 triple chain
- Spring chain tensioners
- Pneumatic stops

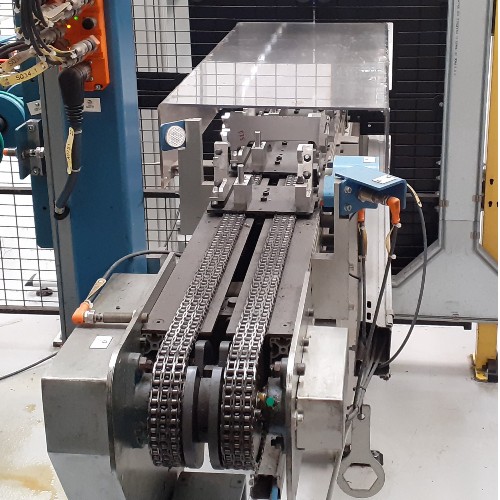

- Positive drive of the pallets by cams at the ends
- Maximum load: 3kg per pallet
- Pallet dimensions: Width 160 or 200 - Length 120 to 200
