TRANSLIGNE
Heavy duty pallet recirculating accumulation conveyor
Description

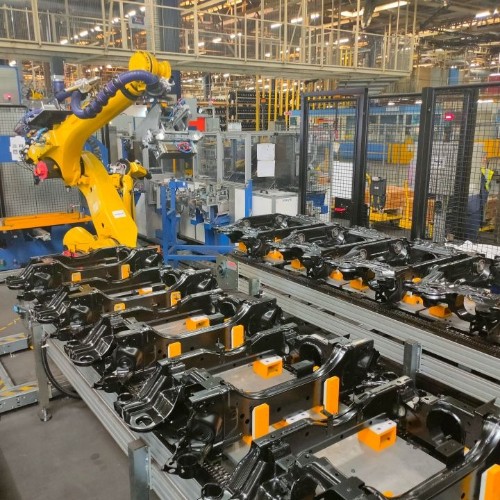

Designed for large products, this conveyor can supply assembly or welding machines with a single motor.

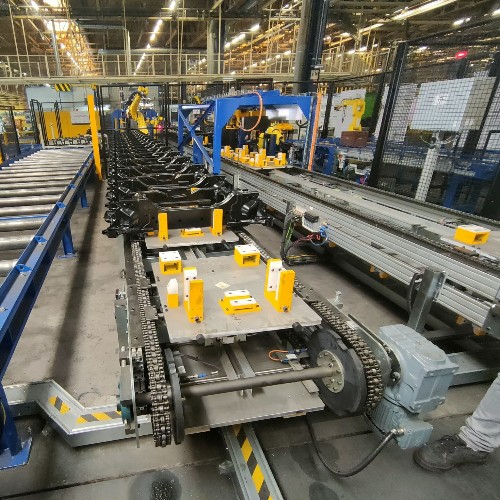

Very often used for the transport of bulky parts, the return of empty pallets underneath is a considerable advantage in terms of cost and space. In some cases, it is used to produce assembly "kits": an operator pre-positions components on the part carrier outside a secure enclosure and the conveyor takes them to the automatic station.
SYSTEM ADVANTAGE:
- Space saving
- Precise positioning: +/- 0.2mm
- Possibility of indexing
- Economical solution
Technical details
- Aluminum profile structure and mechanically welded supports
- Feed speeds: up to 10m/min
- SEW gear motor
- Slip torque limiter
- 5/8 triple chain with central roller
- Spring chain tensioners
- Hydraulically damped pneumatic stops
- Positive drive of the pallets by cams at the ends
- Maximum load: 120kg per pallet
