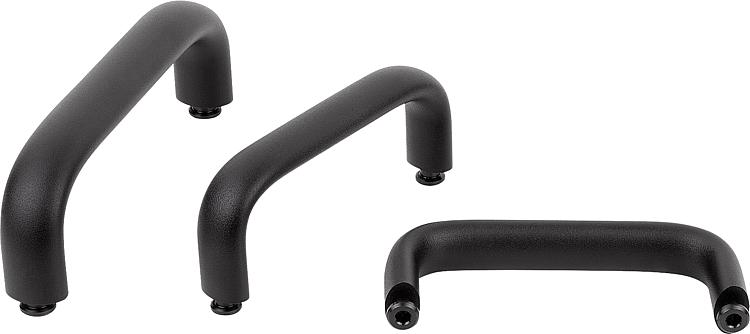

Removable oval handle
Description
Note: The handling handles are fixed via a system that can be snapped into the part.
Dismantling takes place in the absence of a load.Use:Insert the handling handle into the opening, until it is in abutment against the gripping washer.
Lock by pulling the handle parallel to the top.
The handle can only be operated vertically upwards.
Unlocking is carried out in the reverse order. Assembly: To fix the gripping washer, it is necessary to prepare the part.

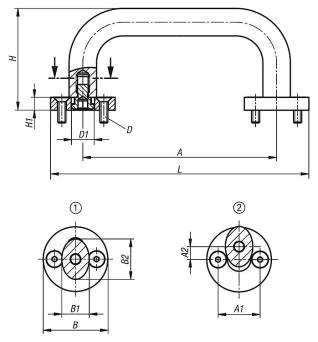

See assembly instructions diagram.
Technical details
Material: Handle in oval aluminum EN AW-6060. Pin in 1.0718 free-cutting steel. Locking washer in 1.0718 free-cutting steel. Finish: Pull handle with black powder coating. Tenon burnished. Burnished grip washer.
