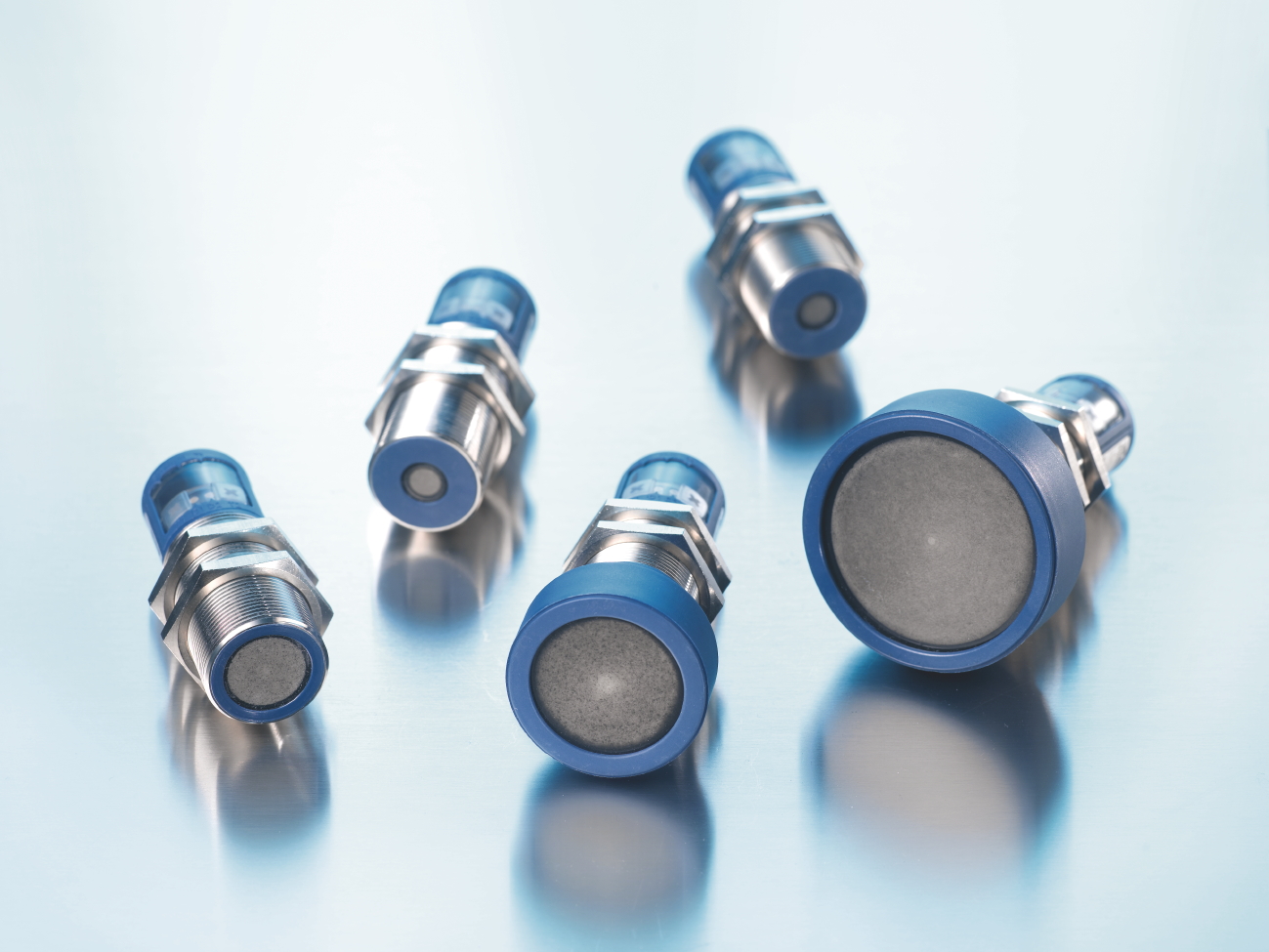

crm+ ultrasonic sensors

Highlights

• The ultrasonic transducer is protected by PEEK film for easy cleaning and high resistance
• Stainless steel case
• Digital display with direct display of measured values in mm/cm or %
• IO-Link interface to support the new industrial standard
• Digital adjustment on the digital display allows complete presetting of the sensor
• Automatic synchronization and multiplexed operation for simultaneous operation of up to ten sensors in a very small space

Essential features

• 1 Push-Pull switching output for switching pnp or npn
• 1 or 2 switching outputs in pnp version
• 4–20 mA and 0–10 V analog output with automatic switching between current and voltage output
• 5 detection ranges with a measuring range between 30 mm and 8 m
• Teach-in microsonic by push button T1 or T2
• Resolution 0.025 mm to 2.4 mm
• Temperature compensation
• Operating voltage 9–30 V
• LinkControl for sensor adjustment on the PC
