MICROSONIC

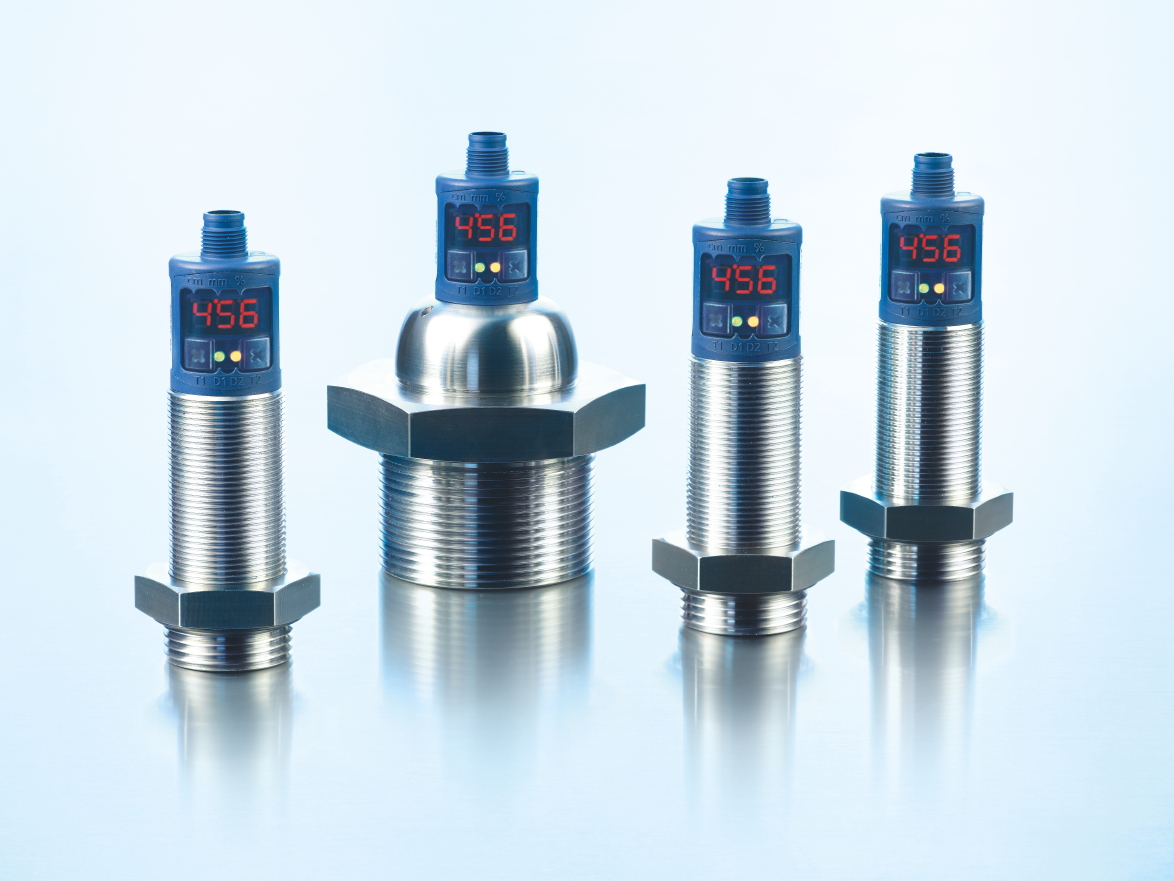

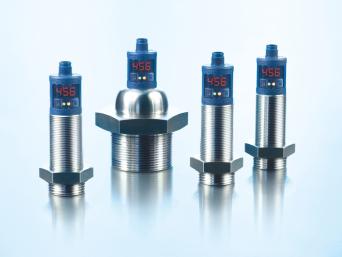

hps+ ultrasonic level sensors
Description
hps+ in a protective housing – when you need chemical and pressure resistant sensors.
Technical details
Highlights
- Possible use, at choice, under normal pressure or overpressure
- PTFE membrane for protection against aggressive media
- Stainless steel or optional PVDF housing for hps+340 for use in the food industry
- Housing sealed gasket with FFKM O-ring for maximum chemical resistance
- Digital display with direct display of measured values in mm/cm or %
- Digital adjustment on the digital display
- UL for Canadian and US safety standards
Essential features
- 2 switching outputs in pnp version
- Analog output plus 1 switching pnp output
- 4 detection ranges with a measuring range between 30 mm and 8 m
- Teach-in microsonic by push button T1 or T2
- Resolution 0.025 mm to 2.4 mm
- Temperature compensation
- Operating voltage 9–30 V
- LinkControl for sensor adjustment on the PC
Administrative documents
MICROSONIC
Automation / Mechatronics / DigitalDescription
microsonic est considéré un spécialiste dans le domaine des capteurs ultrasoniques en technologie d'automation industrielle. Depuis sa fondation en 1990 à Dortmund, le personnel des microsonic, se composant maintenant de plus de 160 personnes, a permis à la société sans interruption de d&eacut...
