MICROSONIC

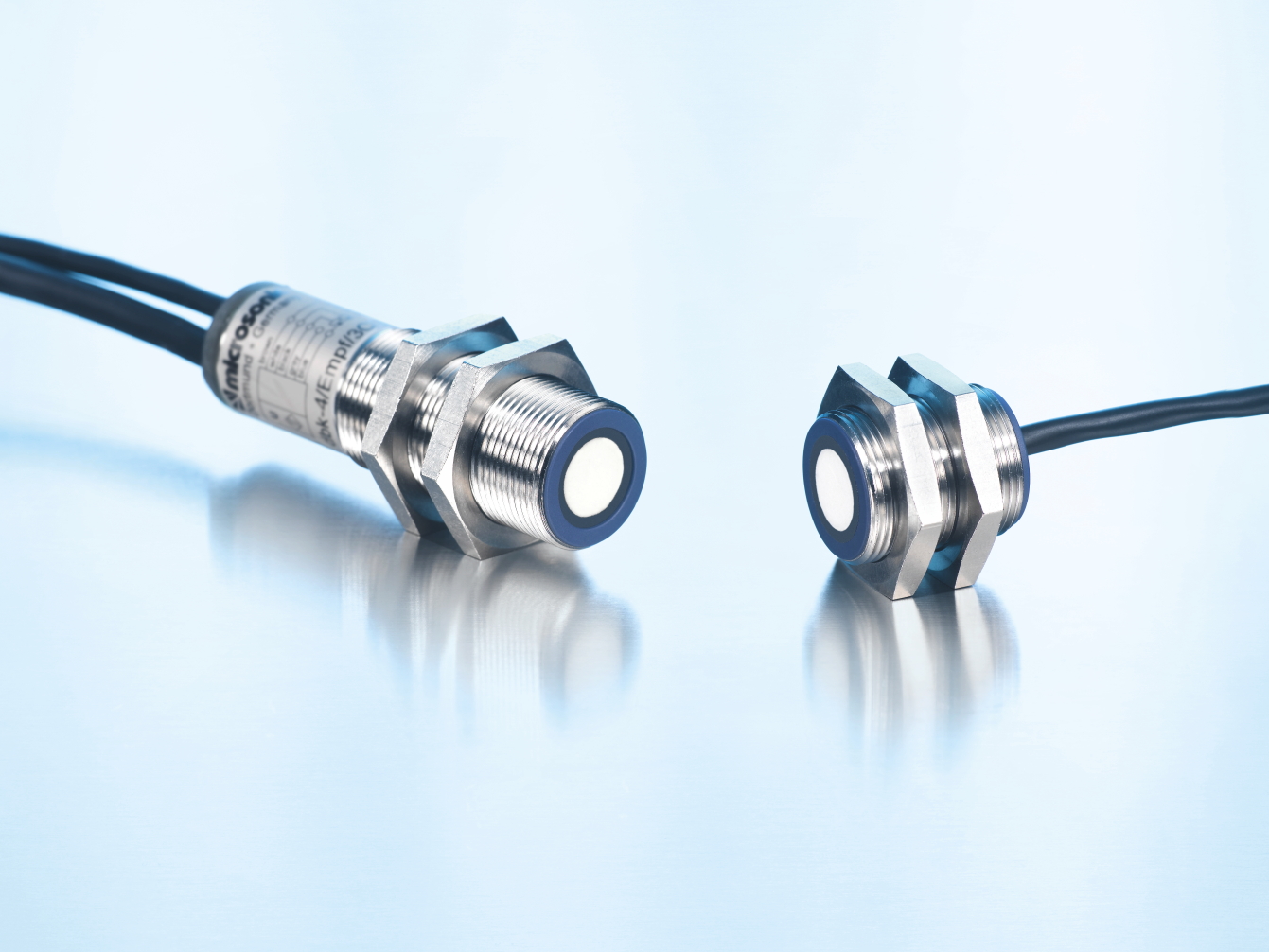

dbk+4 ultrasonic double sheet detector
Description
The dbk+4 ultrasonic double-sheet tester combines several variants of the previous model in a single device and thus opens up new, never-before-seen possibilities of use.
Technical details
Highlights
- 3 control inputs for external preselection of sensitivity on material, piloted input and Teach-in
- Teach-in option e.g. for probing with silicon bars glued with a water film
- Variant with 90° head for individual mounting situations
- Variant with M18 receiving transducer
- Variant with a very compact transmitter and receiver in the M12 threaded housing
Essential features
- Safe detection of single and double sheets
- No Teach-in required (Plug and play)
- Double sheet output and missing sheet
- The transmitter-receiver working distance can be selected between 20 to 60 mm
- Piloted input option for scale current applications
- Can be set with LinkControl
