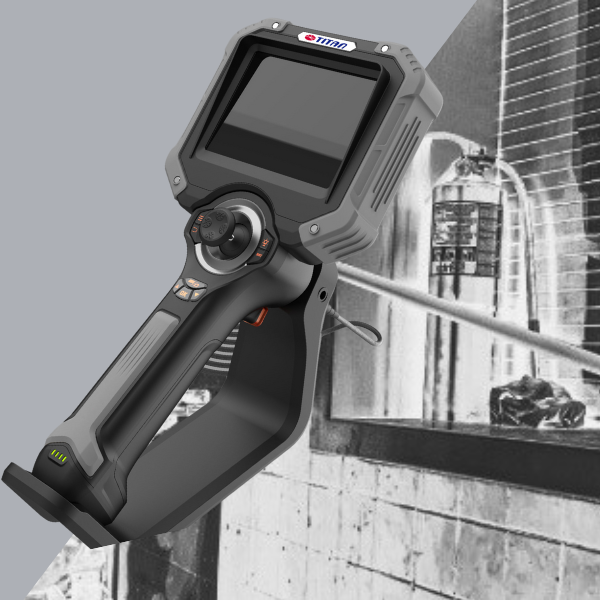

Thin Infrared Endoscope 4mm TITAN (TTS-TJ4.0IR)
Description
The TITAN TTS-TJ4.0IR industrial endoscope offers superior rendering quality thanks to its 720px high-definition quality. Check tight spaces with great precision and in complete darkness, thanks to its infrared vision. This endoscope is ideal for the darkest environments, and its 4mm slimness makes it versatile.
- Infrared vision
- All-round articulated head
- Joystick controls
- Thin 4mm camera
- Optical glass lighting
- HD photos and videos
- IP67 certified
- 5” touch screen
Technical details
Camera :
- Camera head : 4mm diameter
- Image sensor : 1/7” CMOS
- Resolution : 1280 x 720 px
- Focus : 60mm - infinite
- Field of view : 70°
- Lighting : IR 940nm with optical fiber
- Optics : optical glass
- Tightness : IP67
Control box :
- Dimensions : 15.5 cm x 13.9 cm x 5 cm
- Display : 5.0” LCD touchscreen (1024x768px)
- Battery : 2 x 3350mAh
- Storage : 64Gb max.
- Material : resistant ABS
- Charging current : 5V / 2A
- Brightness : manually adjustable
- White balance : adjustable
- Photo resolution : 1280 x 720px (.jpg)
- Video resolution : 1280 x 720px (.mov)
- Access keys : menu, playback, video, photo, brightness, x6 zoom
- Image selection : mirror image, preview, rotate, zoom, photo, brightness
- Input / output : C-type, HDMI, SD port
- Languages : 5 languages
- Net weight : 0.96kg
- Weight with case : 6kg
- Removable hose : no
Flexible camera :
- Camera head orientation : all directions
- Hose length : 150cm (or custom-made up to 300cm max.)
- Hose material : braided tungsten
Operating environment :
- Operating temperature :
- control box : -10°C ~ +40°C
- camera : -20°C ~ +60°C (preheating required below 1°C) (or 60°C - 90°C up to 10 minutes max.)
- Humidity : 15-90% frost-free
