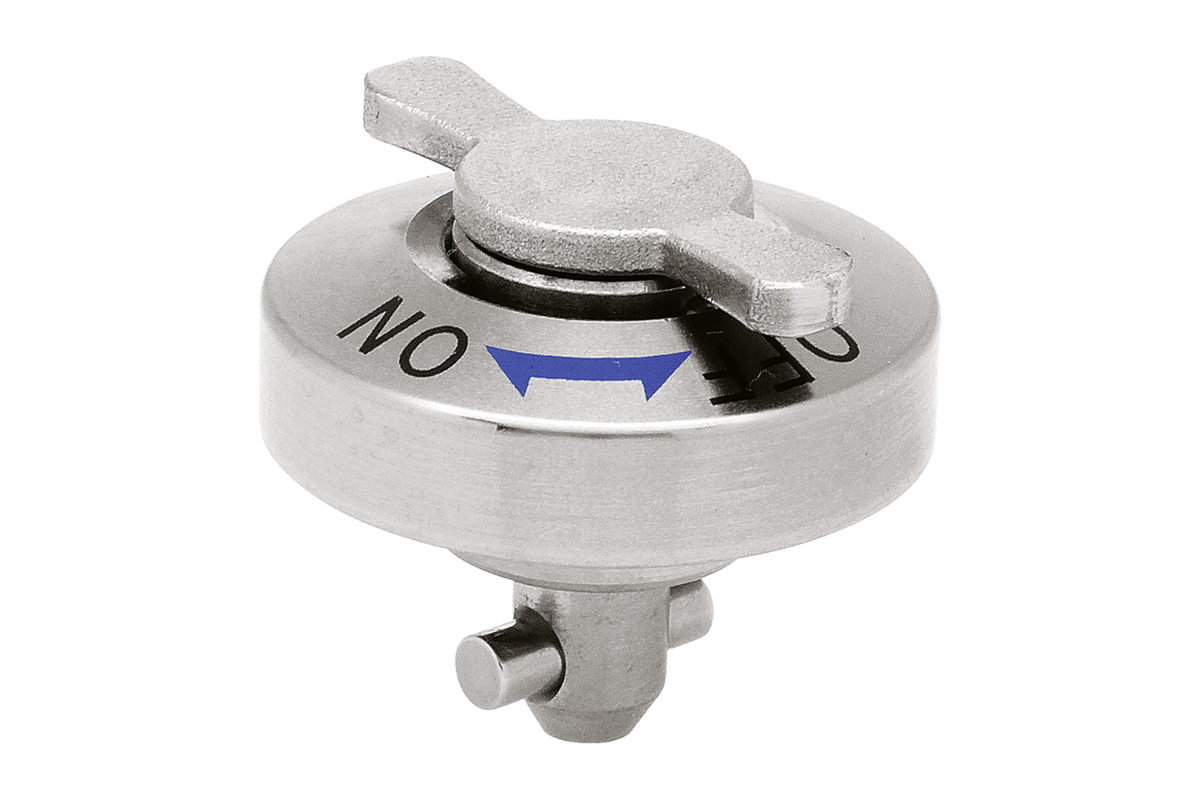

Flat quarter-turn lock
Description
Matter :
Stainless steel body.
Steel bolt.
Stainless steel finger.
Stainless steel button.
Finishing :
Polished body.
Nickel plated bolt.
Polished finger.
Polished stainless steel button.
Note:
M2 or M3 fixing screws supplied.

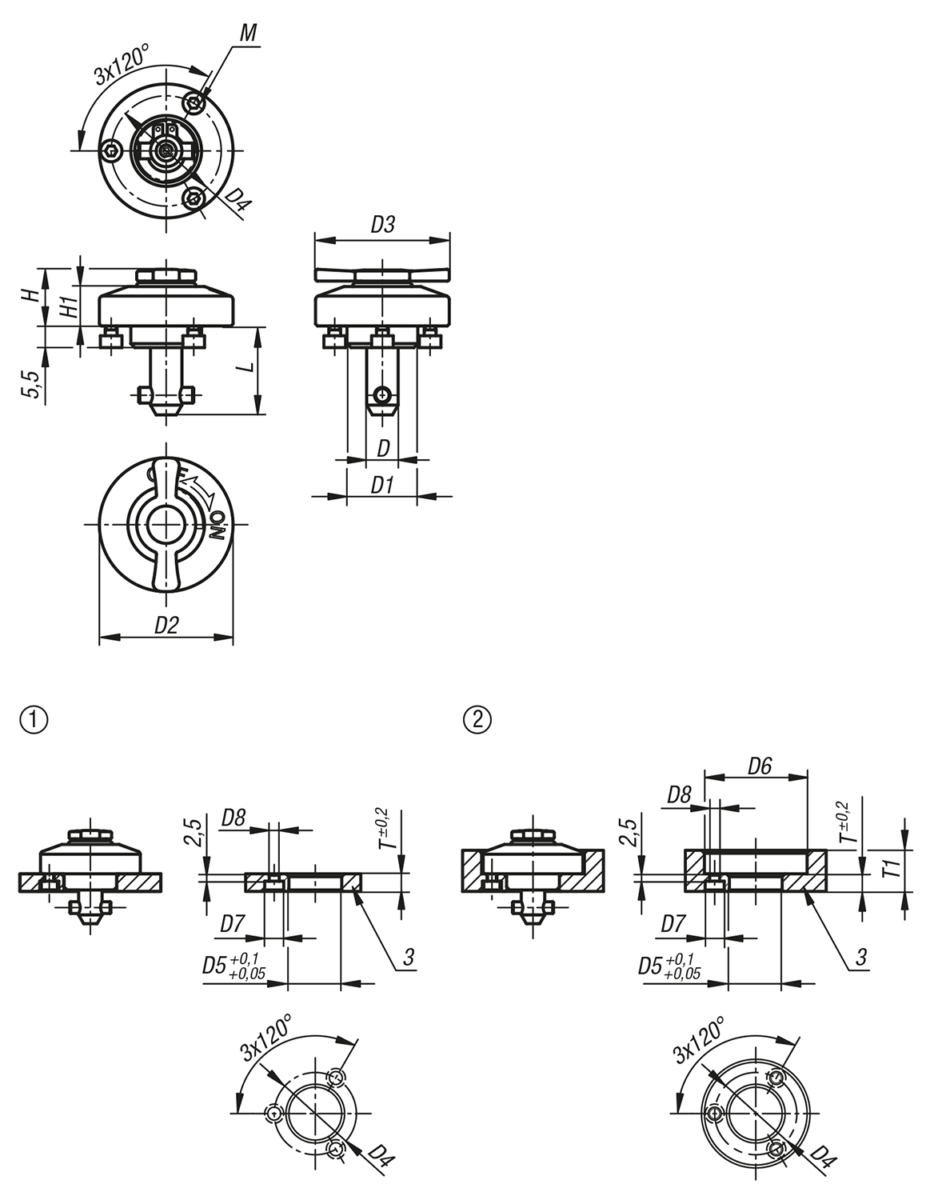

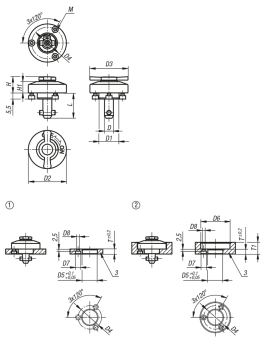

Mounting option 1 for 6 or 12 mm thick plates.
Mounting option 2 for plates with thickness from 12 to 20 mm.

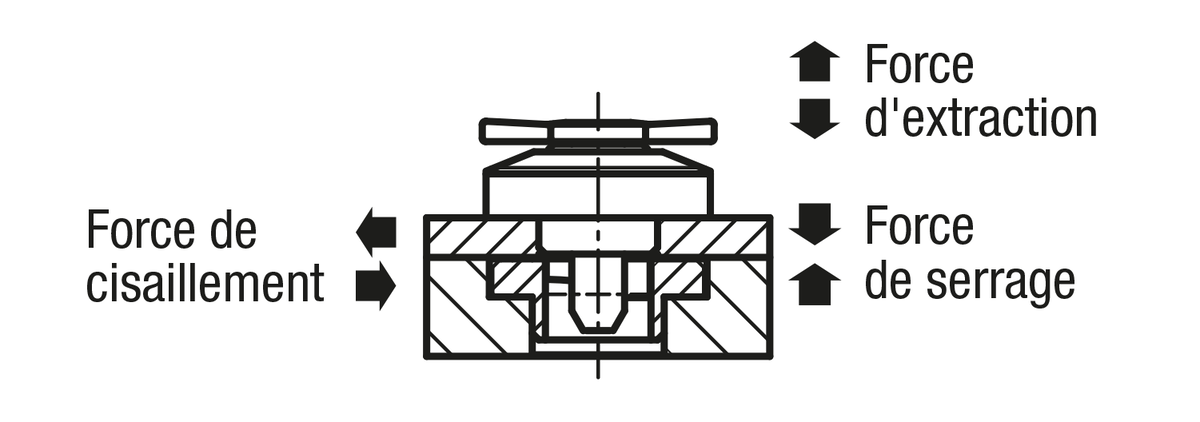

If the holding force is exceeded, a gap of more than 0.1 mm is observed between the plates.
Accessories :
Clamping plates 05592
Drawing indication:
1) Plate
