FURNESS CONTROLS

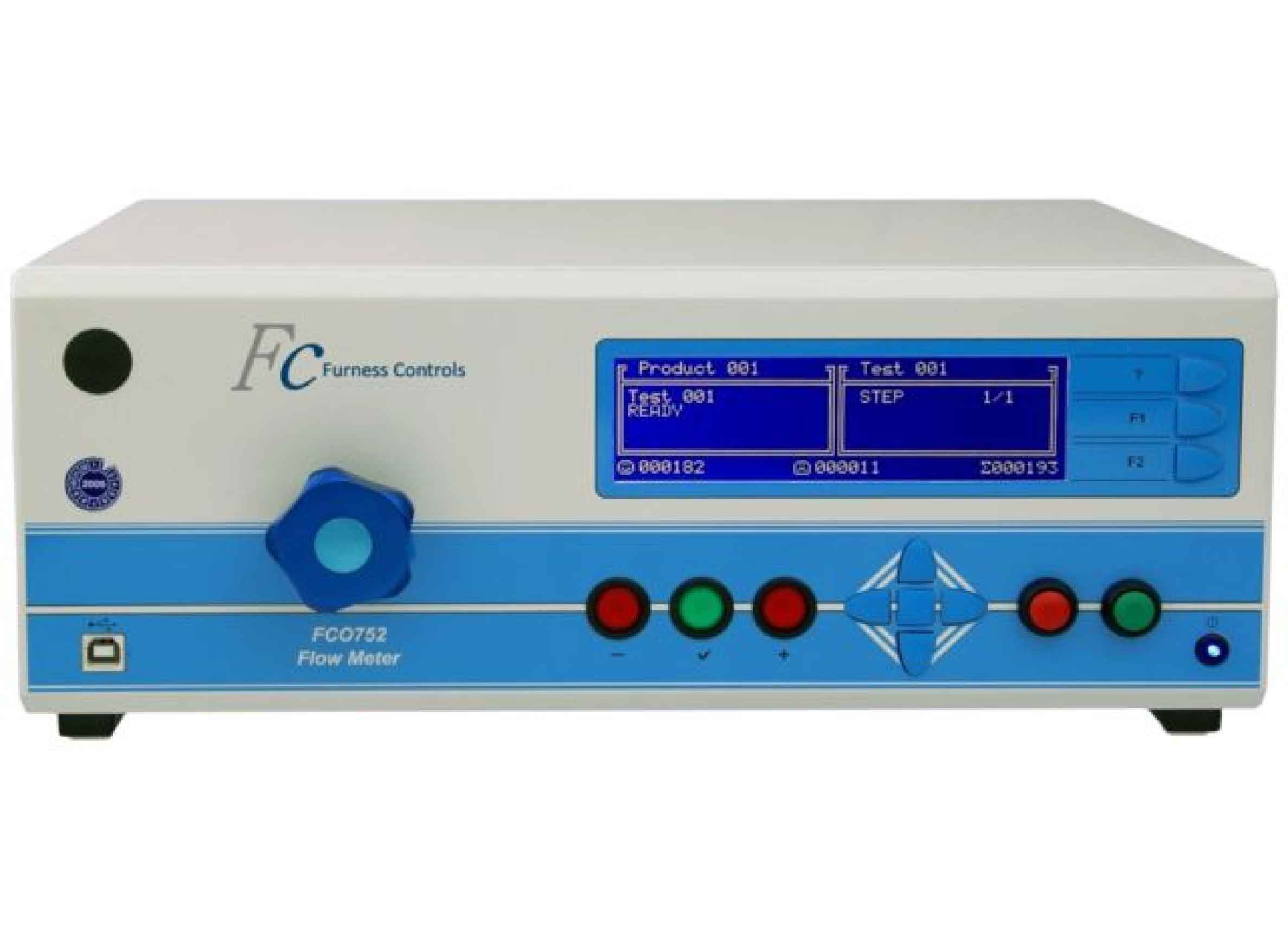

Laminar Element Flow Meter FC0752
The FCO752 is a high-end flowmeter for air and gas designed among other things for applications on production lines for the control of gas-powered appliances, injector flow rates, sealing of components and many more. applications requiring flow measurement. The FCO752 can be easily interfaced with a PLC or a computer but often the integrated programmable inputs/outputs are sufficient and dispense with the use of a PLC.
Using so-called laminar element technology proven for many years by Furness-Controls, the FCO752 also includes temperature and atmospheric pressure measurement to obtain a flow rate measurement reduced to very precise and high-quality standard conditions. resolution. The low pressure drop inherent in the design of our flowmeter minimizes interference with the measurement circuit.
- Graphic display of flow and pressure - Adjustment of 300 products with sequence of 16 tests - Flow from 0.001 ml/min up to 5,000 l/min - Robust steel case and optional rack mounting - Automatic and multi pressure regulator -regulators available - Communication via RS232, RS485, USB or Ethernet - Support for barcode reader - Double range of flow rate in option - Internal memory for data acquisition with USB key support - Programmable electrical and pneumatic inputs/outputs
