ROBA SBCplus
Description

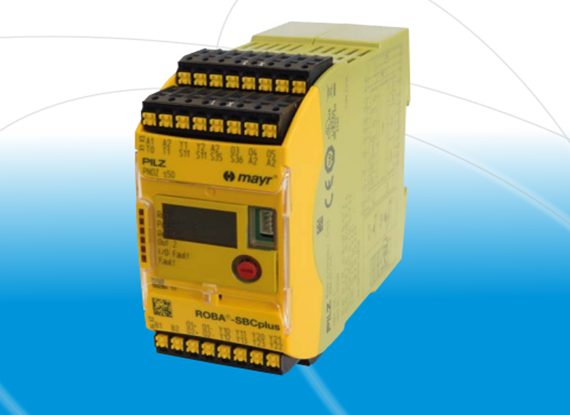

ROBA®-SBCplus The safe brake control system – usable up to safety category PLe and SIL CL3
Application :
The safe ROBA®-SBCplus brake control system is used to control and monitor 2 ROBA-stop® safety brakes, especially in applications that require the protection of people according to functional safety standards, e.g. ISO 13849 and IEC 62061.
Technical details
Electrical connection Supply voltage Logic 24 VDC -15% / +20% Supply voltage Power 24 VDC or 48 VDC -10% / +20% Inputs: Safety inputs 4 (Y10 – Y23) Standard inputs 4 (S35, S36, Y1, Y2) Monitoring times 30 ms ... 4000 ms Outputs: Supply voltage S11 24 V 0.1 A Feedback outputs 24 V 0.1 A O3 Error signal O4 Loop 1 status O5 Loop status 2 test cycle outputs T0, T1, 24 V, 0.1 A
