NUMALLIANCE
TE MEDIUM
Description
Main features
- From 0.79″ to 2×0.08″

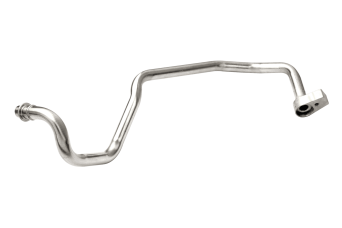

- Applications : Automotive H.V.A.C., ERG Tube, structure parts, fuel, seats
- Air et Space : hydraulic piping, circulation control wing, fuel, structure
- Main features : all electric benders
- Stackable multi-radii
- Draw bending with and without mandrel and roll bending
- Possibility to combine bending with complementary operations
Man / Machine Interface
- Industrial-Grade PC powered by proprietary software
- Multilingual dialog and programming interface on a 19″ touch screen
- Simulation program
- Additional I/O
- Internet connection: remote assistance and chat room
- Auto-corrective feedback from 3D-measuring devices
- Tool editor allows programming of complex parts
- Simulation tool to facilitate part set-up
- Program execution in slow motion
Technical details
Main features
- From 20 to 50×2 mm
- Application examples: Automotive HVAC (heating, ventilation, air conditioning) tubes, exhaust (EGR) tubes, structural parts, fuel, seats
- Aeronautics: hydraulic piping, traffic control wing, fuel, structures
- Electric Bending Machine
- Multi stackable shelves
- Bending by stretching with or without mandrel, and bending by rollers
- Easy integration into automated production cells
- Possibility of combining bending with complementary operations
Human Machine Interface
- Software for industrial PCs
- Multilingual dialogue and programming interface on 19″ touch screen
- Simulation program
- Additional I/O ports
- Internet connection: remote assistance and chat room
- Self-correction from a 3D measuring device
- The tool editor allows you to program complex parts
- Simulation tool to facilitate fine-tuning
- Program progress in slow motion
NUMALLIANCE
Sheetmetal, Metalforming, WeldingDescription
Founded in 1986, the NUMALLIANCE group is one of the world leaders in turnkey productivity solutions for the forming of wire, tube and flat . The company has been able to develop its know-how well beyond folding, bending and bending. Numalliance solutions can integrate secondary operations . For example, notching, cutting, punching, chamfering o...
