NUMALLIANCE

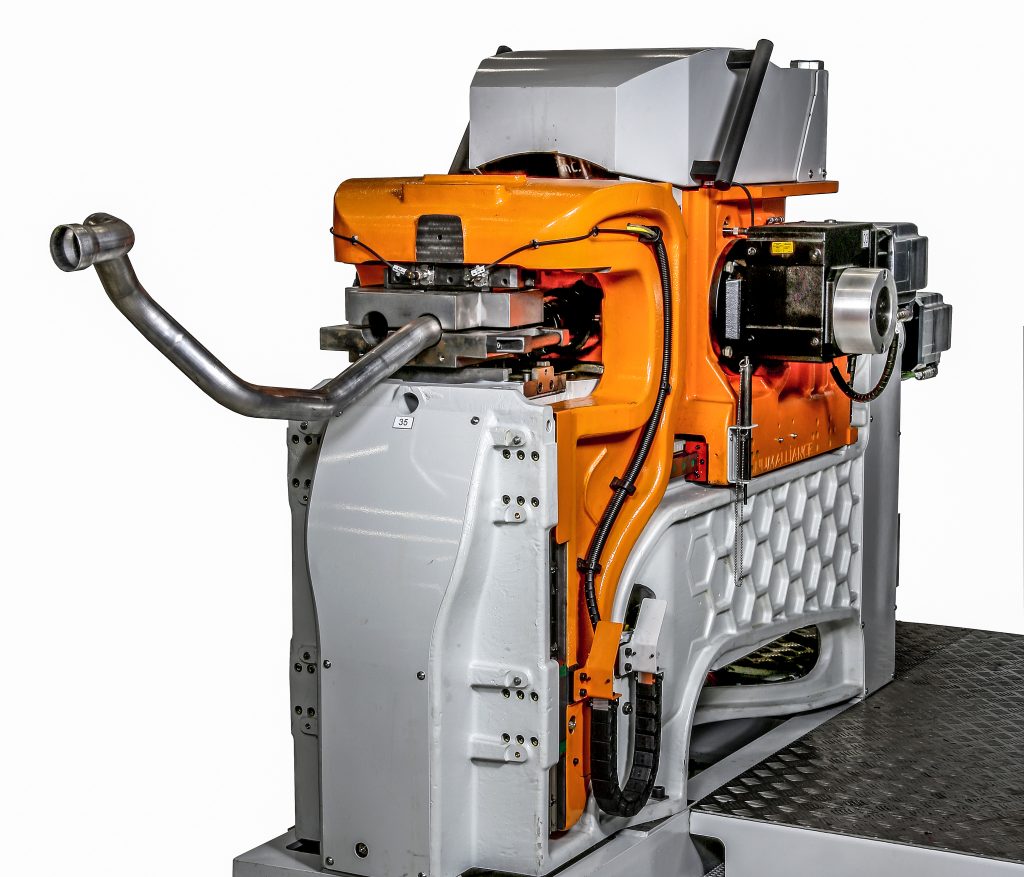

Numaform 5-8-12E

Description

Main features

Tube

Working force : 5 / 8 / 12

Full electric machine

Compact and easy integration into automatic cells

Forming before and after bending with easy access aroung the tooling

Work material : cooper, aluminium, steel, stainless steel, brass, titanium, inconel …

Large clamping tool opening

Userfriendly HMI

Man / Machine Interface

Industrial-Grade PC powered by proprietary software

Multilingual dialog and programming interface on a 19″ touch screen

Simulation program

Additional I/O

Internet connection: remote assistance and chat room

Auto-corrective feedback from 3D-measuring devices

Tool editor allows programming of complex parts

Simulation tool to facilitate part set-up

Program execution in slow motion

Technical details

Main features

Tube
Working force: 5 / 8 / 12 T
Fully electric machine
Compact and easy integration into automatic cells

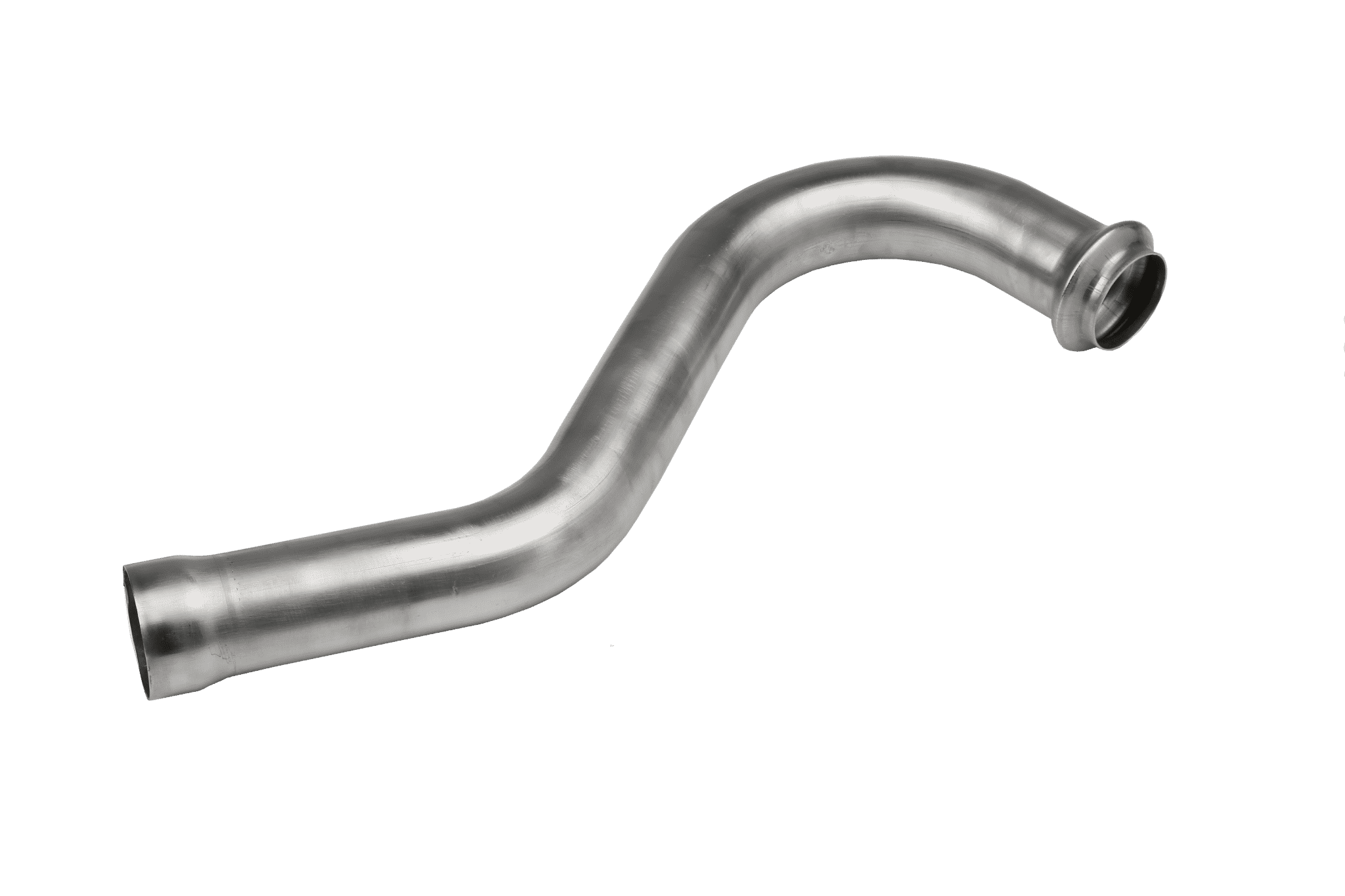

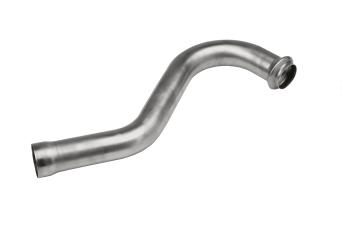

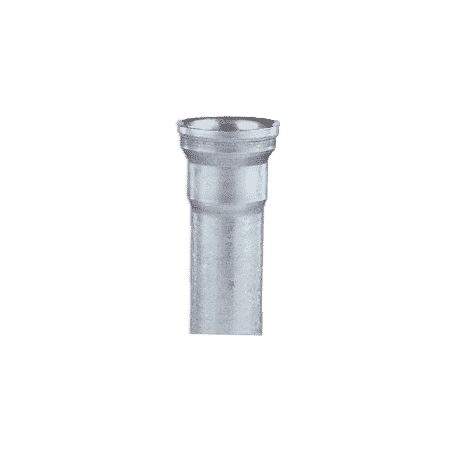

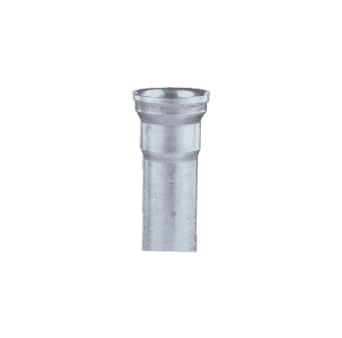

Forming before or after bending with easy access around the tooling
Working materials: copper, aluminum, steel, stainless steel, brass, titanium, inconel….
Large clamping tool opening
Easy-to-use HM interface

Human Machine Interface

Software for industrial PCs
Multilingual dialogue and programming interface on 19″ touch screen
Simulation program
Additional I/O ports
Internet connection: remote assistance and chat room
Self-correction from a 3D measuring device
The tool editor allows you to program complex parts
Simulation tool to facilitate fine-tuning
Program progress in slow motion

NUMALLIANCE

Sheetmetal, Metalforming, Welding

Description

Founded in 1986, the NUMALLIANCE group is one of the world leaders in turnkey productivity solutions for the forming of wire, tube and flat . The company has been able to develop its know-how well beyond folding, bending and bending. Numalliance solutions can integrate secondary operations . For example, notching, cutting, punching, chamfering o...
